RW416D

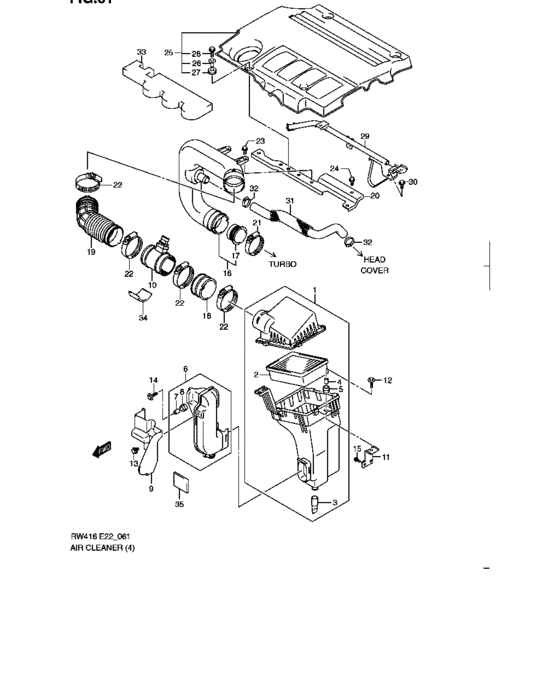

Air cleaner (RW419D) 32
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-79J50-000 | Cleaner assy, air |
| 2 | 13780-79J50-000 | Element |
| 3 | 13733-79J50-000 | Tube, drain |
| 4 | 13877-83E00-000 | COLLAR |
| 5 | 13878-83E00-000 | GROMMET |
| 6 | 13765-79J50-000 | Pipe, air suction |
| 9 | 13766-79J50-000 | Protector |
| 10 | 13800-79J50-000 | Sensor assy, maf |
| 11 | 13811-79J50-000 | Bracket |
| 12 | 09116-06208-000 | BOLT(6X30) |
| 13 | 09409-07332-000 | CLIP |
| 14 | 01550-0620A-000 | Bolt |
| 15 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 16 | 13880-79J51-000 | Pipe, air clnr outlet |
| 17 | 13885-79J50-000 | Insulator - Id:55 |
| 18 | 13881-79J50-000 | Hose, air clnr outlet no.1 |
| 19 | 13882-79J50-000 | Hose, air clnr outlet no.2 |
| 20 | 13883-79J50-000 | Bracket |
| 21 | 09402-70503-000 | CLAMP - Clamp,tank |
| 22 | 09402-82511-000 | CLAMP |
| 23 | 01550-0616A-000 | Bolt |
| 25 | 13170-79J50-000 | Cover, engine |
| 26 | 13172-79J50-000 | Spacer |
| 27 | 13173-79J50-000 | Cushion |
| 28 | 13174-54G00-000 | BOLT,ENG COVER |
| 29 | 13175-79J51-000 | Bracket |
| 30 | 01550-0612A-000 | Bolt |
| 31 | 11191-79J50-000 | Hose, breather |
| 32 | 09402-28511-000 | CLAMP |
| 33 | 13171-79J50-000 | Silencer, injector |
| 34 | 13884-79J50-000 | Protector, maf sensor |
| 35 | 11322-62J50-000 | Protector |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Air cleaner (RW419D) |
| 01550-0616A-000 | Bolt | Air cleaner (RW419D) |
| 01550-0620A-000 | Bolt | Air cleaner (RW419D) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Air cleaner (RW419D) |
| 09116-06208-000 | BOLT(6X30) | Air cleaner (RW419D) |
| 09402-28511-000 | CLAMP | Air cleaner (RW419D) |
| 09402-70503-000 | CLAMP - Clamp,tank | Air cleaner (RW419D) |
| 09402-82511-000 | CLAMP | Air cleaner (RW419D) |
| 09409-07332-000 | CLIP | Air cleaner (RW419D) |
| 11191-79J50-000 | Hose, breather | Air cleaner (RW419D) |
| 11322-62J50-000 | Protector | Air cleaner (RW419D) |
| 13170-79J50-000 | Cover, engine | Air cleaner (RW419D) |
| 13171-79J50-000 | Silencer, injector | Air cleaner (RW419D) |
| 13172-79J50-000 | Spacer | Air cleaner (RW419D) |
| 13173-79J50-000 | Cushion | Air cleaner (RW419D) |
| 13174-54G00-000 | BOLT,ENG COVER | Air cleaner (RW419D) |
| 13175-79J51-000 | Bracket | Air cleaner (RW419D) |
| 13700-79J50-000 | Cleaner assy, air | Air cleaner (RW419D) |
| 13733-79J50-000 | Tube, drain | Air cleaner (RW419D) |
| 13765-79J50-000 | Pipe, air suction | Air cleaner (RW419D) |
| 13766-79J50-000 | Protector | Air cleaner (RW419D) |
| 13780-79J50-000 | Element | Air cleaner (RW419D) |
| 13800-79J50-000 | Sensor assy, maf | Air cleaner (RW419D) |
| 13811-79J50-000 | Bracket | Air cleaner (RW419D) |
| 13877-83E00-000 | COLLAR | Air cleaner (RW419D) |
| 13878-83E00-000 | GROMMET | Air cleaner (RW419D) |
| 13880-79J51-000 | Pipe, air clnr outlet | Air cleaner (RW419D) |
| 13881-79J50-000 | Hose, air clnr outlet no.1 | Air cleaner (RW419D) |
| 13882-79J50-000 | Hose, air clnr outlet no.2 | Air cleaner (RW419D) |
| 13883-79J50-000 | Bracket | Air cleaner (RW419D) |
| 13884-79J50-000 | Protector, maf sensor | Air cleaner (RW419D) |
| 13885-79J50-000 | Insulator - Id:55 | Air cleaner (RW419D) |
