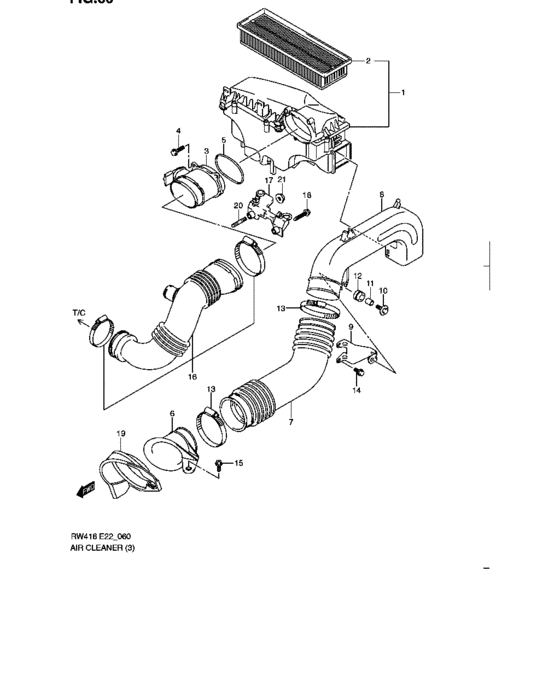

Air cleaner (RW416D)
21
| # | OEM | Part name |
|---|
| 1 |
13700-69K01-000 |
Cleaner assy, air |
| 2 |
13780-73J00-000 |
Element |
| 3 |
13800-69K00-000 |
Sensor assy, maf |
| 4 |
13805-69K00-000 |
Screw |
| 5 |
13806-69K00-000 |
O-ring |
| 6 |
13765-79J01-000 |
PIPE,AIR CLNR SUCTION |
| 7 |
13766-69K50-000 |
Hose, air suction |
| 8 |
13773-69K50-000 |
Pipe, air inlet |
| 9 |
13776-69K50-000 |
Bracket, air pipe |
| 10 |
09116-06167-000 |
BOLT(6X20) - Bolt (6x20) |
| 11 |
09180-07019-000 |
SPACER(7.2X10X11.5) |
| 12 |
09320-10048-000 |
CUSHION |
| 13 |
09402-82511-000 |
CLAMP |
| 14 |
01550-0610A-000 |
Bolt |
| 15 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 16 |
13950-69K01-000 |
Pipe, t/c intake air |
| 17 |
13710-73J03-000 |
Bracket, air clnr |
| 18 |
11164-69K00-000 |
Bolt |
| 19 |
13764-69K50-000 |
Cover, suction pipe |
| 20 |
13953-69K00-000 |
Stud bolt |
| 21 |
13966-67G00-000 |
NUT,M6 |
| OEM |
Part name |
Category |
| 01550-0610A-000 |
Bolt |
Air cleaner (RW416D) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Air cleaner (RW416D) |
| 09116-06167-000 |
BOLT(6X20) - Bolt (6x20) |
Air cleaner (RW416D) |
| 09180-07019-000 |
SPACER(7.2X10X11.5) |
Air cleaner (RW416D) |
| 09320-10048-000 |
CUSHION |
Air cleaner (RW416D) |
| 09402-82511-000 |
CLAMP |
Air cleaner (RW416D) |
| 11164-69K00-000 |
Bolt |
Air cleaner (RW416D) |
| 13700-69K01-000 |
Cleaner assy, air |
Air cleaner (RW416D) |
| 13710-73J03-000 |
Bracket, air clnr |
Air cleaner (RW416D) |
| 13764-69K50-000 |
Cover, suction pipe |
Air cleaner (RW416D) |
| 13765-79J01-000 |
PIPE,AIR CLNR SUCTION |
Air cleaner (RW416D) |
| 13766-69K50-000 |
Hose, air suction |
Air cleaner (RW416D) |
| 13773-69K50-000 |
Pipe, air inlet |
Air cleaner (RW416D) |
| 13776-69K50-000 |
Bracket, air pipe |
Air cleaner (RW416D) |
| 13780-73J00-000 |
Element |
Air cleaner (RW416D) |
| 13800-69K00-000 |
Sensor assy, maf |
Air cleaner (RW416D) |
| 13805-69K00-000 |
Screw |
Air cleaner (RW416D) |
| 13806-69K00-000 |
O-ring |
Air cleaner (RW416D) |
| 13950-69K01-000 |
Pipe, t/c intake air |
Air cleaner (RW416D) |
| 13953-69K00-000 |
Stud bolt |
Air cleaner (RW416D) |
| 13966-67G00-000 |
NUT,M6 |
Air cleaner (RW416D) |
