Search › Model › RW415

RW415

Suzuki SX4 · 4,495 parts · 297 categories

4,495 items

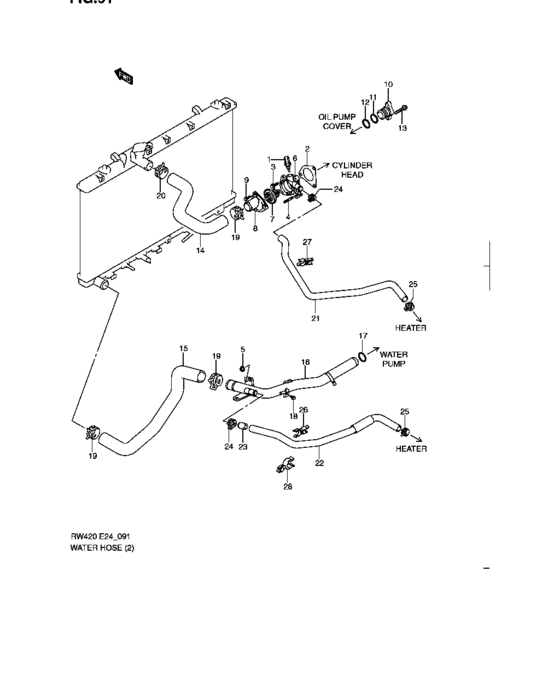

Water hose (TYPE 4,5:M15A,M16A) 29

#	OEM	Part name
1	13650-73H00-000	Sensor,water Temp
2	17699-54LA0-000	GASKET,WATER OUTLET CAP
3	01550-0825A-000	Bolt
4	01421-0825A-000	BOLT,STUD
5	08316-1008A-000	NUT - Nut, idle gear shaft
6	17690-54LA0-000	CASE,THERMOSTAT
7	17670-66D01-000	Thermostat,wtr(88?c)
7	17670-66M00-000	THERMOSTAT,WATER
8	17561-54LA0-000	CAP,WATER THERMOSTAT
9	01550-0620A-000	Bolt
10	17581-69G00-000	CAP,WATER OUTLET
11	17582-54D00-000	O-RING,NO.1 D:3.5 ID:30.7
12	17583-54D00-000	O-RING,NO.2 D:3.8 ID:27.7
13	01550-0845A-000	Bolt - Bolt, oil pump (s)
14	17852-54LA0-000	HOSE,RADIATOR INLET
15	17854-54LA0-000	HOSE,RADIATOR OUTLET
16	17840-54LA0-000	PIPE,WATER INLET
17	09280-28008-000	O RING(D:3.5,ID:27.7)
18	01550-0612A-000	Bolt
19	09401-35403-000	CLIP
21	17871-54LA0-000	HOSE,HEATER INLET
21	17871-54LA1-000	HOSE,HEATER INLET
22	17872-54LA0-000	HOSE,HEATER OUTLET
22	17872-54LA1-000	HOSE,HEATER OUTLET
23	17879-54LA0-000	SPACER,HTR HOSE
24	09401-21405-000	CLIP
26	09408-00166-000	CLAMP
27	09408-00186-000	CLAMP
28	09408-00202-000	CLAMP

OEM	Part name	Category
01421-0825A-000	BOLT,STUD	Water hose (TYPE 4,5:M15A,M16A)
01550-0612A-000	Bolt	Water hose (TYPE 4,5:M15A,M16A)
01550-0620A-000	Bolt	Water hose (TYPE 4,5:M15A,M16A)
01550-0825A-000	Bolt	Water hose (TYPE 4,5:M15A,M16A)
01550-0845A-000	Bolt - Bolt, oil pump (s)	Water hose (TYPE 4,5:M15A,M16A)
08316-1008A-000	NUT - Nut, idle gear shaft	Water hose (TYPE 4,5:M15A,M16A)
09280-28008-000	O RING(D:3.5,ID:27.7)	Water hose (TYPE 4,5:M15A,M16A)
09401-21405-000	CLIP	Water hose (TYPE 4,5:M15A,M16A)
09401-35403-000	CLIP	Water hose (TYPE 4,5:M15A,M16A)
09408-00166-000	CLAMP	Water hose (TYPE 4,5:M15A,M16A)
09408-00186-000	CLAMP	Water hose (TYPE 4,5:M15A,M16A)
09408-00202-000	CLAMP	Water hose (TYPE 4,5:M15A,M16A)
13650-73H00-000	Sensor,water Temp	Water hose (TYPE 4,5:M15A,M16A)
17561-54LA0-000	CAP,WATER THERMOSTAT	Water hose (TYPE 4,5:M15A,M16A)
17581-69G00-000	CAP,WATER OUTLET	Water hose (TYPE 4,5:M15A,M16A)
17582-54D00-000	O-RING,NO.1 D:3.5 ID:30.7	Water hose (TYPE 4,5:M15A,M16A)
17583-54D00-000	O-RING,NO.2 D:3.8 ID:27.7	Water hose (TYPE 4,5:M15A,M16A)
17670-66D01-000	Thermostat,wtr(88?c)	Water hose (TYPE 4,5:M15A,M16A)
17670-66M00-000	THERMOSTAT,WATER	Water hose (TYPE 4,5:M15A,M16A)
17690-54LA0-000	CASE,THERMOSTAT	Water hose (TYPE 4,5:M15A,M16A)
17699-54LA0-000	GASKET,WATER OUTLET CAP	Water hose (TYPE 4,5:M15A,M16A)
17840-54LA0-000	PIPE,WATER INLET	Water hose (TYPE 4,5:M15A,M16A)
17852-54LA0-000	HOSE,RADIATOR INLET	Water hose (TYPE 4,5:M15A,M16A)
17854-54LA0-000	HOSE,RADIATOR OUTLET	Water hose (TYPE 4,5:M15A,M16A)
17871-54LA0-000	HOSE,HEATER INLET	Water hose (TYPE 4,5:M15A,M16A)
17871-54LA1-000	HOSE,HEATER INLET	Water hose (TYPE 4,5:M15A,M16A)
17872-54LA0-000	HOSE,HEATER OUTLET	Water hose (TYPE 4,5:M15A,M16A)
17872-54LA1-000	HOSE,HEATER OUTLET	Water hose (TYPE 4,5:M15A,M16A)
17879-54LA0-000	SPACER,HTR HOSE	Water hose (TYPE 4,5:M15A,M16A)
