Search › Model › RW415
RW415

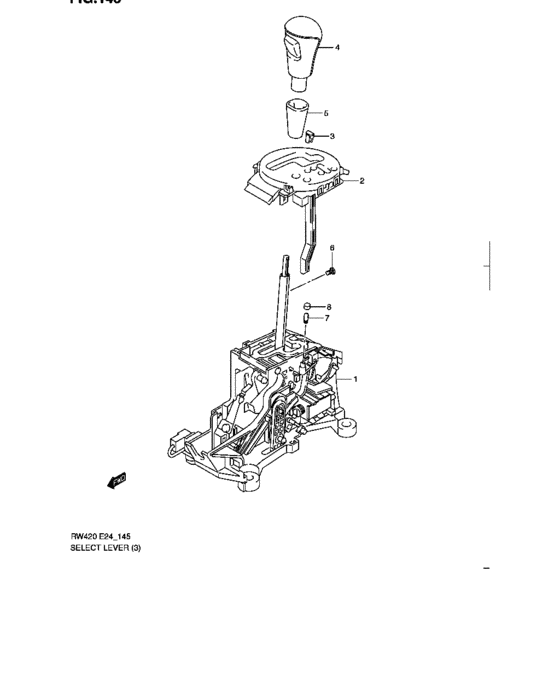

Select lever (CVT:LHD) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 28110-54L31-000 | Lever assy,select |
| 1 | 28110-54L32-000 | LEVER ASSY,SELECT |
| 2 | 28150-54L30-000 | INDICATOR ASSY,SELECT LEVER |
| 3 | 28157-54L30-000 | CAP,INDICATOR |
| 4 | 28160-54L10-5PK | KNOB ASSY,SELECT LEVER |
| 5 | 28162-54L10-0PG | COVER,SELECT LEVER KNOB |
| 6 | 28177-81J10-000 | SCREW,SELECT LEVER KNOB |
| 7 | 28181-54L10-000 | BULB,ILLUM LAMP |
| 8 | 28182-54L10-000 | FILTER,ILLUM LAMP BULB |
| OEM | Part name | Category |
|---|---|---|
| 28110-54L31-000 | Lever assy,select | Select lever (CVT:LHD) |
| 28110-54L32-000 | LEVER ASSY,SELECT | Select lever (CVT:LHD) |
| 28150-54L30-000 | INDICATOR ASSY,SELECT LEVER | Select lever (CVT:LHD) |
| 28157-54L30-000 | CAP,INDICATOR | Select lever (CVT:LHD) |
| 28160-54L10-5PK | KNOB ASSY,SELECT LEVER | Select lever (CVT:LHD) |
| 28162-54L10-0PG | COVER,SELECT LEVER KNOB | Select lever (CVT:LHD) |
| 28177-81J10-000 | SCREW,SELECT LEVER KNOB | Select lever (CVT:LHD) |
| 28181-54L10-000 | BULB,ILLUM LAMP | Select lever (CVT:LHD) |
| 28182-54L10-000 | FILTER,ILLUM LAMP BULB | Select lever (CVT:LHD) |
