RW415

Suzuki SX4 · 4,495 parts · 297 categories
RW415 ×

← Back to categories

4,495 items

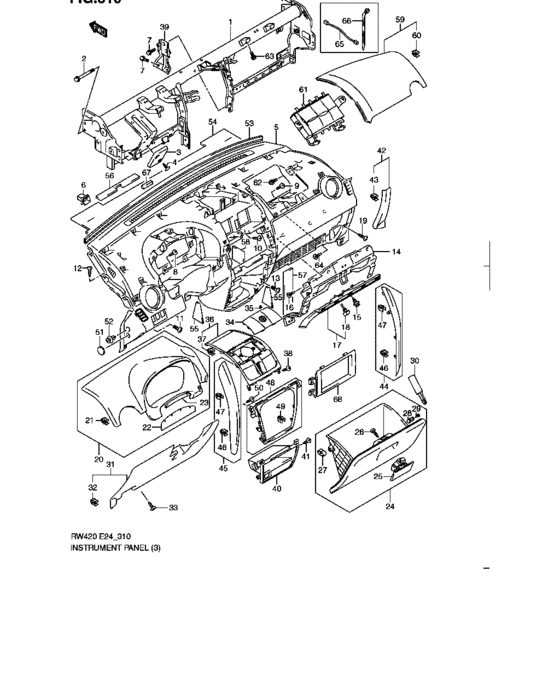

Instrument panel (TYPE 4,5:LHD) 59
#OEMPart name
1 73200-80J10-000 MEMBER,STRG SUPPORT
2 73291-79J10-000 BOLT,STRG SPRT MBR SIDE
3 73812-79J00-000 ABSORBER,DRIVER KNEE BOLSTER
4 09409-08321-5ES CLIP(BLACK)
5 73111-80J12-P4Z PANEL,INSTR MAIN
6 73123-51K00-000 SOCKET,I/P PIN
7 01551-0816C-000 Bolt
8 03241-0512A-000 SCREW
14 73450-80J10-000 PANEL,ASST KNEE BOLSTER
15 09409-06322-P4Z CLIP(GRAY)
16 03541-0516A-000 SCREW
17 73840-80J10-P4Z COVER,GLOVE BOX UPPER
18 73461-54G00-000 CUSHION,GLOVE BOX LID
20 73310-80J10-P4Z PANEL,INSTR CLST
21 09409-08326-000 CLIP
22 73313-80J00-000 BLIND,STRG COLUMN HOLE
23 73314-62J00-000 SEAL,I/P CLUSTER
24 73410-80J11-P4Z BOX,GLOVE
24 73410-80J50-P4Z BOX,GLOVE
24 73410-80J50-V6N BOX,GLOVE
25 73430-63J02-P4Z LOCK,GLV BOX
25 73430-63J02-V6N LOCK,GLV BOX
26 03541-0412A-000 SCREW - Screw, speedometer
27 73413-63J00-000 CUSHION,GLOVE BOX
28 73422-50J01-000 Adapter,glove box damper
28 73422-57L00-000 ADAPTER,GLOVE BOX DAMPER
30 73440-50J00-000 Damper comp,glove box
30 73440-50J01-000 DAMPER,GLOVE BOX
31 73811-80J10-P4Z COVER,STRG COLUMN HOLE
31 73811-80J10-V6N COVER,STRG COLUMN HOLE
33 03241-0516A-000 SCREW
34 73822-80J10-P4Z COVER,I/P CTR SPKR
35 09409-08342-000 CLIP
36 73823-80J10-P4Z GARNISH,I/P CTR SPKR
39 73261-80J00-000 BRACE,STRG SPRT MBR LWR
40 73830-80J10-5PK BOX,I/P CTR LOWER
42 73842-79J10-P4Z COVER,GLOVE BOX SIDE
42 73842-79J10-V6N COVER,GLOVE BOX SIDE
44 73851-80J10-ZFG ORNAMENT,I/P CENTER,R
45 73852-80J10-ZFG ORNAMENT,I/P CENTER,L
47 09409-08339-000 CLIP
48 73824-79J00-ZCA GARNISH,CTR LWR
51 73871-73H00-P4Z CAP,I/P SIDE
52 09409-06322-5PK CLIP(BLACK) - Clip (black)
53 73121-80J10-000 SILENCER,I/P TOP
54 73141-80J00-000 SILENCER,I/P UPPER
55 73144-80J00-000 SILENCER,I/P CENTER SIDE
56 73145-80J00-000 SILENCER,I/P UPPER FR
57 73146-80J00-000 SILENCER,I/P ASSISTANT
58 75854-80J00-000 SILENCER,I/P DRIVER
59 73910-80J10-P4Z DOOR ASSY,PASS A/B
61 73920-80J00-000 HOUSING ASSY,PAB
62 09128-06073-000 SCREW(6X10)
65 36691-79J00-000 WIRE,A/B
66 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
67 73131-79J00-000 CUSHION,I/P CTR UPR
68 73821-80J00-5PK GARNISH,I/P CTR
68 73821-79J00-5PK GARNISH,I/P CTR
68 73821-80JB0-ZCA GARNISH,I/P CTR
