Search › Model › RW415
RW415

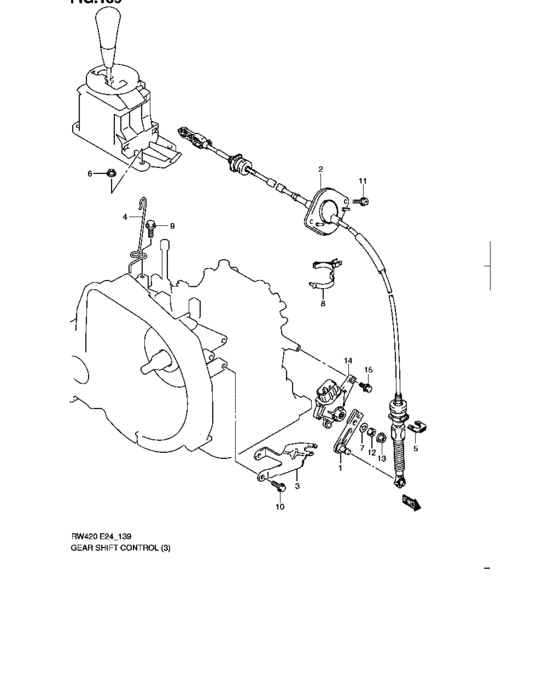

Gear shift control 18
| # | OEM | Part name |
|---|---|---|
| 1 | 25970-79J10-000 | LEVER,MANUAL SLT |
| 2 | 28210-79J10-000 | CABLE ASSY,SELECT |
| 2 | 28210-54L10-000 | CABLE ASSY,SELECT |
| 3 | 28221-79J10-000 | BRACKET,SELECT CABLE |
| 3 | 28221-54L10-000 | BRACKET,SELECT CABLE |
| 4 | 28225-55G10-000 | CLAMP,SELECT CABLE |
| 4 | 28225-54L10-000 | CLAMP,SELECT CABLE |
| 5 | 29365-73J00-000 | CLIP,GEAR CONT CABLE NO.2 |
| 6 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 7 | 09162-08008-000 | WASHER,LOCK - Lock washer |
| 8 | 09408-00222-000 | CLAMP |
| 9 | 01550-0812A-000 | Bolt |
| 10 | 01550-0816A-000 | Bolt - Bolt, rear |
| 11 | 02162-0620C-000 | SCREW |
| 12 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 13 | 08361-3508A-000 | NUT |
| 14 | 37720-55G10-000 | SWITCH,SHIFT |
| 15 | 24896-79C10-000 | BOLT,SHIFT SWITCH |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | Gear shift control |
| 01550-0816A-000 | Bolt - Bolt, rear | Gear shift control |
| 02162-0620C-000 | SCREW | Gear shift control |
| 08310-0008A-000 | NUT - Nut, bead stopper | Gear shift control |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Gear shift control |
| 08361-3508A-000 | NUT | Gear shift control |
| 09162-08008-000 | WASHER,LOCK - Lock washer | Gear shift control |
| 09408-00222-000 | CLAMP | Gear shift control |
| 24896-79C10-000 | BOLT,SHIFT SWITCH | Gear shift control |
| 25970-79J10-000 | LEVER,MANUAL SLT | Gear shift control |
| 28210-54L10-000 | CABLE ASSY,SELECT | Gear shift control |
| 28210-79J10-000 | CABLE ASSY,SELECT | Gear shift control |
| 28221-54L10-000 | BRACKET,SELECT CABLE | Gear shift control |
| 28221-79J10-000 | BRACKET,SELECT CABLE | Gear shift control |
| 28225-54L10-000 | CLAMP,SELECT CABLE | Gear shift control |
| 28225-55G10-000 | CLAMP,SELECT CABLE | Gear shift control |
| 29365-73J00-000 | CLIP,GEAR CONT CABLE NO.2 | Gear shift control |
| 37720-55G10-000 | SWITCH,SHIFT | Gear shift control |
