RW415

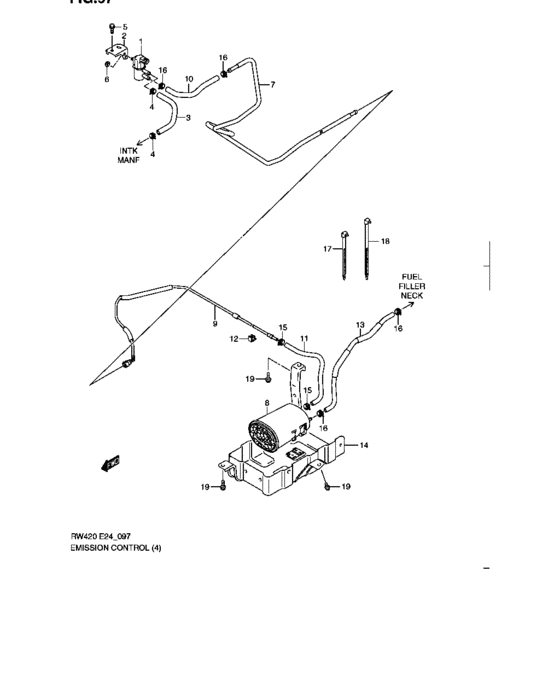

Emission control (J20B) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 18117-78K00-000 | VALVE,EVAP CSTR PURGE |
| 2 | 18417-80J00-000 | BRACKET,VSV |
| 3 | 18564-57L00-000 | HOSE,PURGE VSV TO INMF |
| 4 | 09401-12404-000 | CLIP |
| 5 | 01550-0612A-000 | Bolt |
| 6 | 08316-1006A-000 | NUT |
| 7 | 18351-79J10-000 | PIPE,PURGE |
| 7 | 18351-79J00-000 | PIPE,PURGE |
| 8 | 18560-76A31-000 | CANISTER |
| 9 | 18561-80J10-000 | PIPE,CANISTER PURGE |
| 10 | 18565-54L10-000 | HOSE,PURGE PIPE TO VSV |
| 10 | 18565-54L00-000 | HOSE,PURGE PIPE TO VSV |
| 11 | 18562-80J00-000 | HOSE,CSTR PURGE CSTR TO PIPE |
| 12 | 18568-80J10-000 | CLAMP,NYLON PIPE |
| 13 | 18569-80J10-000 | PIPE,CSTR AIR SUCTION |
| 14 | 18570-80J10-000 | Bracket comp,canister |
| 14 | 18570-80J20-000 | BRACKET,CANISTER |
| 15 | 09401-11419-000 | CLIP |
| 17 | 09407-13402-000 | CLAMP(L:130) |
| 18 | 09407-29402-000 | CLAMP,L:300 |
| 19 | 01551-0816C-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Emission control (J20B) |
| 01551-0816C-000 | Bolt | Emission control (J20B) |
| 08316-1006A-000 | NUT | Emission control (J20B) |
| 09401-11419-000 | CLIP | Emission control (J20B) |
| 09401-12404-000 | CLIP | Emission control (J20B) |
| 09407-13402-000 | CLAMP(L:130) | Emission control (J20B) |
| 09407-29402-000 | CLAMP,L:300 | Emission control (J20B) |
| 18117-78K00-000 | VALVE,EVAP CSTR PURGE | Emission control (J20B) |
| 18351-79J00-000 | PIPE,PURGE | Emission control (J20B) |
| 18351-79J10-000 | PIPE,PURGE | Emission control (J20B) |
| 18417-80J00-000 | BRACKET,VSV | Emission control (J20B) |
| 18560-76A31-000 | CANISTER | Emission control (J20B) |
| 18561-80J10-000 | PIPE,CANISTER PURGE | Emission control (J20B) |
| 18562-80J00-000 | HOSE,CSTR PURGE CSTR TO PIPE | Emission control (J20B) |
| 18564-57L00-000 | HOSE,PURGE VSV TO INMF | Emission control (J20B) |
| 18565-54L00-000 | HOSE,PURGE PIPE TO VSV | Emission control (J20B) |
| 18565-54L10-000 | HOSE,PURGE PIPE TO VSV | Emission control (J20B) |
| 18568-80J10-000 | CLAMP,NYLON PIPE | Emission control (J20B) |
| 18569-80J10-000 | PIPE,CSTR AIR SUCTION | Emission control (J20B) |
| 18570-80J10-000 | Bracket comp,canister | Emission control (J20B) |
| 18570-80J20-000 | BRACKET,CANISTER | Emission control (J20B) |
