Search › Model › RW415
RW415

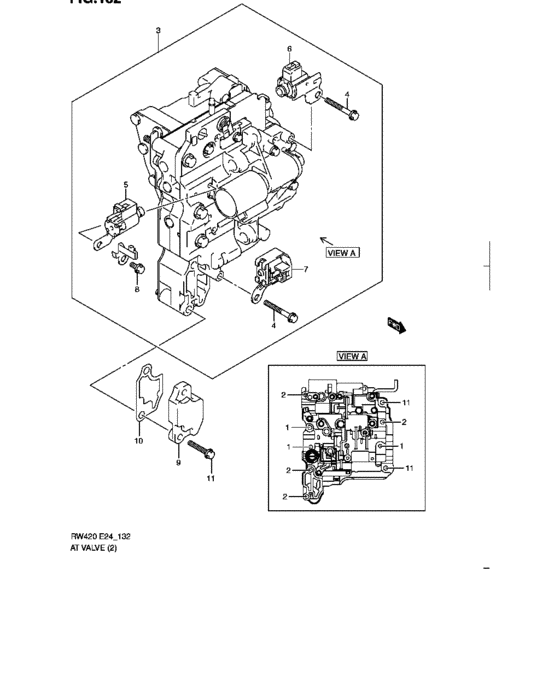

At valve (AT:RW420) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 26444-60G10-000 | BOLT,VALVE BODY NO.2 |
| 2 | 26446-60G10-000 | BOLT,VALVE BODY NO.3 |
| 3 | 26500-59J11-000 | BODY ASSY,T/M VALVE |
| 4 | 29976-57B00-000 | BOLT,UPR&LWR VALVE BODY NO.4 |
| 5 | 26581-59J10-000 | SOLENOID,CONTROL NO.1 |
| 6 | 26582-59J10-000 | SOLENOID,CONTROL NO.2 |
| 7 | 26583-59J10-000 | SOLENOID ASSY,T/M DUTY |
| 8 | 29983-57B00-000 | BOLT,SOLENOID NO.2 |
| 9 | 26551-59J10-000 | COVER,SUCTION |
| 10 | 26552-59J10-000 | GASKET,SUCTION COVER |
| 11 | 29974-65D10-000 | Bolt |
| 11 | 29974-77M10-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 26444-60G10-000 | BOLT,VALVE BODY NO.2 | At valve (AT:RW420) |
| 26446-60G10-000 | BOLT,VALVE BODY NO.3 | At valve (AT:RW420) |
| 26500-59J11-000 | BODY ASSY,T/M VALVE | At valve (AT:RW420) |
| 26551-59J10-000 | COVER,SUCTION | At valve (AT:RW420) |
| 26552-59J10-000 | GASKET,SUCTION COVER | At valve (AT:RW420) |
| 26581-59J10-000 | SOLENOID,CONTROL NO.1 | At valve (AT:RW420) |
| 26582-59J10-000 | SOLENOID,CONTROL NO.2 | At valve (AT:RW420) |
| 26583-59J10-000 | SOLENOID ASSY,T/M DUTY | At valve (AT:RW420) |
| 29974-65D10-000 | Bolt | At valve (AT:RW420) |
| 29974-77M10-000 | Bolt | At valve (AT:RW420) |
| 29976-57B00-000 | BOLT,UPR&LWR VALVE BODY NO.4 | At valve (AT:RW420) |
| 29983-57B00-000 | BOLT,SOLENOID NO.2 | At valve (AT:RW420) |
