RW415

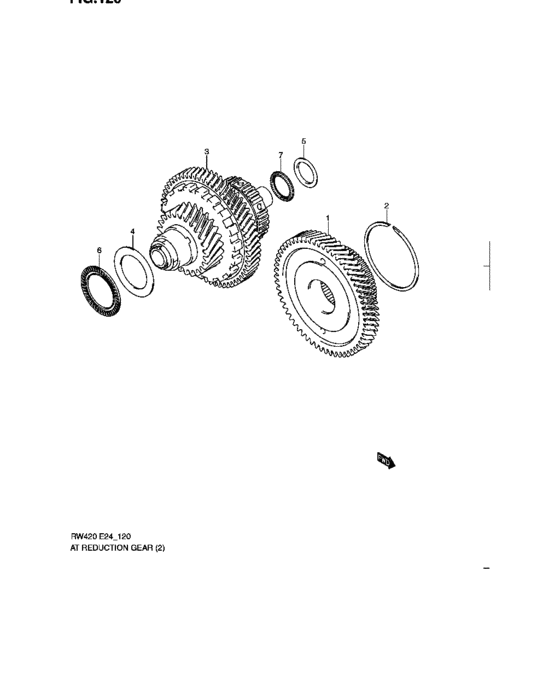

At reduction gear (AT:RW420) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 24510-59J10-000 | GEAR ASSY,REDUCTION DRIVE |
| 2 | 24593-59J10-000 | RING,RDCN DR GR BRG OTR RACE |
| 3 | 24600-80J10-000 | GEAR ASSY,UNDER DRIVE |
| 4 | 24671-59J10-000 | RACE,CTSHFT FR THR BRG RR |
| 5 | 24671-59J30-000 | RACE,CTSHFT RR THR BRG RR |
| 6 | 24672-59J10-000 | BEARING,CTSHFT FR THRUST |
| 7 | 24672-59J30-000 | BEARING,CTSHFT RR THRUST |
| OEM | Part name | Category |
|---|---|---|
| 24510-59J10-000 | GEAR ASSY,REDUCTION DRIVE | At reduction gear (AT:RW420) |
| 24593-59J10-000 | RING,RDCN DR GR BRG OTR RACE | At reduction gear (AT:RW420) |
| 24600-80J10-000 | GEAR ASSY,UNDER DRIVE | At reduction gear (AT:RW420) |
| 24671-59J10-000 | RACE,CTSHFT FR THR BRG RR | At reduction gear (AT:RW420) |
| 24671-59J30-000 | RACE,CTSHFT RR THR BRG RR | At reduction gear (AT:RW420) |
| 24672-59J10-000 | BEARING,CTSHFT FR THRUST | At reduction gear (AT:RW420) |
| 24672-59J30-000 | BEARING,CTSHFT RR THRUST | At reduction gear (AT:RW420) |
