Search › Model › RW415
RW415

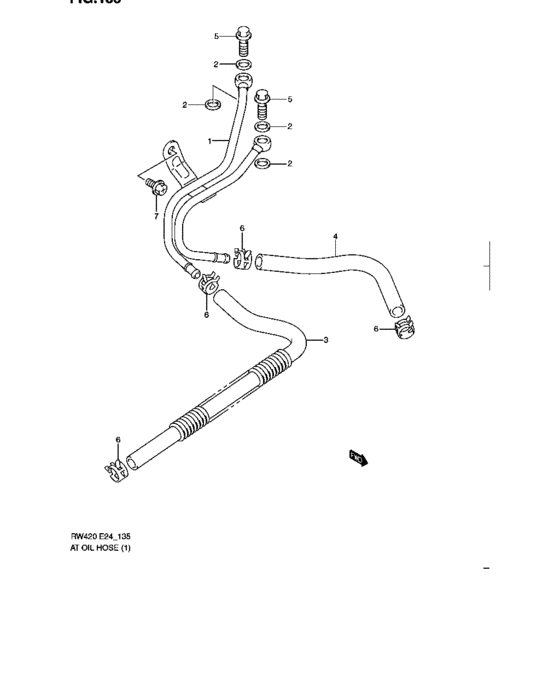

At oil hose (AT:RW415,RW416) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 22910-79J12-000 | PIPE,OIL COOLER |
| 2 | 22913-59J10-000 | GASKET,14X20X0.9 |
| 3 | 22931-79J10-000 | HOSE,OIL COOLER INLET |
| 4 | 22932-79J10-000 | HOSE,OIL COOLER OUTLET |
| 5 | 22935-79J10-000 | BOLT,OIL PIPE UNION |
| 6 | 09401-15410-000 | CLIP |
| 7 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | At oil hose (AT:RW415,RW416) |
| 09401-15410-000 | CLIP | At oil hose (AT:RW415,RW416) |
| 22910-79J12-000 | PIPE,OIL COOLER | At oil hose (AT:RW415,RW416) |
| 22913-59J10-000 | GASKET,14X20X0.9 | At oil hose (AT:RW415,RW416) |
| 22931-79J10-000 | HOSE,OIL COOLER INLET | At oil hose (AT:RW415,RW416) |
| 22932-79J10-000 | HOSE,OIL COOLER OUTLET | At oil hose (AT:RW415,RW416) |
| 22935-79J10-000 | BOLT,OIL PIPE UNION | At oil hose (AT:RW415,RW416) |
