RW415

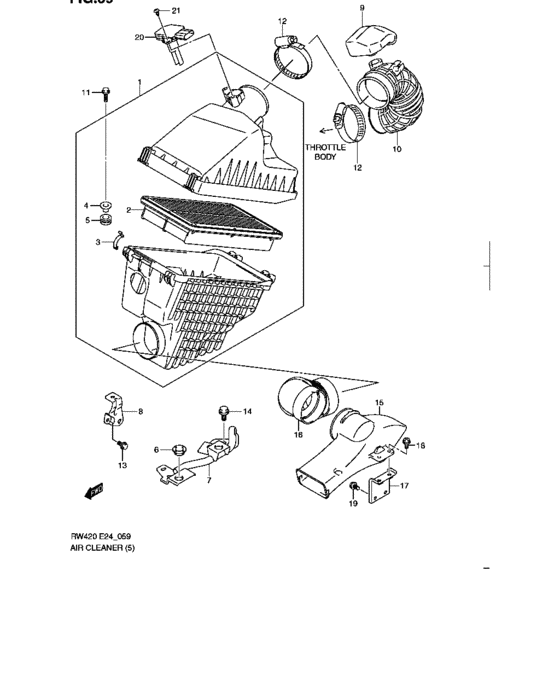

Air cleaner (J20B:CVT) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-54L00-000 | CLEANER ASSY,AIR |
| 2 | 13780-54L00-000 | ELEMENT,AIR CLEANER |
| 3 | 13755-80J00-000 | CLIP,AIR CLEANER |
| 4 | 13877-80J00-000 | COLLAR,AIR CLNR |
| 5 | 13878-80J00-000 | CUSHION,AIR CLNR |
| 6 | 13723-54L00-000 | GROMMET,AIR CLEANER |
| 7 | 13733-54L10-000 | BRACKET,AIR CLNR |
| 8 | 13733-54L20-000 | BRACKET,AIR CLNR |
| 9 | 13761-54L00-000 | RESONATOR,AIR CLNR OUT HOSE |
| 10 | 13881-54L00-000 | HOSE,AIR CLEANER OUTLET |
| 11 | 01550-0620A-000 | Bolt |
| 12 | 09402-82511-000 | CLAMP |
| 13 | 01550-0612A-000 | Bolt |
| 14 | 01550-0816A-000 | Bolt - Bolt, rear |
| 15 | 13765-54L00-000 | PIPE,AIR CLNR SUCTION |
| 16 | 13766-54L00-000 | HOSE,AIR SUCTION |
| 17 | 13811-54L00-000 | BRACKET,SUCT PIPE |
| 18 | 02162-0616A-000 | SCREW |
| 18 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 19 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 20 | 13800-54L00-000 | SENSOR ASSY, MAF |
| 21 | 03511-0412A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Air cleaner (J20B:CVT) |
| 01550-0620A-000 | Bolt | Air cleaner (J20B:CVT) |
| 01550-0816A-000 | Bolt - Bolt, rear | Air cleaner (J20B:CVT) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Air cleaner (J20B:CVT) |
| 02162-0616A-000 | SCREW | Air cleaner (J20B:CVT) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Air cleaner (J20B:CVT) |
| 03511-0412A-000 | SCREW | Air cleaner (J20B:CVT) |
| 09402-82511-000 | CLAMP | Air cleaner (J20B:CVT) |
| 13700-54L00-000 | CLEANER ASSY,AIR | Air cleaner (J20B:CVT) |
| 13723-54L00-000 | GROMMET,AIR CLEANER | Air cleaner (J20B:CVT) |
| 13733-54L10-000 | BRACKET,AIR CLNR | Air cleaner (J20B:CVT) |
| 13733-54L20-000 | BRACKET,AIR CLNR | Air cleaner (J20B:CVT) |
| 13755-80J00-000 | CLIP,AIR CLEANER | Air cleaner (J20B:CVT) |
| 13761-54L00-000 | RESONATOR,AIR CLNR OUT HOSE | Air cleaner (J20B:CVT) |
| 13765-54L00-000 | PIPE,AIR CLNR SUCTION | Air cleaner (J20B:CVT) |
| 13766-54L00-000 | HOSE,AIR SUCTION | Air cleaner (J20B:CVT) |
| 13780-54L00-000 | ELEMENT,AIR CLEANER | Air cleaner (J20B:CVT) |
| 13800-54L00-000 | SENSOR ASSY, MAF | Air cleaner (J20B:CVT) |
| 13811-54L00-000 | BRACKET,SUCT PIPE | Air cleaner (J20B:CVT) |
| 13877-80J00-000 | COLLAR,AIR CLNR | Air cleaner (J20B:CVT) |
| 13878-80J00-000 | CUSHION,AIR CLNR | Air cleaner (J20B:CVT) |
| 13881-54L00-000 | HOSE,AIR CLEANER OUTLET | Air cleaner (J20B:CVT) |
