Search › Model › RW415
RW415

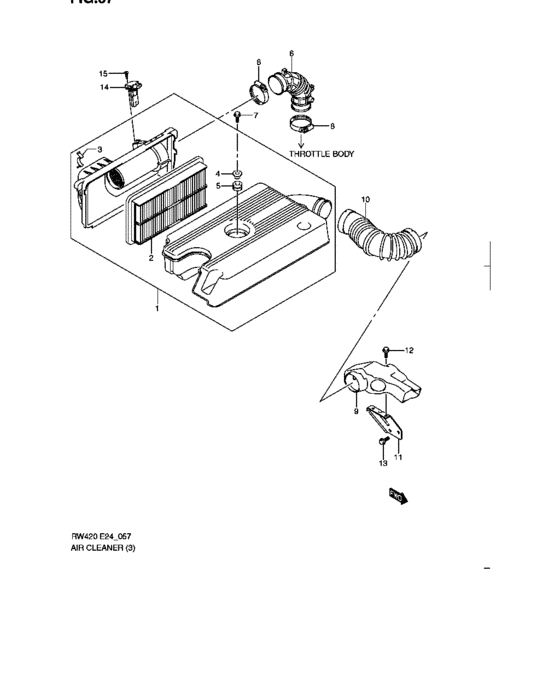

Air cleaner (J20A) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-80J00-000 | CLEANER ASSY,AIR |
| 2 | 13780-80J00-000 | ELEMENT,AIR CLEANER |
| 3 | 13755-80J00-000 | CLIP,AIR CLEANER |
| 4 | 13877-80J00-000 | COLLAR,AIR CLNR |
| 5 | 13878-80J00-000 | CUSHION,AIR CLNR |
| 6 | 13881-80J00-000 | HOSE,AIR CLEANER OUTLET |
| 7 | 01550-0620A-000 | Bolt |
| 8 | 09402-82511-000 | CLAMP |
| 9 | 13765-80J10-000 | PIPE,AIR CLNR SUCTION |
| 10 | 13766-80J00-000 | HOSE,AIR SUCTION |
| 11 | 13811-80J00-000 | BRACKET,SUCT PIPE |
| 12 | 02162-0616A-000 | SCREW |
| 12 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 13 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 14 | 13800-80J00-000 | SENSOR ASSY,MAIN AIR FLOW |
| 15 | 03511-0410A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0620A-000 | Bolt | Air cleaner (J20A) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Air cleaner (J20A) |
| 02162-0616A-000 | SCREW | Air cleaner (J20A) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Air cleaner (J20A) |
| 03511-0410A-000 | SCREW | Air cleaner (J20A) |
| 09402-82511-000 | CLAMP | Air cleaner (J20A) |
| 13700-80J00-000 | CLEANER ASSY,AIR | Air cleaner (J20A) |
| 13755-80J00-000 | CLIP,AIR CLEANER | Air cleaner (J20A) |
| 13765-80J10-000 | PIPE,AIR CLNR SUCTION | Air cleaner (J20A) |
| 13766-80J00-000 | HOSE,AIR SUCTION | Air cleaner (J20A) |
| 13780-80J00-000 | ELEMENT,AIR CLEANER | Air cleaner (J20A) |
| 13800-80J00-000 | SENSOR ASSY,MAIN AIR FLOW | Air cleaner (J20A) |
| 13811-80J00-000 | BRACKET,SUCT PIPE | Air cleaner (J20A) |
| 13877-80J00-000 | COLLAR,AIR CLNR | Air cleaner (J20A) |
| 13878-80J00-000 | CUSHION,AIR CLNR | Air cleaner (J20A) |
| 13881-80J00-000 | HOSE,AIR CLEANER OUTLET | Air cleaner (J20A) |
