Search › Model › RU75

RU75

Toyota DYNA-TOYOACE · 1984 · 3,884 parts · 165 categories

3,884 items

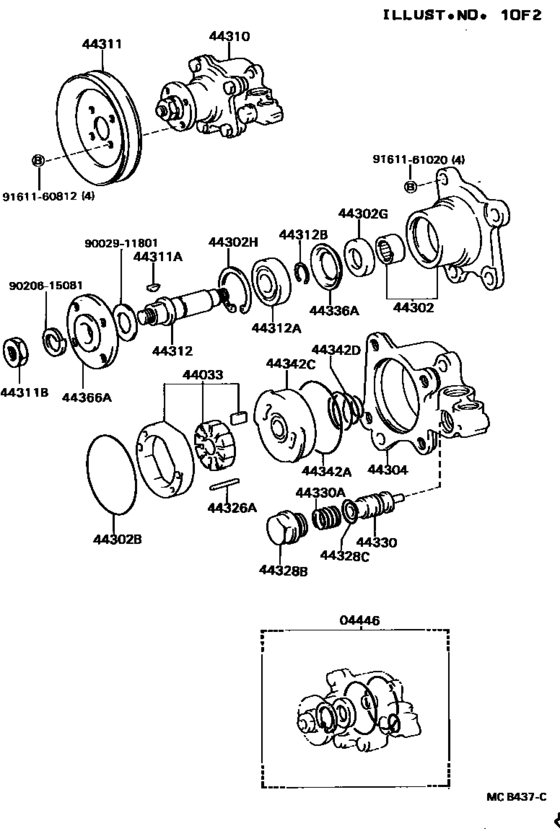

Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT) 47

#	OEM	Part name
4446	04446-36030	Gasket Kit, Power Steering Pump
4446	04446-36070	Gasket Kit, Power Steering Pump
44033	44033-89102	Rotor Sub-Assy, W/cam & Vane
44033	44033-36060	Rotor Sub-Assy, W/cam & Vane
44037	44037-36080	Cover Sub-Assy, Oil Reservoir
44037	90029-20701	Seal, Dust(For Oil Reservoir Cover)
44302	44302-36100	Housing Sub-Assy, Vane Pump, Front
44302	44302-36170	Housing Sub-Assy, Vane Pump, Front
44302	90029-20003	Ring, O, No.1(For Vane Pump Housing)
44302	90029-21004	Seal, Oil, No.2(For Vane Pump Housing)
44302	96151-04000	Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)
44304	44304-36100	Housing Sub-Assy, Vane Pump, Rear
44304	44304-36170	Housing Sub-Assy, Vane Pump, Rear
44310	44320-36100	Pump Assy, Vane
44310	44320-36150	Pump Assy, Vane
44311	44311-36030	Pulley, Vane Pump
44311	90029-18001	Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)
44311	90029-07001	Nut(For Vane Pump Pulley)
44312	44312-36100	Shaft, Vane Pump
44312	90029-36004	Bearing(For Vane Pump Shaft)
44312	90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)
44326	44347-89101	Pin, Straight(For Vane Pump Cam Ring)
44328	44328-89101	End, Vane Pump Housing
44328	96711-19020	Ring, O(For Power Steering Actuator)
44330	44330-36080	Valve Assy, Flow Control
44330	44330-36090	Valve Assy, Flow Control
44330	44330-36100	Valve Assy, Flow Control
44330	90029-60002	Spring, Compression(For Flow Control Valve)
44336	44336-89101	Retainer, Vane Pump Oil Seal
44337	90405-16014	Union(For Reservoir To Oil Pump)
44342	96711-24060	Ring, O(For Power Steering Control Valve)
44342	44342-89102	Plate, Vane Pump Side, Rear
44342	90029-60003	Spring, Compression(For Vane Pump Side Plate Rear)
44360	44360-36130	Reservoir, Oil(For Vane Pump)
44363	44363-36040	Strainer, Oil(For Vane Pump)
44366	44366-36021	Seat, Pump Pulley
44391	44391-36010	Plate, Power Steering Oil Reservoir Caution
44391	44391-36020	Plate, Power Steering Oil Reservoir Caution
44429	90401-22003	Bolt, Union(For Return Tube)
44429	90430-22001	Gasket(For Return Tube)
9002910600	90029-10600	TOOL
9002911801	90029-11801	New Genuine Part
9020615081	90206-15081	Washer Wave(For Hydraulic Motor Vane Pump Pulley Seat)
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
04446-36030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
04446-36070	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44033-36060	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44033-89102	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44037-36080	Cover Sub-Assy, Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44302-36100	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44302-36170	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44304-36100	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44304-36170	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44311-36030	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44312-36100	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44320-36100	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44320-36150	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44328-89101	End, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44330-36080	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44330-36090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44330-36100	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44336-89101	Retainer, Vane Pump Oil Seal	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44342-89102	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44347-89101	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44360-36130	Reservoir, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44363-36040	Strainer, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44366-36021	Seat, Pump Pulley	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44391-36010	Plate, Power Steering Oil Reservoir Caution	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
44391-36020	Plate, Power Steering Oil Reservoir Caution	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-07001	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-10600	TOOL	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-11801	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-18001	Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-20003	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-20701	Seal, Dust(For Oil Reservoir Cover)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-21004	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-36004	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-60002	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90029-60003	Spring, Compression(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90206-15081	Washer Wave(For Hydraulic Motor Vane Pump Pulley Seat)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90401-22003	Bolt, Union(For Return Tube)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90405-16014	Union(For Reservoir To Oil Pump)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
90430-22001	Gasket(For Return Tube)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
91611-61020	Bolt(For Transaxle & Engine Setting)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
91611-B0812	Bolt	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
96151-04000	Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
96711-19020	Ring, O(For Power Steering Actuator)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
96711-24060	Ring, O(For Power Steering Control Valve)	Vane Pump & Reservoir (Power Steering) ([09.1984 - ] (8409- )RU75,85,YU6#,8#..WT)
