RU75

Toyota DYNA-TOYOACE · 1984 · 3,884 parts · 165 categories
RU75 ×

← Back to categories

3,884 items

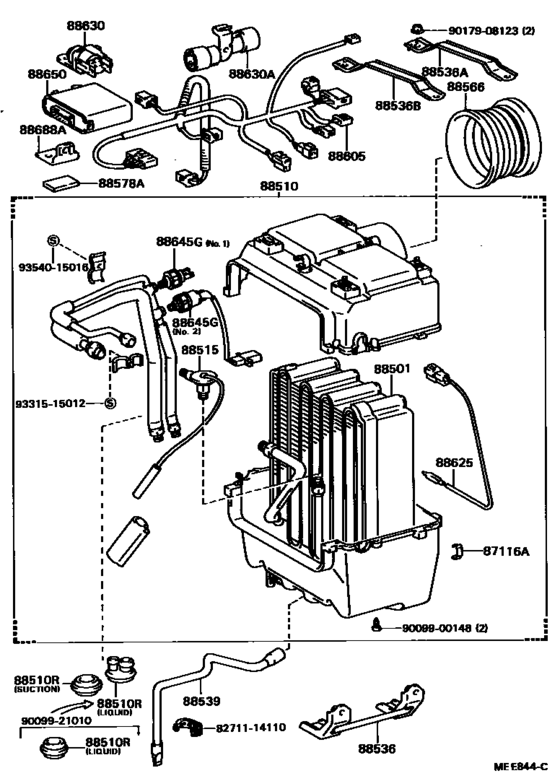

Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- )) 31
#OEMPart name
87116 87116-14010 Spring, Heater Case Fastening
88501 88501-95402 Evaporator Sub-Assy, Cooler, No.1
88501 88501-95404 Evaporator Sub-Assy, Cooler, No.1
88510 88510-95402 Unit Assy, Cooler
88510 90099-21010 Grommet (For Cooler Unit)
88510 90480-36003 Grommet (For Cooler Unit)
88510 90480-36010 Grommet (For Cooler Unit)
88515 88515-16030 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88536 88536-95403 Bracket, Cooling Unit, No.1
88536 88536-95408 Bracket, Cooling Unit, No.2
88536 88536-95407 Bracket, Cooling Unit, No.3
88539 88539-95408 Hose, Cooler Unit Drain, No.1
88539 88539-95412 Hose, Cooler Unit Drain, No.1
88566 88566-95408 Duct, Cooler Air, No.1
88578 88578-95400 Packing, Cooler Stabilizer Amplifier
88605 88605-95407 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-95A00 Thermistor, Cooler, No.1
88625 88625-28150 Thermistor, Cooler No.2
88630 88630-60020 Relay Assy, Cooler
88630 88630-95403 Relay Assy, Cooler
88645 88645-17010 Switch, Pressure
88645 88645-95J00 Switch, Pressure
88645 88645-12020 Switch, Pressure
88650 88650-87101 Amplifier Assy, Cooler Stabilizer
88688 88688-95425 Bracket, Cooler Stabilizer Amplifier
8271114110 82711-14110 Clamp(For Hood Lock Control Cable)
9009900148 90099-00148 New Genuine Part
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9331515012 93315-15012 SCREWWWASHER
9354015016 93540-15016 New Genuine Part
