Search › Model › RU30

RU30

Toyota DYNA-TOYOACE · 1977 · 3,316 parts · 160 categories

3,316 items

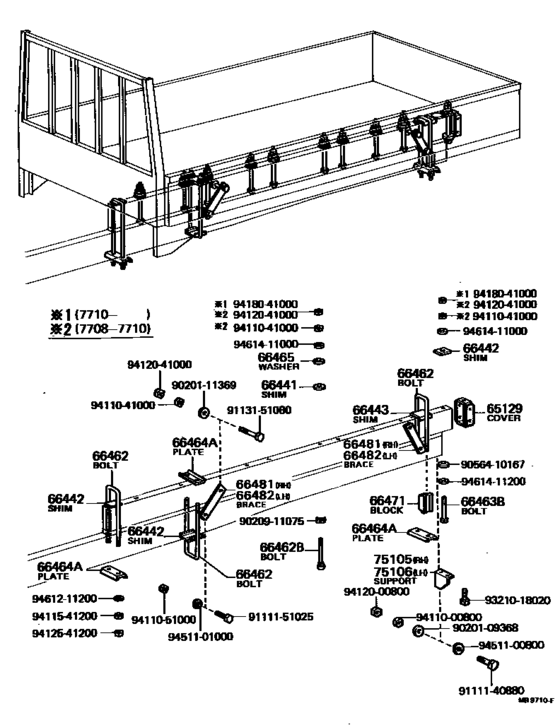

Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS) 43

#	OEM	Part name
65129	65129-95404	Cover, Main Sill Rear End
66441	90564-15142	Shim, Mounting
66442	66443-95405	Shim, Mounting, No.2
66443	65128-95400	Shim, Mounting, No.3
66462	90117-12003	Bolt, U(For Main Sill)
66462	90117-12009	Bolt, U(For Main Sill)
66462	90117-12021	Bolt, Mounting
66462	90117-12017	Bolt, U(For Main Sill)
66462	90112-10003	Bolt, Sill Main, No.2
66463	90101-10022	Bolt, Sill Main, No.3
66464	51875-95011	Plate, Spare Wheel Clamp
66465	66442-95403	Washer, Plate(For Deck Mounting)
66471	66471-95401	Block, U Bolt, No.1
66471	66471-95402	Block, U Bolt, No.1
66481	66481-95406	Brace, Sill To Frame, Rh
75105	75105-95401	Support Sub-Assy, Main Sill, Rh
75106	75106-95401	Support Sub-Assy, Main Sill, Lh
9020109368	90201-09368	New Genuine Part
9020111369	90201-11369	New Genuine Part
9020911075	90209-11075	New Genuine Part
9056410167	90564-10167	Shim, Mounting
9111140880	91111-40880	Bolt (For Floor Shift Control Lever)
9111151025	91111-51025	Bolt(For Torque Arm Setting)
9111151025	91112-61025	Bolt(For Clutch Pedal Stopper)
9113151080	91131-51080	Bolt(For Front Stabilizer)
9113151080	91112-61080	Bolt
9321018020	93210-18020	New Genuine Part
9411000800	94110-00800	Nut(for Steering Damper)
9411000800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9411051000	94110-51000	Nut(For Steering Center Arm)
9411541200	94115-41200	Nut
9411541200	94130-61200	Nut
9412000800	94120-00800	New Genuine Part
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9412541200	94125-41200	Nut, Steering Wheel Set
9418041000	94180-41000	Nut
9451100800	94511-00800	WASHERSPRING
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9461211200	94612-11200	Washer
9461411000	94614-11000	New Genuine Part
9461411200	94614-11200	New Genuine Part

OEM	Part name	Category
51875-95011	Plate, Spare Wheel Clamp	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
65128-95400	Shim, Mounting, No.3	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
65129-95404	Cover, Main Sill Rear End	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
66442-95403	Washer, Plate(For Deck Mounting)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
66443-95405	Shim, Mounting, No.2	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
66471-95401	Block, U Bolt, No.1	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
66471-95402	Block, U Bolt, No.1	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
66481-95406	Brace, Sill To Frame, Rh	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
75105-95401	Support Sub-Assy, Main Sill, Rh	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
75106-95401	Support Sub-Assy, Main Sill, Lh	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90101-10022	Bolt, Sill Main, No.3	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90112-10003	Bolt, Sill Main, No.2	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90117-12003	Bolt, U(For Main Sill)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90117-12009	Bolt, U(For Main Sill)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90117-12017	Bolt, U(For Main Sill)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90117-12021	Bolt, Mounting	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90170-A0002	Nut	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90201-09368	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90201-11369	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90209-11075	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90564-10167	Shim, Mounting	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
90564-15142	Shim, Mounting	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
91111-40880	Bolt (For Floor Shift Control Lever)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
91111-51025	Bolt(For Torque Arm Setting)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
91112-61025	Bolt(For Clutch Pedal Stopper)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
91112-61080	Bolt	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
91131-51080	Bolt(For Front Stabilizer)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
93210-18020	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94110-00800	Nut(for Steering Damper)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94110-41000	Nut(For Steering Damper)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94110-51000	Nut(For Steering Center Arm)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94115-41200	Nut	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94120-00800	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94120-41000	Nut(For Clutch Pedal Stopper)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94125-41200	Nut, Steering Wheel Set	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94130-61200	Nut	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94180-41000	Nut	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94511-00800	WASHERSPRING	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94511-01000	Washer(For Rear Drive Shaft)	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94612-11200	Washer	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94614-11000	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
94614-11200	New Genuine Part	Rear Body Mounting ([08.1977 - 08.1984] (7708-8408)HU30,RU30..TS)
