RU22

Toyota DYNA-TOYOACE · 1982 · 3,476 parts · 164 categories

3,476 items

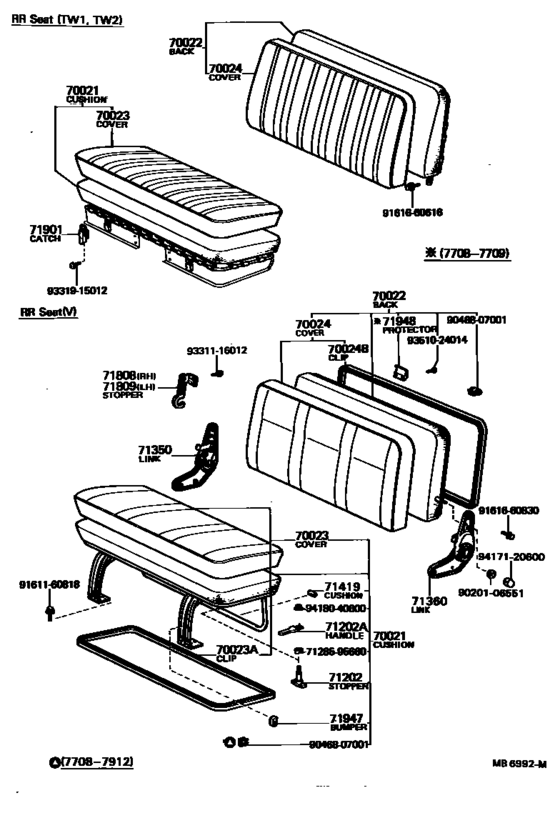

Seat & Seat Track ([08.1977 - ] (7708- )06S) 24

#	OEM	Part name
70021	71410-92637	Cushion Assy, No.2 Seat
70022	71450-92637	Back Assy, No.2 Seat
70023	71065-92637	Cover Assy, No.2 Seat Cushion
70023	71417-95A01	Clip, Leather (For Seat Cushion Cover)
70024	71409-92637	Cover Assy, No.2 Seat Back
70024	71417-95A02	Clip, Leather(For Seat Back Cover)
71350	71405-92636	Link Assy, Rear Seat Back Cushion, Rh
71360	71406-92636	Link Assy, Rear Seat Back Cushion, Lh
71419	71419-92628	Cushion (For Rear Seat Leg)
71808	71041-92627	Stopper Sub-Assy, Rear Seat Back, Rh
71809	71042-92627	Stopper Sub-Assy, Rear Seat Back, Lh
7128595660	71285-95660	Spring, Passenger Seat Back Frame Stop
9020106551	90201-06551	New Genuine Part
9046807001	90468-07001	Clip, Spring, No.1
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9161660616	91616-60616	BOLT
9161660830	91616-60830	Bolt(For Clutch Release Cylinder Setting)
9161660830	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9331116012	93311-16012	Screw, Rear Axle Bearing Lock Nut
9331915012	93319-15012	Screw
9351024014	93510-24014	New Genuine Part
9417120600	94171-20600	New Genuine Part
9418040600	94180-40600	Retainer, Roof Window Hinge

OEM	Part name	Category
71041-92627	Stopper Sub-Assy, Rear Seat Back, Rh	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71042-92627	Stopper Sub-Assy, Rear Seat Back, Lh	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71065-92637	Cover Assy, No.2 Seat Cushion	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71285-95660	Spring, Passenger Seat Back Frame Stop	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71405-92636	Link Assy, Rear Seat Back Cushion, Rh	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71406-92636	Link Assy, Rear Seat Back Cushion, Lh	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71409-92637	Cover Assy, No.2 Seat Back	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71410-92637	Cushion Assy, No.2 Seat	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71417-95A01	Clip, Leather (For Seat Cushion Cover)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71417-95A02	Clip, Leather(For Seat Back Cover)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71419-92628	Cushion (For Rear Seat Leg)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
71450-92637	Back Assy, No.2 Seat	Seat & Seat Track ([08.1977 - ] (7708- )06S)
90119-08830	Bolt(For Oil Receiver Pipe)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
90201-06551	New Genuine Part	Seat & Seat Track ([08.1977 - ] (7708- )06S)
90468-07001	Clip, Spring, No.1	Seat & Seat Track ([08.1977 - ] (7708- )06S)
91611-60818	Bolt(For Oil Receiver Pipe)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
91616-60616	BOLT	Seat & Seat Track ([08.1977 - ] (7708- )06S)
91616-60830	Bolt(For Clutch Release Cylinder Setting)	Seat & Seat Track ([08.1977 - ] (7708- )06S)
93311-16012	Screw, Rear Axle Bearing Lock Nut	Seat & Seat Track ([08.1977 - ] (7708- )06S)
93319-15012	Screw	Seat & Seat Track ([08.1977 - ] (7708- )06S)
93510-24014	New Genuine Part	Seat & Seat Track ([08.1977 - ] (7708- )06S)
94171-20600	New Genuine Part	Seat & Seat Track ([08.1977 - ] (7708- )06S)
94180-40600	Retainer, Roof Window Hinge	Seat & Seat Track ([08.1977 - ] (7708- )06S)
