Search › Model › RU22

RU22

Toyota DYNA-TOYOACE · 1982 · 3,476 parts · 164 categories

3,476 items

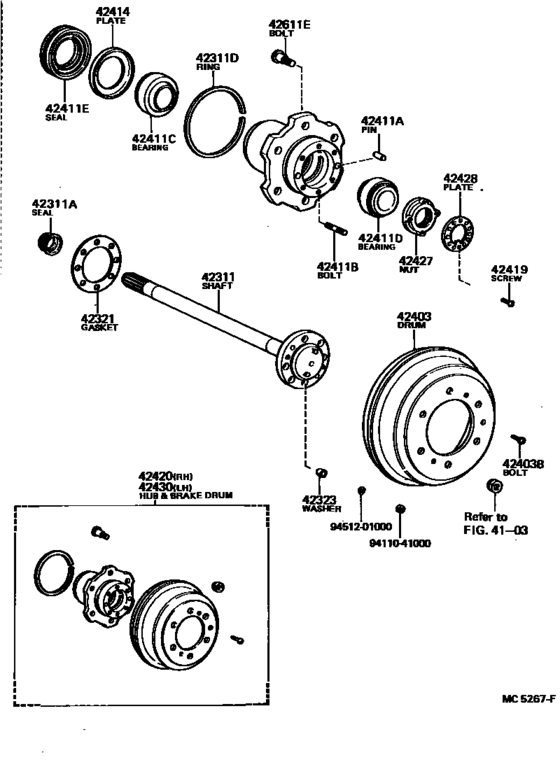

Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST) 24

#	OEM	Part name
42311	42311-36050	Shaft, Rear Axle
42311	42311-36051	Shaft, Rear Axle
42311	90310-38033	Seal, Oil (For Rear Axle Shaft)
42311	90520-99065	Ring, Snap (For Rear Axle Shaft)
42321	42321-36010	Gasket, Rear Axle Shaft
42323	42323-36010	Washer, Cone (For Rear Axle Shaft)
42403	43512-36020	Drum Sub-Assy, Rear Brake
42403	90113-10015	Bolt, Set (For Rear Brake Drum Setting)
42403	90113-10035	Bolt, Set (For Rear Brake Drum Setting)
42411	90250-10055	Pin, Straight (For Rear Axle Hub Rh)
42411	90116-10191	Bolt, Stud (For Rear Axle Hub Rh)
42411	90368-57010	Bearing (For Rear Axle Hub Inner Rh)
42411	90368-50008	Bearing, Tapered Roller (For Rear Axle Outer Bearing)
42411	42404-36010	Seal, Oil (For Rear Axle Shaft)
42414	42414-36010	Plate, Rear Axle Hub
42419	93311-16012	Screw, Rear Axle Bearing Lock Nut
42420	42420-36050	Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427	42427-36010	Nut, Rear Axle Bearing Lock
42428	42428-36010	Plate, Rear Axle Lock Nut
42430	42430-36050	Hub (Or Shaft) & Brake Drum Rear Axle, Lh
42611	90942-02024	Bolt, Hub (For Rear Axle Rh)
42611	90942-02025	Bolt, Hub (For Rear Axle Lh)
9411041000	94110-41000	Nut(For Steering Damper)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
42311-36050	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42311-36051	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42321-36010	Gasket, Rear Axle Shaft	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42323-36010	Washer, Cone (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42404-36010	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42414-36010	Plate, Rear Axle Hub	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42420-36050	Hub (Or Shaft) & Brake Drum Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42427-36010	Nut, Rear Axle Bearing Lock	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42428-36010	Plate, Rear Axle Lock Nut	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
42430-36050	Hub (Or Shaft) & Brake Drum Rear Axle, Lh	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
43512-36020	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90113-10015	Bolt, Set (For Rear Brake Drum Setting)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90113-10035	Bolt, Set (For Rear Brake Drum Setting)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90116-10191	Bolt, Stud (For Rear Axle Hub Rh)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90250-10055	Pin, Straight (For Rear Axle Hub Rh)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90310-38033	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90368-50008	Bearing, Tapered Roller (For Rear Axle Outer Bearing)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90368-57010	Bearing (For Rear Axle Hub Inner Rh)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90520-99065	Ring, Snap (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90942-02024	Bolt, Hub (For Rear Axle Rh)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
90942-02025	Bolt, Hub (For Rear Axle Lh)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
93311-16012	Screw, Rear Axle Bearing Lock Nut	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
94110-41000	Nut(For Steering Damper)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Axle Shaft & Hub ([08.1977 - ] (7708- )ST)
