RT135

Toyota CORONA · 1980 · 4,288 parts · 171 categories

4,288 items

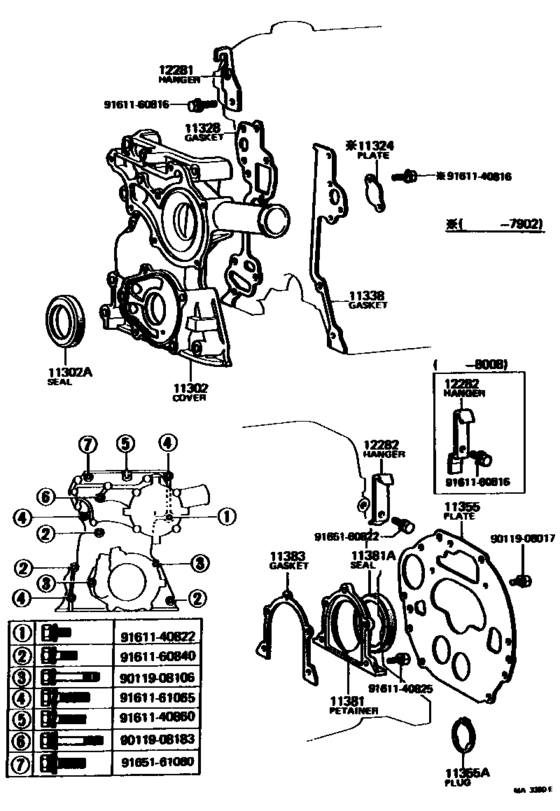

Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- )) 37

#	OEM	Part name
11302	11302-38010	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)
11328	11328-38020	Gasket, Timing Gear Or Chain Cover
11328	11328-35011	Gasket, Timing Gear Or Chain Cover
11338	11338-38030	Gasket, Timing Chain Cover, No.2
11338	11329-35011	Gasket, Timing Chain Cover, No.2
11355	11355-38011	Plate, Rear End
11355	11355-35010	Plate, Rear End
11355	11355-38021	Plate, Rear End
11355	11355-35030	Plate, Rear End
11355	90950-01458	Cover(For Flywheel Housing)
11355	90950-01128	Plug, Hole(For Rear End Plate)
11381	11381-38010	Retainer, Engine Rear Oil Seal
11381	90311-80001	Seal, Engine Rear Oil
11383	11383-33010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-35020	Gasket, Engine Rear Oil Seal Retainer
12281	12281-38020	Hanger, Engine, No.1
12282	12282-35010	Hanger, Engine, No.2
9011908017	90119-08017	Bolt, W/Washer
9011908106	90119-08106	New Genuine Part
9011908183	90119-08183	New Genuine Part
9011908183	90119-08694	BOLT
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161140822	91611-40822	Bolt(For Intake Manifold To Exhaust Manifold)
9161140822	91611-60822	Bolt
9161140825	91611-40825	Bolt(For Clutch Release Cylinder Setting)
9161140825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161140860	91611-40860	Bolt(For Rocker Support Set)
9161140860	91611-60860	Bolt(For Rocker Support Set)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160840	91611-60840	BOLT
9161161065	91611-61065	Bolt(For Transaxle & Engine Setting)
9161161065	91612-61065	Bolt(For Transaxle & Engine Setting)
9165160822	91651-60822	New Genuine Part
9165160822	91651-B0822	BOLT WWASHER
9165161060	91651-61060	New Genuine Part

OEM	Part name	Category
11302-38010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11328-35011	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11328-38020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11329-35011	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11338-38030	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11355-35010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11355-35030	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11355-38011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11355-38021	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11381-38010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11383-33010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
11383-35020	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
12281-38020	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
12282-35010	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90119-08017	Bolt, W/Washer	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90119-08106	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90119-08183	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90119-08694	BOLT	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90311-80001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90950-01128	Plug, Hole(For Rear End Plate)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
90950-01458	Cover(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-40822	Bolt(For Intake Manifold To Exhaust Manifold)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-40860	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-60822	Bolt	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-60840	BOLT	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-60860	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-61065	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91612-61065	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91651-60822	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91651-61060	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
91651-B0822	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([09.1978 - ] (7809- ))
