Search › Model › RT135
RT135

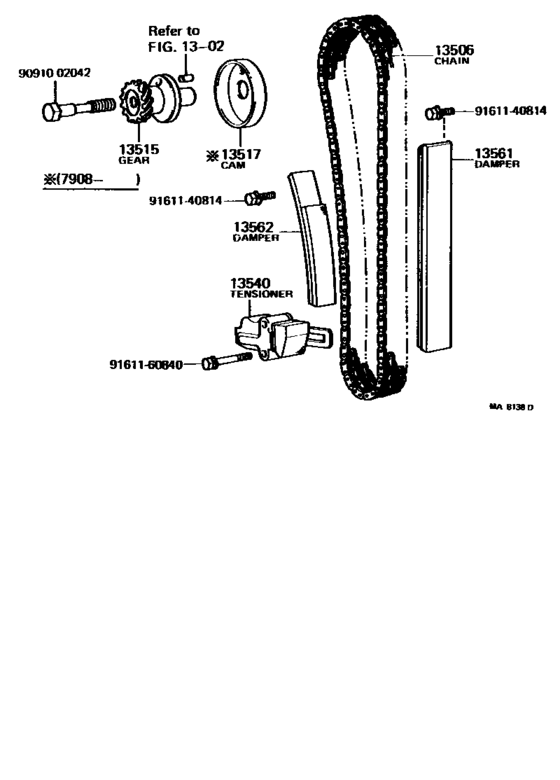

Timing Chain ([09.1978 - ] (7809- )) 11
| # | OEM | Part name |
|---|---|---|
| 13506 | 13506-38010 | Chain Sub-Assy |
| 13515 | 13515-37010 | Gear, Distributor Drive |
| 13515 | 13515-37900 | Gear, Distributor Drive |
| 13517 | 13517-37010 | Cam, Fuel Pump Drive |
| 13540 | 13540-38012 | Tensioner Assy, Chain, No.1 |
| 13561 | 13561-38010 | Damper, Chain Vibration, No.1 |
| 13562 | 13562-38010 | Damper, Chain Vibration, No.2 |
| 9091002042 | 90910-02042 | Bolt(For Crankshaft Bearing Cap Set) |
| 9161140814 | 91611-40814 | Bolt(For Manual Transmission Oil Pan Setting) |
| 9161140814 | 91611-60814 | Bolt |
| 9161160840 | 91611-60840 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 13506-38010 | Chain Sub-Assy | Timing Chain ([09.1978 - ] (7809- )) |
| 13515-37010 | Gear, Distributor Drive | Timing Chain ([09.1978 - ] (7809- )) |
| 13515-37900 | Gear, Distributor Drive | Timing Chain ([09.1978 - ] (7809- )) |
| 13517-37010 | Cam, Fuel Pump Drive | Timing Chain ([09.1978 - ] (7809- )) |
| 13540-38012 | Tensioner Assy, Chain, No.1 | Timing Chain ([09.1978 - ] (7809- )) |
| 13561-38010 | Damper, Chain Vibration, No.1 | Timing Chain ([09.1978 - ] (7809- )) |
| 13562-38010 | Damper, Chain Vibration, No.2 | Timing Chain ([09.1978 - ] (7809- )) |
| 90910-02042 | Bolt(For Crankshaft Bearing Cap Set) | Timing Chain ([09.1978 - ] (7809- )) |
| 91611-40814 | Bolt(For Manual Transmission Oil Pan Setting) | Timing Chain ([09.1978 - ] (7809- )) |
| 91611-60814 | Bolt | Timing Chain ([09.1978 - ] (7809- )) |
| 91611-60840 | BOLT | Timing Chain ([09.1978 - ] (7809- )) |
