Search › Model › RT135

RT135

Toyota CORONA · 1980 · 4,288 parts · 171 categories

4,288 items

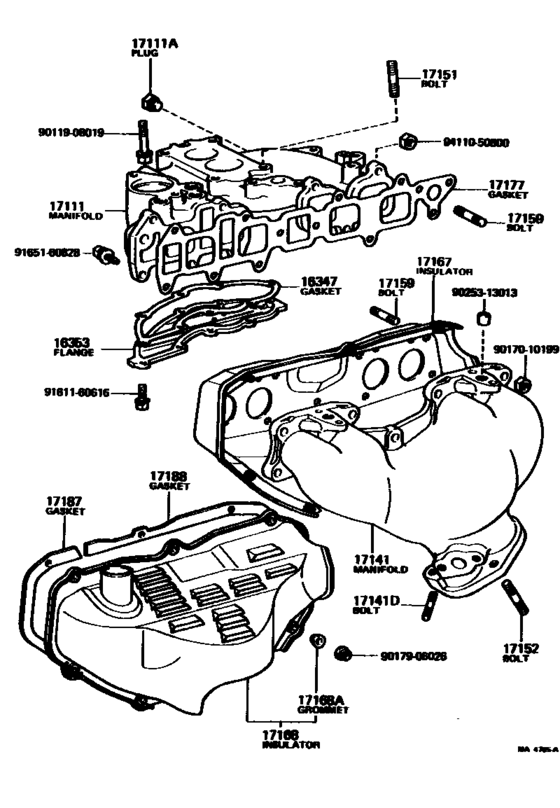

Manifold ([08.1980 - ] (8008- )22R..USA) 39

#	OEM	Part name
16347	16347-35010	Gasket, Water By-Pass
16347	16347-35011	Gasket, Water By-Pass
16353	16353-35010	Flange, Water By-Pass
17111	17111-35010	Manifold, Intake
17111	90119-08830	Bolt(For Oil Receiver Pipe)
17111	17111-35012	Manifold, Intake
17111	78184-14031	Channel, Accelerator Idle Adjusting Stopper
17111	78184-20050	Bracket, Accelerator Wire Support
17111	90345-51025	Plug, W/head Taper Screw, No.2
17141	17141-35010	Manifold, Exhaust
17141	17141-35040	Manifold, Exhaust
17141	90116-08045	Bolt, Stud(For Oxygen Sensor)
17141	90116-08128	Bolt, Stud(For Manifold Stay)
17151	90116-08051	Bolt, Stud(For Manifold To Carburetor)
17152	90116-10039	Bolt, Stud(For Manifold To Exhaust Pipe)
17152	90116-10058	Bolt, Stud(For Manifold Extension)
17159	90116-08013	Bolt, Stud(For Fuel Pump)
17159	90116-10011	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10050	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10317	Bolt, Stud(For Manifold To Cylinder Head)
17167	17167-35010	Insulator, Exhaust Manifold Heat, No.1
17167	17167-35011	Insulator, Exhaust Manifold Heat, No.1
17168	17168-35010	Insulator, Exhaust Manifold Heat, No.2
17168	90480-11001	Grommet(For Exhaust Manifold Heat Insulator)
17168	90480-12001	Grommet(For Exhaust Manifold Heat Insulator)
17177	17177-35010	Gasket, Intake Manifold To Head, No.1
17177	17177-35022	Gasket, Intake Manifold To Head, No.1
17177	17177-35011	Gasket, Intake Manifold To Head, No.1
17187	17187-38020	Gasket, Heat Insulator, No.1
17188	17188-38010	Gasket, Heat Insulator, No.2
9011908019	90119-08019	Bolt, Stud(For Manifold To Carburetor)
9017010199	90170-10199	Nut, Exhaust Pipe Set Stud Bolt
9017906026	90179-06026	Nut, Cap(For Cylinder Head Cover)
9017906026	90179-06274	Nut
9025313013	90253-13013	Pin, Ring(For Oil Seal Retainer, No.2)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9165160828	91651-60828	Bolt
9411050800	94110-50800	Nut(For Repair Actuator Set)

OEM	Part name	Category
16347-35010	Gasket, Water By-Pass	Manifold ([08.1980 - ] (8008- )22R..USA)
16347-35011	Gasket, Water By-Pass	Manifold ([08.1980 - ] (8008- )22R..USA)
16353-35010	Flange, Water By-Pass	Manifold ([08.1980 - ] (8008- )22R..USA)
17111-35010	Manifold, Intake	Manifold ([08.1980 - ] (8008- )22R..USA)
17111-35012	Manifold, Intake	Manifold ([08.1980 - ] (8008- )22R..USA)
17141-35010	Manifold, Exhaust	Manifold ([08.1980 - ] (8008- )22R..USA)
17141-35040	Manifold, Exhaust	Manifold ([08.1980 - ] (8008- )22R..USA)
17167-35010	Insulator, Exhaust Manifold Heat, No.1	Manifold ([08.1980 - ] (8008- )22R..USA)
17167-35011	Insulator, Exhaust Manifold Heat, No.1	Manifold ([08.1980 - ] (8008- )22R..USA)
17168-35010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([08.1980 - ] (8008- )22R..USA)
17177-35010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.1980 - ] (8008- )22R..USA)
17177-35011	Gasket, Intake Manifold To Head, No.1	Manifold ([08.1980 - ] (8008- )22R..USA)
17177-35022	Gasket, Intake Manifold To Head, No.1	Manifold ([08.1980 - ] (8008- )22R..USA)
17187-38020	Gasket, Heat Insulator, No.1	Manifold ([08.1980 - ] (8008- )22R..USA)
17188-38010	Gasket, Heat Insulator, No.2	Manifold ([08.1980 - ] (8008- )22R..USA)
78184-14031	Channel, Accelerator Idle Adjusting Stopper	Manifold ([08.1980 - ] (8008- )22R..USA)
78184-20050	Bracket, Accelerator Wire Support	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-08013	Bolt, Stud(For Fuel Pump)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-08045	Bolt, Stud(For Oxygen Sensor)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-08051	Bolt, Stud(For Manifold To Carburetor)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-08128	Bolt, Stud(For Manifold Stay)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-10011	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-10039	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-10050	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-10058	Bolt, Stud(For Manifold Extension)	Manifold ([08.1980 - ] (8008- )22R..USA)
90116-10317	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1980 - ] (8008- )22R..USA)
90119-08019	Bolt, Stud(For Manifold To Carburetor)	Manifold ([08.1980 - ] (8008- )22R..USA)
90119-08830	Bolt(For Oil Receiver Pipe)	Manifold ([08.1980 - ] (8008- )22R..USA)
90170-10199	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.1980 - ] (8008- )22R..USA)
90179-06026	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.1980 - ] (8008- )22R..USA)
90179-06274	Nut	Manifold ([08.1980 - ] (8008- )22R..USA)
90253-13013	Pin, Ring(For Oil Seal Retainer, No.2)	Manifold ([08.1980 - ] (8008- )22R..USA)
90345-51025	Plug, W/head Taper Screw, No.2	Manifold ([08.1980 - ] (8008- )22R..USA)
90480-11001	Grommet(For Exhaust Manifold Heat Insulator)	Manifold ([08.1980 - ] (8008- )22R..USA)
90480-12001	Grommet(For Exhaust Manifold Heat Insulator)	Manifold ([08.1980 - ] (8008- )22R..USA)
91611-60616	Bolt(For Transaxle Case Receiver)	Manifold ([08.1980 - ] (8008- )22R..USA)
91611-B0616	Bolt(For Transaxle Case Receiver)	Manifold ([08.1980 - ] (8008- )22R..USA)
91651-60828	Bolt	Manifold ([08.1980 - ] (8008- )22R..USA)
94110-50800	Nut(For Repair Actuator Set)	Manifold ([08.1980 - ] (8008- )22R..USA)
