RT135

Toyota CORONA · 1980 · 4,288 parts · 171 categories
RT135 ×

← Back to categories

4,288 items

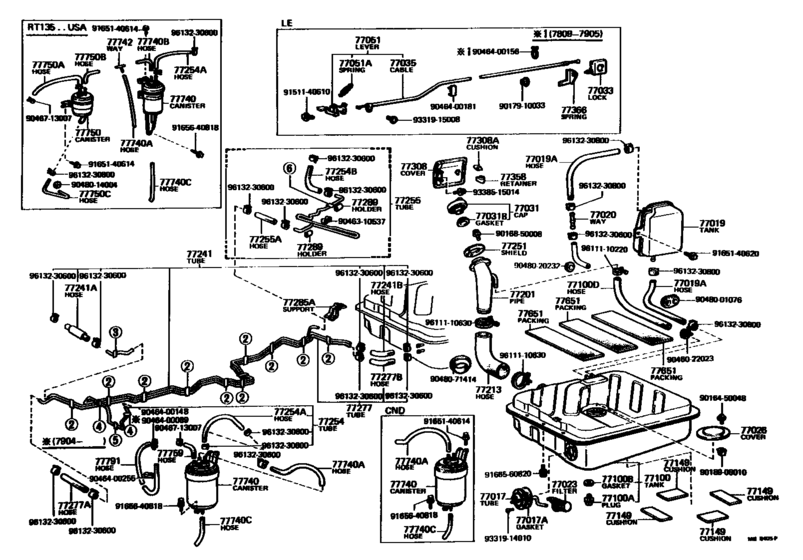

Fuel Tank & Tube ([09.1978 - ] (7809- )WG) 84
#OEMPart name
77017 77017-91259 Tube Sub-Assy, Fuel Tank Suction - FUEL AND EVAPORATION VENT
77017 83361-20030 Gasket, Fuel Tank Vent
77019 77191-21010 Tank Sub-Assy, Fuel Expansion
77019 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77019 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77020 90412-08001 Way, 2(For Fuel Expansion Tank)
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77026 77029-91600 Cover, Rear Floor Service Hole
77031 77310-12090 Cap Assy, Fuel Tank
77031 77310-12100 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77100 77001-91267 Tank Assy, Fuel
77100 77001-91283 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90445-22012 Hose, Fuel, No.1(For Fuel Tank)
77100 90445-22018 Hose, Fuel, No.1(For Fuel Tank)
77149 77652-91602 Packing, Fuel Tank, Lower
77201 77201-91259 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-91257 Hose, Fuel Tank Sub Inlet
77241 77251-91262 Tube, Fuel Main, No.1
77241 77019-20100 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95332-06030 Hose(For Carburetor)
77241 95333-06030 Hose, Fuel
77251 77291-12010 Shield, Fuel Tank, Inlet, No.1
77254 77261-91256 Tube, Fuel Emission, No.1
77254 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77255 77263-91255 Tube, Fuel Emission, No.2
77277 77255-91255 Tube, Fuel Return, No.1
77277 90445-12086 Hose, Fuel, No.2 (For Emission Tube, No.1)
77285 77285-91255 Support, Fuel Return And Main Tube
77289 77273-20010 Holder, Fuel Tank Pipe Setting
77308 77350-91255 Cover Sub-Assy, Fuel Inlet Box
77308 90541-08003 Cushion(For Inspection Opening)
77358 77358-20010 Stopper, Fuel Inlet Box
77651 77651-91255 Cushion, Fuel Tank, No.1 - FUEL TANK BRACKET
77651 77651-91602 Cushion, Fuel Tank, No.1 - FUEL TANK BRACKET
77651 77653-91602 Cushion, Fuel Tank, No.1
77740 77740-20180 Canister Assy, Charcoal
77740 95411-19930 Hose(For Carburetor To Manifold)
77740 90999-92002 Air Hose (300 mm)
77740 95332-08020 Hose, Fuel Pipe, No.1
77740 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77742 90413-04009 Way, 3(For Canister)
77750 77740-20190 Canister Assy, Charcoal
77750 23829-35010 Hose, Fuel, No.1 (For Charcoal Canister)
77750 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77750 90999-92003 Hose, Breather (For Transfer Case)
77750 77021-91255 Hose, Fuel, No.3 (For Charcoal Canister)
9016450048 90164-50048 SCREW
9016850008 90168-50008 New Genuine Part
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9018906010 90189-06010 Clip(For Front Door Inside Handle)
9046022023 90460-22023 New Genuine Part
9046310537 90463-10537 New Genuine Part
9046400089 90464-00089 New Genuine Part
9046400148 90464-00148 New Genuine Part
9046400156 90464-00156 Clamp, No.2(For Back Door Lock Control Cable)
9046400181 90464-00181 New Genuine Part
9046400255 90464-00255 New Genuine Part
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048001076 90480-01076 New Genuine Part
9048014004 90480-14004 Grommet (For Floor Shift Control Shaft)
9048020232 90480-20232 New Genuine Part
9048071414 90480-71414 New Genuine Part
9151140610 91511-40610 New Genuine Part
9151140610 91511-B0610 BOLT FLANGE
9165140614 91651-40614 Bolt
9165140620 91651-40620 BOLT
9165640818 91656-40818 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818 91651-B0814 Bolt with washer
9166560820 91665-60820 New Genuine Part
9166560820 91661-60816 Bolt
9331914010 93319-14010 SCREW
9331915008 93319-15008 SCREW
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9611110220 96111-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110630 96111-10630 Clamp, Hose
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
