Search › Model › RT134
RT134

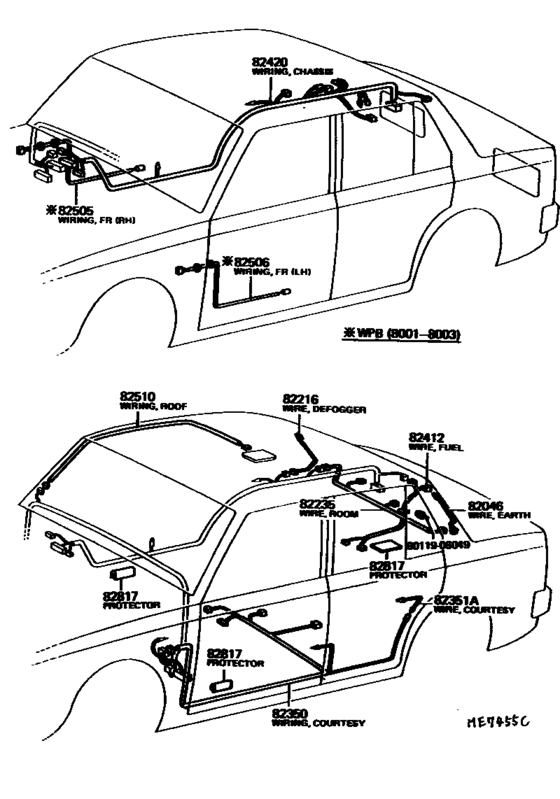

Wiring & Clamp ([09.1978 - ] (7809- )SED) 12
| # | OEM | Part name |
|---|---|---|
| 82046 | 82046-20050 | Wire Sub-Assy, Rear Window Defogger Earth |
| 82216 | 82216-20060 | Wire, Rear Window Defogger |
| 82235 | 82235-20010 | Wire, Room |
| 82350 | 82350-20161 | Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door) |
| 82412 | 82412-20070 | Wire, Fuel Gage |
| 82420 | 82420-20340 | Wiring Assy, Chassis |
| 82505 | 82505-20010 | Wiring Sub-Assy, Front Door, Rh |
| 82506 | 82506-20010 | Wiring Sub-Assy, Front Door, Lh |
| 82510 | 82510-20210 | Wiring Assy, Roof |
| 82817 | 82817-20160 | Protector, Wiring Harness, No.1 |
| 82817 | 82817-21030 | Protector, Wiring Harness, No.4 |
| 9011906049 | 90119-06049 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 82046-20050 | Wire Sub-Assy, Rear Window Defogger Earth | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82216-20060 | Wire, Rear Window Defogger | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82235-20010 | Wire, Room | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82350-20161 | Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door) | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82412-20070 | Wire, Fuel Gage | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82420-20340 | Wiring Assy, Chassis | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82505-20010 | Wiring Sub-Assy, Front Door, Rh | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82506-20010 | Wiring Sub-Assy, Front Door, Lh | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82510-20210 | Wiring Assy, Roof | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82817-20160 | Protector, Wiring Harness, No.1 | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 82817-21030 | Protector, Wiring Harness, No.4 | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
| 90119-06049 | New Genuine Part | Wiring & Clamp ([09.1978 - ] (7809- )SED) |
