Search › Model › RT134
RT134

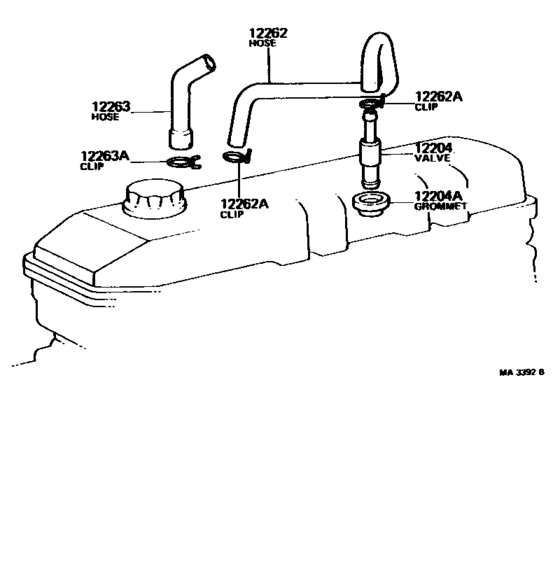

Ventilation Hose ([09.1978 - ] (7809- )) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-45010 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18180 | Grommet(For Ventilation System) |
| 12204 | 12204-31020 | Valve Sub-Assy, Ventilation |
| 12262 | 12261-38011 | Hose, Ventilation, No.2 |
| 12262 | 90467-16010 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12262-38010 | Hose, Ventilation, No.3 |
| 12263 | 90467-20020 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-31020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.1978 - ] (7809- )) |
| 12204-45010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.1978 - ] (7809- )) |
| 12261-38011 | Hose, Ventilation, No.2 | Ventilation Hose ([09.1978 - ] (7809- )) |
| 12262-38010 | Hose, Ventilation, No.3 | Ventilation Hose ([09.1978 - ] (7809- )) |
| 90467-16010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.1978 - ] (7809- )) |
| 90467-20020 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.1978 - ] (7809- )) |
| 90480-18180 | Grommet(For Ventilation System) | Ventilation Hose ([09.1978 - ] (7809- )) |
