Search › Model › RT115

RT115

Toyota CORONA · 1974 · 1,273 parts · 189 categories

1,273 items

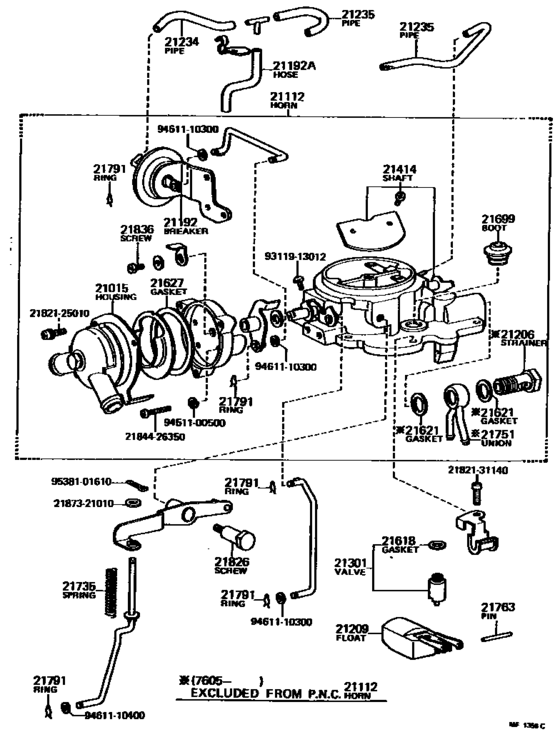

Carburetor ([09.1975 - 08.1976] (7509-7608)) 26

#	OEM	Part name
21209	21209-33011	Float Sub-Assy
2179440070	21794-40070	Ring, Retainer, No.1(For Throttle Shaft)
2182124030	21821-24030	Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010	21821-25010	Screw, Coil Housing Set
2182131140	21821-31140	Screw(For 2Nd Regulator Cover Set)
2183138010	21831-38010	Screw, Power Piston Stop
2183434140	21834-34140	Screw, Set, No.2(for Carburetor Body Set)
2184426350	21844-26350	Screw, Thermostat Case Set
2184538010	21845-38010	Screw, 1St Idle Set
2187321010	21873-21010	Washer, Plunger
2188544010	21885-44010	Washer(For Diaphragm Cap Set)
9311016035	93110-16035	Screw, Set(For 1St Idle Cam Follower Set)
9311913012	93119-13012	New Genuine Part
9321914016	93219-14016	Screw, 1St Idle Adjusting
9321914018	93219-14018	New Genuine Part
9321914020	93219-14020	New Genuine Part
9321915018	93219-15018	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100400	94511-00400	WASHERSPRING
9451100500	94511-00500	Washer, Cover Set, No.2
9451100800	94511-00800	WASHERSPRING
9451200600	94512-00600	Washer, Seal(For Head Cover Set)
9461110300	94611-10300	New Genuine Part
9461110400	94611-10400	New Genuine Part
9538101610	95381-01610	New Genuine Part

OEM	Part name	Category
21209-33011	Float Sub-Assy	Carburetor ([09.1975 - 08.1976] (7509-7608))
21794-40070	Ring, Retainer, No.1(For Throttle Shaft)	Carburetor ([09.1975 - 08.1976] (7509-7608))
21821-24030	Screw(For Vacuum Lock Diaphragm Ring Set)	Carburetor ([09.1975 - 08.1976] (7509-7608))
21821-25010	Screw, Coil Housing Set	Carburetor ([09.1975 - 08.1976] (7509-7608))
21821-31140	Screw(For 2Nd Regulator Cover Set)	Carburetor ([09.1975 - 08.1976] (7509-7608))
21831-38010	Screw, Power Piston Stop	Carburetor ([09.1975 - 08.1976] (7509-7608))
21834-34140	Screw, Set, No.2(for Carburetor Body Set)	Carburetor ([09.1975 - 08.1976] (7509-7608))
21844-26350	Screw, Thermostat Case Set	Carburetor ([09.1975 - 08.1976] (7509-7608))
21845-38010	Screw, 1St Idle Set	Carburetor ([09.1975 - 08.1976] (7509-7608))
21873-21010	Washer, Plunger	Carburetor ([09.1975 - 08.1976] (7509-7608))
21885-44010	Washer(For Diaphragm Cap Set)	Carburetor ([09.1975 - 08.1976] (7509-7608))
93110-16035	Screw, Set(For 1St Idle Cam Follower Set)	Carburetor ([09.1975 - 08.1976] (7509-7608))
93119-13012	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
93219-14016	Screw, 1St Idle Adjusting	Carburetor ([09.1975 - 08.1976] (7509-7608))
93219-14018	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
93219-14020	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
93219-15018	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
94110-40800	Nut(For Steering Damper)	Carburetor ([09.1975 - 08.1976] (7509-7608))
94130-00802	Nut, No.1 (For Center Support Bearing)	Carburetor ([09.1975 - 08.1976] (7509-7608))
94511-00400	WASHERSPRING	Carburetor ([09.1975 - 08.1976] (7509-7608))
94511-00500	Washer, Cover Set, No.2	Carburetor ([09.1975 - 08.1976] (7509-7608))
94511-00800	WASHERSPRING	Carburetor ([09.1975 - 08.1976] (7509-7608))
94512-00600	Washer, Seal(For Head Cover Set)	Carburetor ([09.1975 - 08.1976] (7509-7608))
94611-10300	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
94611-10400	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
95381-01610	New Genuine Part	Carburetor ([09.1975 - 08.1976] (7509-7608))
