Search › Model › RT105

RT105

Toyota CORONA · 1974 · 1,282 parts · 204 categories

← Back to categories

1,282 items

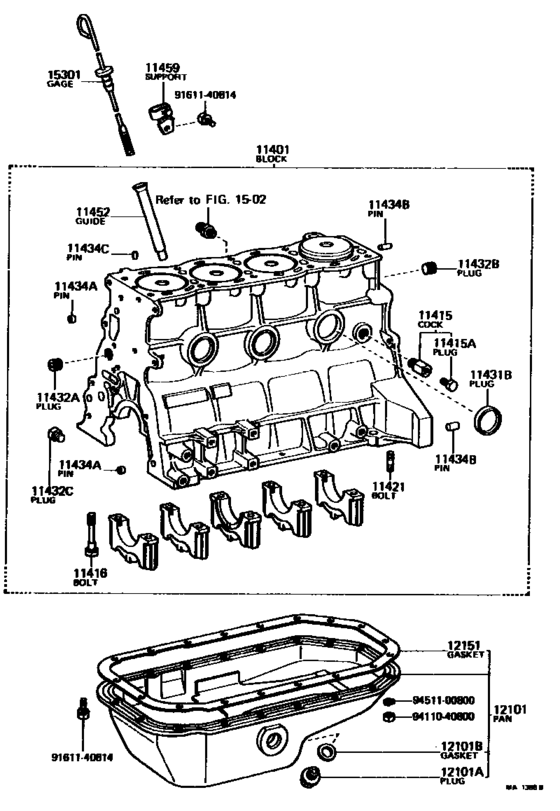

Cylinder Block ([08.1974 - 08.1978] (7408-7808)) 12

#	OEM	Part name
12101	90341-18089	Plug(For Oil Pan Drain)
12101	90033-41020	Plug(For Oil Pan Drain)
12101	90341-25054	Plug(For Oil Pan Drain)
12101	90430-18244	Gasket(For Oil Pan Drain Plug)
12101	90430-18023	Gasket(For Oil Pan)
12101	90430-25013	Gasket(For Oil Pan Drain Plug)
12101	90430-25003	Gasket(For Oil Pan Drain Plug)
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
90033-41020	Plug(For Oil Pan Drain)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
90341-18089	Plug(For Oil Pan Drain)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
90341-25054	Plug(For Oil Pan Drain)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
90430-18023	Gasket(For Oil Pan)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
90430-18244	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
90430-25003	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
90430-25013	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
91611-60814	Bolt	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
94110-40800	Nut(For Steering Damper)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
94130-00802	Nut, No.1 (For Center Support Bearing)	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
94511-00800	WASHERSPRING	Cylinder Block ([08.1974 - 08.1978] (7408-7808))
