Search › Model › RT100

RT100

Toyota CORONA · 1973 · 4,139 parts · 172 categories

4,139 items

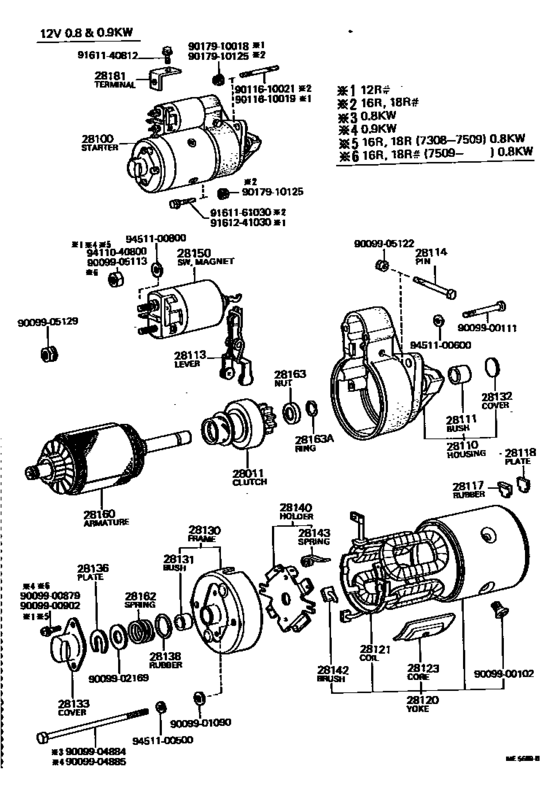

Starter ([08.1973 - 05.1979] (7308-7905)) 62

#	OEM	Part name
28011	28011-41011	Clutch Sub-Assy, Starter
28100	28100-40014	Starter Assy
28100	28100-31021	Starter Assy
28100	28100-40015	Starter Assy
28110	28110-40019	Housing Assy, Starter Drive
28110	28110-40030	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28113	28113-41011	Lever, Starter Pinion Drive
28114	28114-41011	Pin, Starter Drive Lever Set
28117	28117-41012	Rubber(For Starter Yoke)
28118	28118-41012	Plate(For Starter Yoke)
28118	28118-41013	Plate(For Starter Yoke)
28120	28120-89101	Yoke Assy, Starter
28120	28120-36040	Yoke Assy, Starter
28121	28121-40014	Coil, Starter Field
28121	28121-36040	Coil, Starter Field
28123	28123-40012	Core, Starter Pole
28130	28130-21011	Frame Assy, Starter Commutator End
28131	28131-20010	Bush, Commutator End Frame
28131	90099-10039	Bush, Commutator End Frame
28131	90099-10040	Bush, Commutator End Frame
28132	28166-41011	Cover, Starter Bearing(For Drive Housing)
28133	28132-41011	Cover, Bearing(For End Frame)
28136	28136-41011	Plate, Starter Lock
28138	28138-41011	Rubber(For Starter Bearing Cover)
28140	28140-41013	Holder Assy, Starter Brush
28142	28142-21010	Brush, Starter
28143	28143-40010	Spring, Starter Brush
28143	28143-40040	Spring, Starter Brush
28150	28150-22011	Switch Assy, Magnet Starter
28160	28160-40014	Armature Assy, Starter
28162	28162-41011	Spring, Starter Brake
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
28181	28181-20010	Terminal, Starter
28181	28181-20011	Terminal, Starter
9009900102	90099-00102	New Genuine Part
9009900111	90099-00111	New Genuine Part
9009900879	90099-00879	Screw, W/washer(For Bearing Cover Setting)
9009900902	90099-00902	Screw, W/washer(For Bearing Cover Setting)
9009901090	90099-01090	New Genuine Part
9009902169	90099-02169	New Genuine Part
9009904884	90099-04884	Bolt(For Starter Commutator End Frame Setting)
9009904885	90099-04885	New Genuine Part
9009905113	90099-05113	New Genuine Part
9009905122	90099-05122	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9011610019	90116-10019	Bolt, Stud(For Manifold To Exhaust Pipe)
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9017910018	90179-10018	New Genuine Part
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161241030	91612-41030	Bolt (for Transmission Control Cable Bracket)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100500	94511-00500	Washer, Cover Set, No.2
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-41011	Clutch Sub-Assy, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28100-31021	Starter Assy	Starter ([08.1973 - 05.1979] (7308-7905))
28100-40014	Starter Assy	Starter ([08.1973 - 05.1979] (7308-7905))
28100-40015	Starter Assy	Starter ([08.1973 - 05.1979] (7308-7905))
28110-40019	Housing Assy, Starter Drive	Starter ([08.1973 - 05.1979] (7308-7905))
28110-40030	Housing Assy, Starter Drive	Starter ([08.1973 - 05.1979] (7308-7905))
28111-51011	Bush(For Starter Housing)	Starter ([08.1973 - 05.1979] (7308-7905))
28113-41011	Lever, Starter Pinion Drive	Starter ([08.1973 - 05.1979] (7308-7905))
28114-41011	Pin, Starter Drive Lever Set	Starter ([08.1973 - 05.1979] (7308-7905))
28117-41012	Rubber(For Starter Yoke)	Starter ([08.1973 - 05.1979] (7308-7905))
28118-41012	Plate(For Starter Yoke)	Starter ([08.1973 - 05.1979] (7308-7905))
28118-41013	Plate(For Starter Yoke)	Starter ([08.1973 - 05.1979] (7308-7905))
28120-36040	Yoke Assy, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28120-89101	Yoke Assy, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28121-36040	Coil, Starter Field	Starter ([08.1973 - 05.1979] (7308-7905))
28121-40014	Coil, Starter Field	Starter ([08.1973 - 05.1979] (7308-7905))
28123-40012	Core, Starter Pole	Starter ([08.1973 - 05.1979] (7308-7905))
28130-21011	Frame Assy, Starter Commutator End	Starter ([08.1973 - 05.1979] (7308-7905))
28131-20010	Bush, Commutator End Frame	Starter ([08.1973 - 05.1979] (7308-7905))
28132-41011	Cover, Bearing(For End Frame)	Starter ([08.1973 - 05.1979] (7308-7905))
28136-41011	Plate, Starter Lock	Starter ([08.1973 - 05.1979] (7308-7905))
28138-41011	Rubber(For Starter Bearing Cover)	Starter ([08.1973 - 05.1979] (7308-7905))
28140-41013	Holder Assy, Starter Brush	Starter ([08.1973 - 05.1979] (7308-7905))
28142-21010	Brush, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28143-40010	Spring, Starter Brush	Starter ([08.1973 - 05.1979] (7308-7905))
28143-40040	Spring, Starter Brush	Starter ([08.1973 - 05.1979] (7308-7905))
28150-22011	Switch Assy, Magnet Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28160-40014	Armature Assy, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28162-41011	Spring, Starter Brake	Starter ([08.1973 - 05.1979] (7308-7905))
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28166-41011	Cover, Starter Bearing(For Drive Housing)	Starter ([08.1973 - 05.1979] (7308-7905))
28181-20010	Terminal, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
28181-20011	Terminal, Starter	Starter ([08.1973 - 05.1979] (7308-7905))
90099-00102	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-00111	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-00879	Screw, W/washer(For Bearing Cover Setting)	Starter ([08.1973 - 05.1979] (7308-7905))
90099-00902	Screw, W/washer(For Bearing Cover Setting)	Starter ([08.1973 - 05.1979] (7308-7905))
90099-01090	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-02169	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-04884	Bolt(For Starter Commutator End Frame Setting)	Starter ([08.1973 - 05.1979] (7308-7905))
90099-04885	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-05113	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-05122	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1973 - 05.1979] (7308-7905))
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([08.1973 - 05.1979] (7308-7905))
90099-10039	Bush, Commutator End Frame	Starter ([08.1973 - 05.1979] (7308-7905))
90099-10040	Bush, Commutator End Frame	Starter ([08.1973 - 05.1979] (7308-7905))
90116-10019	Bolt, Stud(For Manifold To Exhaust Pipe)	Starter ([08.1973 - 05.1979] (7308-7905))
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([08.1973 - 05.1979] (7308-7905))
90179-10018	New Genuine Part	Starter ([08.1973 - 05.1979] (7308-7905))
90179-10125	Nut(For Counter Gear Shaft)	Starter ([08.1973 - 05.1979] (7308-7905))
90179-10132	Nut	Starter ([08.1973 - 05.1979] (7308-7905))
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Starter ([08.1973 - 05.1979] (7308-7905))
91611-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([08.1973 - 05.1979] (7308-7905))
91611-B0812	Bolt	Starter ([08.1973 - 05.1979] (7308-7905))
91612-41030	Bolt (for Transmission Control Cable Bracket)	Starter ([08.1973 - 05.1979] (7308-7905))
91612-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([08.1973 - 05.1979] (7308-7905))
94110-40800	Nut(For Steering Damper)	Starter ([08.1973 - 05.1979] (7308-7905))
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1973 - 05.1979] (7308-7905))
94511-00500	Washer, Cover Set, No.2	Starter ([08.1973 - 05.1979] (7308-7905))
94511-00600	Washer, Lock, No.2	Starter ([08.1973 - 05.1979] (7308-7905))
94511-00800	WASHERSPRING	Starter ([08.1973 - 05.1979] (7308-7905))
