Search › Model › RT100
RT100

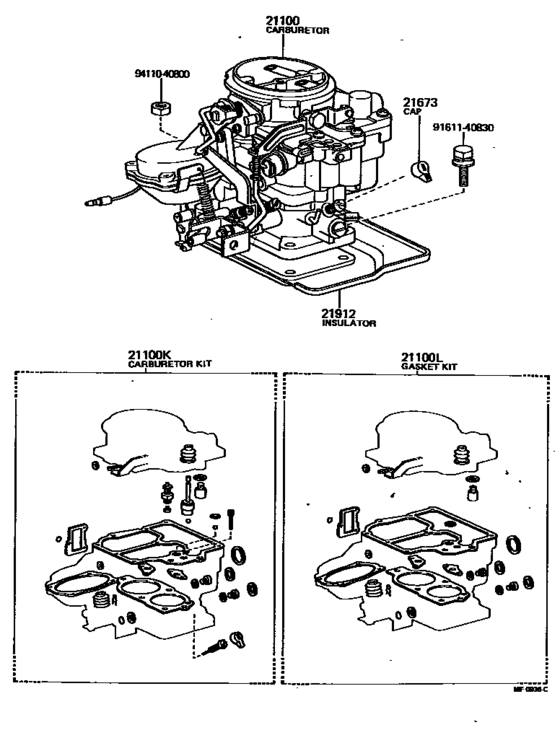

Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) 8
| # | OEM | Part name |
|---|---|---|
| 21100 | 21100-31320 | Carburetor Assy |
| 21100 | 04211-31120 | Carburetor Kit |
| 21100 | 04212-31050 | Gasket Kit, Carburetor |
| 21912 | 21912-31040 | Insulator, Carburetor Heat |
| 9161140830 | 91611-40830 | Bolt(For Clutch Release Cylinder Setting) |
| 9161140830 | 91611-60830 | Bolt(For Clutch Release Cylinder Setting) |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04211-31120 | Carburetor Kit | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 04212-31050 | Gasket Kit, Carburetor | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 21100-31320 | Carburetor Assy | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 21912-31040 | Insulator, Carburetor Heat | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 91611-40830 | Bolt(For Clutch Release Cylinder Setting) | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 91611-60830 | Bolt(For Clutch Release Cylinder Setting) | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([11.1975 - 08.1978] (7511-7808)12R#) |
