Search › Model › RT100

RT100

Toyota CORONA · 1973 · 4,139 parts · 172 categories
RT100 ×

← Back to categories

4,139 items

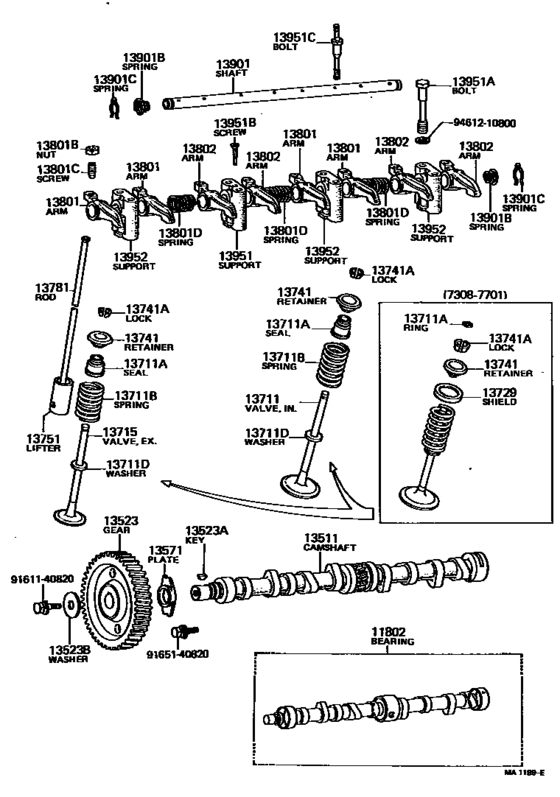

Camshaft & Valve ([08.1973 - 08.1978] (7308-7808)12R#) 52
#OEMPart name
11802 11802-31010 Bearing Set, Camshaft
11802 11804-31010 Bearing Set, Camshaft
11802 11805-31010 Bearing Set, Camshaft
13523 13523-31011 Gear Or Sprocket, Camshaft Timing
13523 95161-10519 Key(For Oil Pump Drive Spline)
13523 90201-08120 Washer, Plate(For Timing Gear)
13571 13571-31010 Plate, Camshaft Thrust
13711 13711-31030 Valve, Intake
13711 13711-31050 Valve, Intake
13711 90301-06096 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02033 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-45005 Spring, Compression(For Inner)
13711 90201-15387 Washer, Plate(For Valve Spring Seat)
13715 13715-31030 Valve, Exhaust
13715 13715-31070 Valve, Exhaust
13729 13729-31031 Shield, Valve Stem Oil
13741 13741-25012 Retainer, Valve Spring
13741 13741-31014 Retainer, Valve Spring
13741 13741-31013 Retainer, Valve Spring
13741 90913-03005 Lock, Valve Spring Retainer
13741 90913-03014 Lock, Valve Spring Retainer
13751 13751-31020 Lifter, Valve
13751 13751-44030 Lifter, Valve
13751 13755-31020 Lifter, Valve
13751 13755-44030 Lifter, Valve
13781 13781-31021 Rod, Valve Push
13781 13781-31022 Rod, Valve Push
13801 13811-31021 Arm Sub-Assy, Valve Rocker, No.1
13801 13811-31H00 Arm Sub-Assy, Valve Rocker, No.1
13801 13811-31022 Arm Sub-Assy, Valve Rocker, No.1
13801 90170-08094 Nut, Hexagon(For Valve Adjusting)
13801 90170-08005 Nut, Hexagon(For Valve Adjusting)
13801 90170-10074 Nut, Hexagon(For Valve Adjusting)
13801 90913-05010 Screw, Valve Adjusting
13801 90913-05013 Screw, Valve Adjusting
13801 90913-05020 Screw, Valve Adjusting
13801 90501-16098 Spring, Compression(For Rocker Arm)
13801 90501-16163 Spring, Compression(For Rocker Arm)
13802 13812-31021 Arm Sub-Assy, Valve Rocker, No.2
13802 13812-31H00 Arm Sub-Assy, Valve Rocker, No.2
13802 13812-31022 Arm Sub-Assy, Valve Rocker, No.2
13901 13901-31020 Shaft Sub-Assy, Valve Rocker, No.1
13901 90502-16004 Spring, Conical(For Valve Rocker Shaft)
13901 90524-15008 Spring, Retainer(For Valve Rocker Shaft)
13951 13951-31020 Support, Valve Rocker, No.1
13951 90910-01010 Bolt(For Rocker Support Set)
13951 90151-40010 Screw Or Bolt(For Valve Rocker Shaft Lock)
13951 13955-31010 Bolt, Stud(For Rocker Support)
13952 13952-31010 Support, Valve Rocker, No.2
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9165140820 91651-40820 Bolt
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
