RS80

Toyota CROWN-MAJESTA · 1974 · 4,902 parts · 169 categories

4,902 items

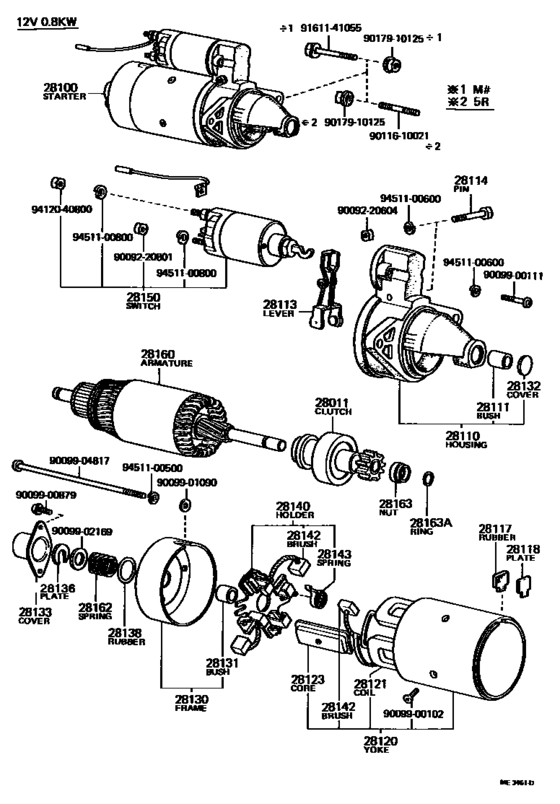

Starter ([10.1974 - 08.1978] (7410-7808)5R) 83

#	OEM	Part name
28011	28011-41011	Clutch Sub-Assy, Starter
28011	28011-41020	Clutch Sub-Assy, Starter
28100	28100-33011	Starter Assy
28100	28100-37011	Starter Assy
28100	28100-36070	Starter Assy
28100	28100-40060	Starter Assy
28100	28100-35110	Starter Assy
28100	28100-44040	Starter Assy
28100	28100-35120	Starter Assy
28110	28110-40045	Housing Assy, Starter Drive
28110	28110-40061	Housing Assy, Starter Drive
28110	28110-44040	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28113	28113-41011	Lever, Starter Pinion Drive
28114	28114-41011	Pin, Starter Drive Lever Set
28117	28117-41012	Rubber(For Starter Yoke)
28117	28117-41013	Rubber(For Starter Yoke)
28117	28117-41020	Rubber(For Starter Yoke)
28118	28118-41012	Plate(For Starter Yoke)
28118	28118-41013	Plate(For Starter Yoke)
28120	28120-36040	Yoke Assy, Starter
28120	28120-40061	Yoke Assy, Starter
28120	28120-40062	Yoke Assy, Starter
28120	28120-44040	Yoke Assy, Starter
28120	28120-44041	Yoke Assy, Starter
28120	28120-89101	Yoke Assy, Starter
28121	28121-36040	Coil, Starter Field
28121	28121-40014	Coil, Starter Field
28121	28121-41020	Coil, Starter Field
28123	28123-40012	Core, Starter Pole
28123	28123-41020	Core, Starter Pole
28130	28130-21011	Frame Assy, Starter Commutator End
28130	28130-40060	Frame Assy, Starter Commutator End
28131	28131-20010	Bush, Commutator End Frame
28131	90099-10039	Bush, Commutator End Frame
28131	90099-10040	Bush, Commutator End Frame
28132	28166-41011	Cover, Starter Bearing(For Drive Housing)
28133	28132-40010	Cover, Bearing(For End Frame)
28133	28132-41011	Cover, Bearing(For End Frame)
28136	28136-40010	Plate, Starter Lock
28136	28136-41011	Plate, Starter Lock
28138	28138-40010	Rubber(For Starter Bearing Cover)
28138	28138-26030	Rubber(For Starter Bearing Cover)
28138	28138-41011	Rubber(For Starter Bearing Cover)
28140	28140-25020	Holder Assy, Starter Brush
28140	28140-41012	Holder Assy, Starter Brush
28140	28140-41013	Holder Assy, Starter Brush
28140	28140-41020	Holder Assy, Starter Brush
28142	28142-10011	Brush, Starter
28142	28142-21010	Brush, Starter
28142	28142-25011	Brush, Starter
28142	28142-25020	Brush, Starter
28143	28143-40010	Spring, Starter Brush
28143	28143-40040	Spring, Starter Brush
28150	28150-22011	Switch Assy, Magnet Starter
28150	28150-33020	Switch Assy, Magnet Starter
28150	28150-41011	Switch Assy, Magnet Starter
28160	28160-40014	Armature Assy, Starter
28160	28160-41020	Armature Assy, Starter
28162	28162-41011	Spring, Starter Brake
28162	28162-41022	Spring, Starter Brake
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
9009220604	90092-20604	Nut, Wire Adjusting, No.1
9009220604	94120-40600	Nut, Wire Adjusting, No.1
9009220801	90092-20801	New Genuine Part
9009220801	90099-05809	New Genuine Part
9009900102	90099-00102	New Genuine Part
9009900111	90099-00111	New Genuine Part
9009900879	90099-00879	Screw, W/washer(For Bearing Cover Setting)
9009901090	90099-01090	New Genuine Part
9009902169	90099-02169	New Genuine Part
9009904817	90099-04817	Bolt(For Starter Commutator End Frame Setting)
9009904817	90099-04884	Bolt(For Starter Commutator End Frame Setting)
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161141055	91611-41055	Bolt(For Clutch Release Cylinder Setting)
9161141055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451100500	94511-00500	Washer, Cover Set, No.2
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-41011	Clutch Sub-Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28011-41020	Clutch Sub-Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-33011	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-35110	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-35120	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-36070	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-37011	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-40060	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28100-44040	Starter Assy	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28110-40045	Housing Assy, Starter Drive	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28110-40061	Housing Assy, Starter Drive	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28110-44040	Housing Assy, Starter Drive	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28111-51011	Bush(For Starter Housing)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28113-41011	Lever, Starter Pinion Drive	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28114-41011	Pin, Starter Drive Lever Set	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28117-41012	Rubber(For Starter Yoke)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28117-41013	Rubber(For Starter Yoke)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28117-41020	Rubber(For Starter Yoke)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28118-41012	Plate(For Starter Yoke)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28118-41013	Plate(For Starter Yoke)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28120-36040	Yoke Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28120-40061	Yoke Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28120-40062	Yoke Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28120-44040	Yoke Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28120-44041	Yoke Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28120-89101	Yoke Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28121-36040	Coil, Starter Field	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28121-40014	Coil, Starter Field	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28121-41020	Coil, Starter Field	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28123-40012	Core, Starter Pole	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28123-41020	Core, Starter Pole	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28130-21011	Frame Assy, Starter Commutator End	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28130-40060	Frame Assy, Starter Commutator End	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28131-20010	Bush, Commutator End Frame	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28132-40010	Cover, Bearing(For End Frame)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28132-41011	Cover, Bearing(For End Frame)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28136-40010	Plate, Starter Lock	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28136-41011	Plate, Starter Lock	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28138-26030	Rubber(For Starter Bearing Cover)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28138-40010	Rubber(For Starter Bearing Cover)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28138-41011	Rubber(For Starter Bearing Cover)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28140-25020	Holder Assy, Starter Brush	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28140-41012	Holder Assy, Starter Brush	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28140-41013	Holder Assy, Starter Brush	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28140-41020	Holder Assy, Starter Brush	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28142-10011	Brush, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28142-21010	Brush, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28142-25011	Brush, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28142-25020	Brush, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28143-40010	Spring, Starter Brush	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28143-40040	Spring, Starter Brush	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28150-22011	Switch Assy, Magnet Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28150-33020	Switch Assy, Magnet Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28150-41011	Switch Assy, Magnet Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28160-40014	Armature Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28160-41020	Armature Assy, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28162-41011	Spring, Starter Brake	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28162-41022	Spring, Starter Brake	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([10.1974 - 08.1978] (7410-7808)5R)
28166-41011	Cover, Starter Bearing(For Drive Housing)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90092-20604	Nut, Wire Adjusting, No.1	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90092-20801	New Genuine Part	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-00102	New Genuine Part	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-00111	New Genuine Part	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-00879	Screw, W/washer(For Bearing Cover Setting)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-01090	New Genuine Part	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-02169	New Genuine Part	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-04817	Bolt(For Starter Commutator End Frame Setting)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-04884	Bolt(For Starter Commutator End Frame Setting)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-05809	New Genuine Part	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-10039	Bush, Commutator End Frame	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90099-10040	Bush, Commutator End Frame	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90179-10125	Nut(For Counter Gear Shaft)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
90179-10132	Nut	Starter ([10.1974 - 08.1978] (7410-7808)5R)
91611-41055	Bolt(For Clutch Release Cylinder Setting)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
94120-40600	Nut, Wire Adjusting, No.1	Starter ([10.1974 - 08.1978] (7410-7808)5R)
94120-40800	Nut(For Clutch Pedal Stopper)	Starter ([10.1974 - 08.1978] (7410-7808)5R)
94511-00500	Washer, Cover Set, No.2	Starter ([10.1974 - 08.1978] (7410-7808)5R)
94511-00600	Washer, Lock, No.2	Starter ([10.1974 - 08.1978] (7410-7808)5R)
94511-00800	WASHERSPRING	Starter ([10.1974 - 08.1978] (7410-7808)5R)
