RS80

Toyota CROWN-MAJESTA · 1974 · 4,902 parts · 169 categories
RS80 ×

← Back to categories

4,902 items

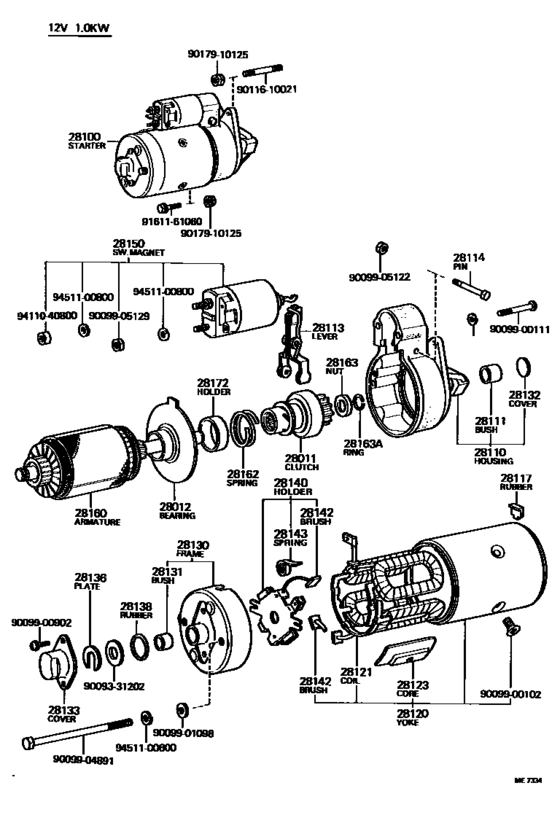

Starter ([09.1978 - 08.1979] (7809-7908)5R) 82
#OEMPart name
28011 28011-41011 Clutch Sub-Assy, Starter
28011 28011-41020 Clutch Sub-Assy, Starter
28012 28126-33021 Bearing Sub-Assy, Center
28012 28126-33020 Bearing Sub-Assy, Center
28012 28126-40061 Bearing Sub-Assy, Center
28100 28100-33011 Starter Assy
28100 28100-37011 Starter Assy
28100 28100-36070 Starter Assy
28100 28100-40060 Starter Assy
28100 28100-35110 Starter Assy
28100 28100-44040 Starter Assy
28100 28100-35120 Starter Assy
28110 28110-40045 Housing Assy, Starter Drive
28110 28110-40061 Housing Assy, Starter Drive
28110 28110-44040 Housing Assy, Starter Drive
28111 28111-51011 Bush(For Starter Housing)
28113 28113-41011 Lever, Starter Pinion Drive
28114 28114-41011 Pin, Starter Drive Lever Set
28117 28117-41012 Rubber(For Starter Yoke)
28117 28117-41013 Rubber(For Starter Yoke)
28117 28117-41020 Rubber(For Starter Yoke)
28120 28120-36040 Yoke Assy, Starter
28120 28120-40061 Yoke Assy, Starter
28120 28120-40062 Yoke Assy, Starter
28120 28120-44040 Yoke Assy, Starter
28120 28120-44041 Yoke Assy, Starter
28120 28120-89101 Yoke Assy, Starter
28121 28121-36040 Coil, Starter Field
28121 28121-40014 Coil, Starter Field
28121 28121-41020 Coil, Starter Field
28123 28123-40012 Core, Starter Pole
28123 28123-41020 Core, Starter Pole
28130 28130-21011 Frame Assy, Starter Commutator End
28130 28130-40060 Frame Assy, Starter Commutator End
28131 28131-20010 Bush, Commutator End Frame
28131 90099-10039 Bush, Commutator End Frame
28131 90099-10040 Bush, Commutator End Frame
28132 28166-41011 Cover, Starter Bearing(For Drive Housing)
28133 28132-40010 Cover, Bearing(For End Frame)
28133 28132-41011 Cover, Bearing(For End Frame)
28136 28136-40010 Plate, Starter Lock
28136 28136-41011 Plate, Starter Lock
28138 28138-40010 Rubber(For Starter Bearing Cover)
28138 28138-26030 Rubber(For Starter Bearing Cover)
28138 28138-41011 Rubber(For Starter Bearing Cover)
28140 28140-25020 Holder Assy, Starter Brush
28140 28140-41012 Holder Assy, Starter Brush
28140 28140-41013 Holder Assy, Starter Brush
28140 28140-41020 Holder Assy, Starter Brush
28142 28142-10011 Brush, Starter
28142 28142-21010 Brush, Starter
28142 28142-25011 Brush, Starter
28142 28142-25020 Brush, Starter
28143 28143-40010 Spring, Starter Brush
28143 28143-40040 Spring, Starter Brush
28150 28150-22011 Switch Assy, Magnet Starter
28150 28150-33020 Switch Assy, Magnet Starter
28150 28150-41011 Switch Assy, Magnet Starter
28160 28160-40014 Armature Assy, Starter
28160 28160-41020 Armature Assy, Starter
28162 28162-41011 Spring, Starter Brake
28162 28162-41022 Spring, Starter Brake
28163 28163-40011 Nut Or Collar, Pinion Stop, Starter
28163 90099-07047 Ring, Snap(For Starter Pinion Stop Nut)
28172 28172-41021 Holder, Starter Spring
9009331202 90093-31202 Washer, No.2(For Governor Shaft Thrust)
9009900102 90099-00102 New Genuine Part
9009900111 90099-00111 New Genuine Part
9009900902 90099-00902 Screw, W/washer(For Bearing Cover Setting)
9009901098 90099-01098 New Genuine Part
9009904891 90099-04891 New Genuine Part
9009905122 90099-05122 New Genuine Part
9009905129 90099-05129 Nut (For Front Wiper Arm Setting)
9011610021 90116-10021 Bolt, Stud(For Manifold To Cylinder Head)
9017910125 90179-10125 Nut(For Counter Gear Shaft)
9017910125 90179-10132 Nut
9161161060 91611-61060 Bolt(for Clutch Release Cylinder Setting)
9161161060 91612-61060 Bolt(for Clutch Release Cylinder Setting)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100600 94511-00600 Washer, Lock, No.2
9451100800 94511-00800 WASHERSPRING
