Search › Model › RS80

RS80

Toyota CROWN-MAJESTA · 1974 · 4,902 parts · 169 categories

4,902 items

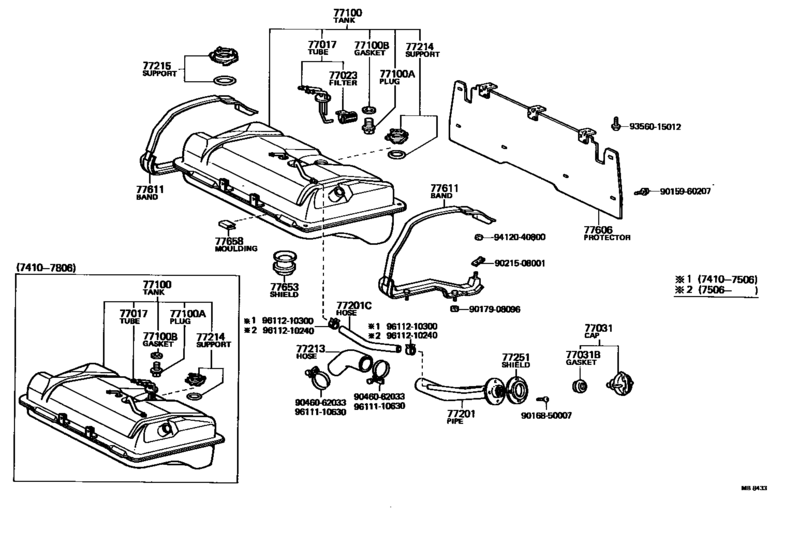

Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80) 42

#	OEM	Part name
77017	77017-30040	Tube Sub-Assy, Fuel And Evaporation Vent
77017	77017-30041	Tube Sub-Assy, Fuel And Evaporation Vent
77023	77023-12031	Filter Sub-Assy, Fuel Suction Tube
77031	77310-14070	Cap Assy, Fuel Tank
77031	77310-30050	Cap Assy, Fuel Tank
77031	77316-12040	Gasket (For Fuel Tank Cap)
77031	77316-12050	Gasket (For Fuel Tank Cap)
77031	77316-12060	Gasket (For Fuel Tank Cap)
77100	77001-30180	Tank Assy, Fuel
77100	77001-30182	Tank Assy, Fuel
77100	77201-30121	Pipe Sub-Assy, Fuel Tank Inlet
77100	77213-30021	Hose, Fuel Tank Sub Inlet
77100	90445-22978	Hose, Fuel, No.3(For Fuel Tank Inlet Pipe)
77100	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)
77100	77001-30181	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77201	77201-30120	Pipe Sub-Assy, Fuel Tank Inlet
77201	90445-29001	Hose, Fuel, No.3(For Fuel Tank Inlet Pipe)
77213	77213-30020	Hose, Fuel Tank Sub Inlet
77214	04772-12010	Support Kit, Fuel Tank Tube
77215	04772-12020	Support Kit, Fuel Tank Gage - FUEL TANK INLET
77251	77291-12010	Shield, Fuel Tank, Inlet, No.1
77606	77606-30021	Protector Sub-Assy, Fuel Tank, No.1
77606	77606-30040	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-30060	Band, Fuel Tank
77611	77602-30020	Band, Fuel Tank
77653	77292-12010	Shield, Fuel Tank Drain Plug
77658	77658-30020	Moulding, Fuel Tank Edge
77658	77658-30030	Moulding, Fuel Tank Edge
9015960207	90159-60207	New Genuine Part
9016850007	90168-50007	New Genuine Part
9017908096	90179-08096	NUT
9017908096	90080-18061	New Genuine Part
9021508001	90215-08001	New Genuine Part
9046062033	90460-62033	Clamp(For Air Cleaner Hose, No.1)
9046062033	96111-10620	Clamp, Hose(For Air Connector)
9356015012	93560-15012	New Genuine Part
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9611110630	96111-10630	Clamp, Hose
9611210240	96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)
9611210300	96112-10300	Clamp Or Clip, No.2(For Air Injection System Hose, No.2)

OEM	Part name	Category
04772-12010	Support Kit, Fuel Tank Tube	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
04772-12020	Support Kit, Fuel Tank Gage - FUEL TANK INLET	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77001-30180	Tank Assy, Fuel	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77001-30181	Tank Assy, Fuel	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77001-30182	Tank Assy, Fuel	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77017-30040	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77017-30041	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77023-12031	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77201-30120	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77201-30121	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77213-30020	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77213-30021	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77291-12010	Shield, Fuel Tank, Inlet, No.1	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77292-12010	Shield, Fuel Tank Drain Plug	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77310-14070	Cap Assy, Fuel Tank	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77310-30050	Cap Assy, Fuel Tank	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77316-12040	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77316-12060	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77601-30060	Band, Fuel Tank	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77602-30020	Band, Fuel Tank	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77606-30021	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77606-30040	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77658-30020	Moulding, Fuel Tank Edge	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
77658-30030	Moulding, Fuel Tank Edge	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90080-18061	New Genuine Part	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90159-60207	New Genuine Part	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90168-50007	New Genuine Part	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90179-08096	NUT	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90215-08001	New Genuine Part	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90445-22978	Hose, Fuel, No.3(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90445-29001	Hose, Fuel, No.3(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
90460-62033	Clamp(For Air Cleaner Hose, No.1)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
93560-15012	New Genuine Part	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
94120-40800	Nut(For Clutch Pedal Stopper)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
96111-10620	Clamp, Hose(For Air Connector)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)
96112-10300	Clamp Or Clip, No.2(For Air Injection System Hose, No.2)	Fuel Tank & Tube ([10.1974 - 08.1979] (7410-7908)MS85,95,RS80)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 169
Collected: 2026-08-03
