Search › Model › RS80

RS80

Toyota CROWN-MAJESTA · 1974 · 4,902 parts · 169 categories

4,902 items

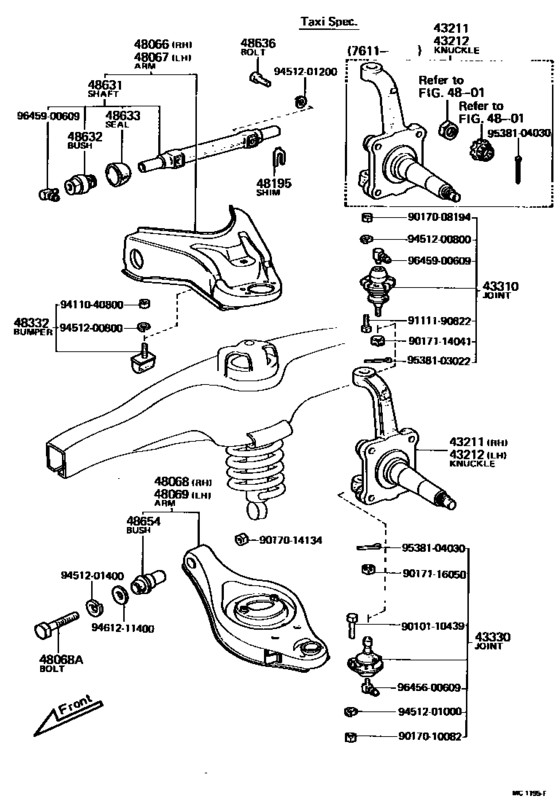

Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H) 58

#	OEM	Part name
43211	43211-30070	Knuckle, Steering, Rh
43211	43211-39015	Knuckle, Steering, Rh
43211	43211-30080	Knuckle, Steering, Rh
43211	43211-39025	Knuckle, Steering, Rh
43211	43211-30100	Knuckle, Steering, Rh
43212	43212-30040	Knuckle, Steering, Lh
43212	43212-39015	Knuckle, Steering, Lh
43212	43212-30050	Knuckle, Steering, Lh
43310	43360-39015	Joint Assy, Upper Ball
43310	43360-39055	Joint Assy, Upper Ball
43330	43330-39055	Joint Assy, Lower Ball, Front
43330	43330-39155	Joint Assy, Lower Ball, Front Rh
43330	43340-39035	Joint Assy, Lower Ball, Front
43330	43340-39135	Joint Assy, Lower Ball, Front Lh
48066	48066-30040	Arm Sub-Assy, Front Suspension, Upper Rh
48066	48066-39015	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-30040	Arm Sub-Assy, Front Suspension, Upper Lh
48067	48067-39015	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-30041	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-39015	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-39025	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-39035	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-39045	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90101-14204	Bolt(For Front Suspension Lower Arm)
48069	48069-30041	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-39015	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-39025	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-39035	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-39045	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48195	90565-12023	Shim, Camber Adjust
48195	90565-12024	Shim, Camber Adjust
48195	90565-12025	Shim, Camber Adjust
48332	48305-39015	Bumper, Front Spring, No.1
48332	48305-30030	Bumper Sub-Assy, Front Spring, No.2
48631	04485-30040	Shaft Kit, Upper Suspension Arm
48632	48632-39016	Bush, Upper Arm
48632	48632-39025	Bush, Upper Arm
48636	90101-12297	Bolt, Upper Arm Set
48654	48654-30010	Bush, Lower Arm
48654	48654-30020	Bush, Lower Arm
9010110439	90101-10439	Bolt (For Front Lower Ball Joint)
9017008194	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
9017008194	94130-00802	Nut, No.1 (For Center Support Bearing)
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017014134	90170-14134	New Genuine Part
9017114041	90171-14041	Nut, Castle(For Tie Rod End)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9111190822	91111-90822	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9461211400	94612-11400	WASHERPLATE
9538103022	95381-03022	Cotter pin
9538104030	95381-04030	PIN
9645600609	96456-00609	FITTING GREASE
9645900609	96459-00609	Fitting, Grease

OEM	Part name	Category
04485-30040	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43211-30070	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43211-30080	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43211-30100	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43211-39015	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43211-39025	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43212-30040	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43212-30050	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43212-39015	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43330-39055	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43330-39155	Joint Assy, Lower Ball, Front Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43340-39035	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43340-39135	Joint Assy, Lower Ball, Front Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43360-39015	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
43360-39055	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48066-30040	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48066-39015	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48067-30040	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48067-39015	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48068-30041	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48068-39015	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48068-39025	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48068-39035	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48068-39045	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48069-30041	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48069-39015	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48069-39025	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48069-39035	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48069-39045	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48305-30030	Bumper Sub-Assy, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48305-39015	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48632-39016	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48632-39025	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48654-30010	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
48654-30020	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90101-10439	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90101-12297	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90101-14204	Bolt(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90170-10082	Nut, Hexagon (For Control Rod Setting)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90170-14134	New Genuine Part	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90171-14041	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90565-12023	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90565-12024	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
90565-12025	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
91111-90822	New Genuine Part	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94110-40800	Nut(For Steering Damper)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94130-00802	Nut, No.1 (For Center Support Bearing)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94512-01200	Washer	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94512-01400	Washer(For Rear Spring U Bolt)	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
94612-11400	WASHERPLATE	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
95381-03022	Cotter pin	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
96456-00609	FITTING GREASE	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
96459-00609	Fitting, Grease	Front Axle Arm & Steering Knuckle ([02.1978 - 08.1979] (7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..B TP ; (7802-7908)RS80..LHD..4F,4H)
