RS80

Toyota CROWN-MAJESTA · 1974 · 4,902 parts · 169 categories
RS80 ×

← Back to categories

4,902 items

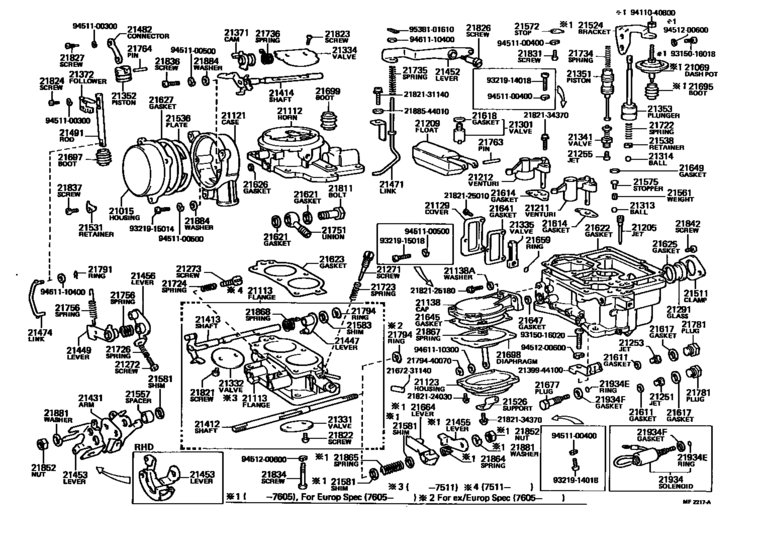

Carburetor ([06.1977 - 08.1979] (7410-7706)5R ; (7706-7908)5R..LHD) 158
#OEMPart name
21015 21122-34040 Housing Sub-Assy, Coil
21069 21069-41090 Dash Pot Sub-Assy
21112 21112-34060 Horn, Air
21113 21103-44110 Flange, Carburetor
21113 21103-44200 Flange, Carburetor
21113 21113-44100 Flange, Carburetor
21121 21121-34080 Case, Thermostat
21123 21123-44100 Housing, Diaphragm
21129 21129-24030 Cover(For Thermostatic Valve)
21138 21138-44100 Cap, Diaphragm
21138 21885-44010 Washer(For Diaphragm Cap Set)
21205 21205-34031 Jet Sub-Assy, Slow
21209 21209-33011 Float Sub-Assy
21211 21211-44100 Venturi, 1St Small
21212 21212-34031 Venturi, 2Nd Small
21251 90999-41114 Jet, 1St Main
21253 90999-42174 Jet, 2Nd Main
21255 21255-31081 Jet, Power Spare
21255 21255-31082 Jet, Power Spare
21271 21271-31140 Screw, Idle Adjusting
21271 21271-38010 Screw, Idle Adjusting
21271 21271-34350 Screw, Idle Adjusting
21272 21814-33010 Screw, 1St Idle Adjusting
21273 21844-33010 Screw, 1St Idle Adjusting
21291 21291-60200 Glass, Level Gage
21301 21301-34061 Valve Sub-Assy, Needle
21301 21301-34300 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21331 21331-34030 Valve, 1St Throttle
21332 21332-34031 Valve, 2Nd Throttle
21332 21332-34240 Valve, 2Nd Throttle
21334 21334-44011 Valve, Choke
21335 21335-33010 Valve, Thermostatic
21341 21304-30010 Valve, Power
21351 21351-33080 Piston, Power
21352 21352-34060 Piston, Vacuum
21353 21353-44101 Plunger, Pump
21371 21371-34033 Cam, 1St Idle
21372 21372-44100 Follower, 1St Idle Cam
21412 21412-34033 Shaft, 1St Throttle
21412 21412-44100 Shaft, 1St Throttle
21413 21413-34032 Shaft, 2Nd Throttle
21414 21414-44100 Shaft, Choke
21431 21431-44100 Arm, 1St Throttle Shaft
21447 21447-44100 Lever, Diaphragm
21449 21449-44101 Lever, 2Nd Kick
21452 21452-44100 Lever, Pump
21453 21406-44110 Lever, 1St Throttle
21453 21453-44060 Lever, 1St Throttle
21455 21444-44100 Lever, Throttle
21456 21456-44100 Lever, 1St Throttle Idle Adjusting, No.1
21471 21471-44100 Link, Pump Connecting
21474 21474-44100 Link, Connecting
21482 21482-31010 Connector, Piston
21482 21482-33040 Connector, Piston
21491 21491-44100 Rod, Sliding
21511 21511-33010 Clamp, Level Gage
21524 21893-44100 Bracket(For Dash Pot)
21526 21526-44100 Support, Back Spring
21531 21531-30010 Retainer, Coil Housing
21536 21536-44100 Plate, Coil Housing
21538 21538-31010 Retainer, Ball Check
21557 21557-44100 Spacer(For 1St Idle Cam)
21561 21561-22010 Weight, Pump Discharge
21572 21572-22010 Stop, Power Piston
21575 21575-33011 Stopper, B(For Discharge Weight)
21581 21581-32010 Shim, 1St Throttle Shaft - CHOKE ROD BELLCRANK SHAFT
21581 21581-41010 Shim, 1St Throttle Shaft - CHOKE ROD BELLCRANK SHAFT
21581 21583-32010 Shim, 1St Throttle Shaft
21581 21583-41010 Shim, 1St Throttle Shaft - CHOKE ROD BELLCRANK SHAFT
21583 21583-21010 Shim, 1St Throttle Shaft
21611 21611-22010 Gasket, Main Jet
21614 21614-34031 Gasket, Venturi
21614 21614-38010 Gasket, Venturi
21614 21615-44010 Gasket, Venturi
21614 21615-38010 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-24030 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-44100 Gasket, Air Horn
21623 21623-44012 Gasket, Body Flange
21625 21655-60200 Gasket, Level Gage
21626 21649-33080 Gasket, Diaphragm Housing Cap
21627 21627-34080 Gasket, Coil Housing
21641 21641-23010 Gasket(For Thermostatic Valve Cover)
21645 21645-33080 Gasket, Diaphragm, Cap
21645 21645-41010 Gasket, Diaphragm, Cap
21649 21641-33011 Gasket(For Pump Discharge Weight Stopper)
21659 21641-24030 Gasket(For Thermostatic Valve Cover No.2)
21664 21664-44100 Lever(For Dash Pot Or Positioner)
21677 21677-42010 Plug
21695 21699-41010 Boot(For Dash Pot)
21697 21699-33010 Boot(For Sliding Rod)
21698 21669-44100 Diaphragm
21699 21699-21061 Boot(For Pump Plunger)
21699 21699-28150 Boot(For Pump Plunger)
21722 21722-44100 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21724 21724-30010 Spring, Throttle Adjusting
21726 21726-40010 Spring, Throttle Adjusting
21734 21734-33081 Spring, Power Piston
21735 21735-24030 Spring, Pump Arm
21736 21736-40010 Spring, 1St Idle Cam
21751 21751-44011 Union, Nipple
21756 21756-34240 Spring, Back(For Throttle Shaft)
21756 21756-44100 Spring, Back(For Throttle Shaft)
21763 21763-21010 Pin, Float Lever
21763 21763-61330 Pin, Float Lever
21764 21764-40010 Pin, Piston(For Vacuum Piston)
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21794 21794-40010 Ring, Retainer, No.1(For Throttle Shaft)
21794 21795-41010 Ring, Retainer, No.1(For Throttle Shaft)
21811 21811-11060 Bolt, Union Nipple
21821 21821-34031 Screw, 1St Throttle Valve Set - 2ND THROTTLE VALVE SET
21822 21822-44101 Screw, 1St Throttle Valve Set
21823 21822-34031 Screw, 1St Throttle Valve Set
21824 21824-33010 Screw, Set(For 1St Idle Cam Follower Set)
21826 21826-31012 Screw, Pump Arm Set
21827 21827-33010 Screw, Connector Set
21831 21842-33010 Screw, Power Piston Stop
21834 21834-34030 Screw, Set, No.2(For Carburetor Body Set)
21836 21832-44010 Screw(For Choke Lever Adapter Set) - THERMOSTAT CASE SET
21852 21852-30010 Nut, Throttle Lever Set
21864 21864-44100 Spring(For 1St Throttle Arm)
21865 21865-44100 Spring
21867 21867-26040 Spring, Diaphragm
21868 21868-33080 Spring, Diaphragm Relief
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-44100 Solenoid, Throttle Valve
21934 21062-25040 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2139944100 21399-44100 Support(for Dash Pot)
2167231140 21672-31140 Cap
2179440070 21794-40070 Ring, Retainer, No.1(For Throttle Shaft)
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010 21821-25010 Screw, Coil Housing Set
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134370 21821-34370 Screw, 2nd Throttle Valve Set
9315016018 93150-16018 New Genuine Part
9315016020 93150-16020 New Genuine Part
9321914018 93219-14018 New Genuine Part
9321915014 93219-15014 Screw, Cover Set, No.1
9321915018 93219-15018 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100300 94511-00300 New Genuine Part
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
9538101610 95381-01610 New Genuine Part
