Search › Model › RS80

RS80

Toyota CROWN-MAJESTA · 1974 · 4,902 parts · 169 categories

4,902 items

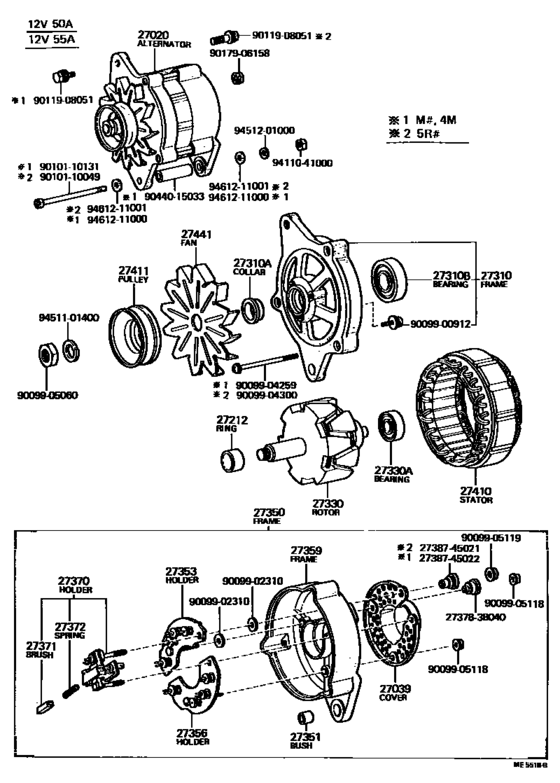

Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R) 77

#	OEM	Part name
27020	27020-44031	Alternator Assy
27020	27020-44090	Alternator Assy
27020	27020-44032	Alternator Assy
27020	27020-44033	Alternator Assy
27020	27020-44070	Alternator Assy
27020	27020-44081	Alternator Assy
27039	27039-26020	Cover, Alternator Rear End
27039	27039-44042	Cover, Alternator Rear End
27212	27212-39050	Ring, Space(For Alternator Rotor)
27212	27412-45070	Ring, Space(For Alternator Rotor)
27310	27310-34030	Frame Assy, Drive End, Alternator
27310	27310-34050	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-19075	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10102	Bearing(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27310	90099-10115	Bearing(For Alternator Drive End Frame)
27330	27330-43012	Rotor Assy, Alternator
27330	27330-45020	Rotor Assy, Alternator
27330	90099-10103	Bearing(For Alternator Rotor)
27330	90099-10111	Bearing(For Alternator Rotor)
27330	90099-10116	Bearing(For Alternator Rotor)
27350	27350-44030	Frame Assy, Rectifier End
27350	27350-24080	Frame Assy, Rectifier End
27350	27350-44032	Frame Assy, Rectifier End
27350	27350-26051	Frame Assy, Rectifier End
27350	27350-44033	Frame Assy, Rectifier End
27350	27350-31101	Frame Assy, Rectifier End
27350	27350-44070	Frame Assy, Rectifier End
27351	27351-25010	Bush(For Alternator Rectifier End Frame)
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27353	27353-26020	Holder, W/rectifier Positive, Alternator
27353	27353-26030	Holder, W/rectifier Positive, Alternator
27353	27353-34020	Holder, W/rectifier Positive, Alternator
27356	27356-26020	Holder, W/rectifier Negative, Alternator
27356	27356-26030	Holder, W/rectifier Negative, Alternator
27356	27356-45070	Holder, W/rectifier Negative, Alternator
27359	27359-26050	Frame, Alternator Rectifier End
27359	27359-36061	Frame, Alternator Rectifier End
27359	27359-44032	Frame, Alternator Rectifier End
27359	27359-45081	Frame, Alternator Rectifier End
27370	27370-26020	Holder Assy, Alternator Brush
27370	27370-44032	Holder Assy, Alternator Brush
27370	27370-44070	Holder Assy, Alternator Brush
27370	27370-45061	Holder Assy, Alternator Brush
27371	27371-31011	Brush, Alternator
27371	27371-44070	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27372	90099-17114	Spring, Alternator Brush
27410	27410-26030	Stator Assy, Alternator
27410	27410-34050	Stator Assy, Alternator
27410	27410-45080	Stator Assy, Alternator
27411	27411-44030	Pulley, Alternator
27411	27411-45010	Pulley, Alternator
27441	27441-34030	Fan, Alternator
2737838040	27378-38040	Insulator, Alternator, No.1
2738745021	27387-45021	Insulator, Terminal
2738745021	27387-45022	Insulator, Terminal
9009900912	90099-00912	New Genuine Part
9009902310	90099-02310	New Genuine Part
9009904259	90099-04259	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9010110049	90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)
9010110049	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9010110131	90101-10131	Shaft, Clutch Pedal
9011908051	90119-08051	New Genuine Part
9011908051	90129-08010	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9044015033	90440-15033	New Genuine Part
9411041000	94110-41000	Nut(For Steering Damper)
9451101400	94511-01400	WASHER
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461211000	94612-11000	Plate, Spring Set
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27020-44031	Alternator Assy	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27020-44032	Alternator Assy	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27020-44033	Alternator Assy	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27020-44070	Alternator Assy	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27020-44081	Alternator Assy	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27020-44090	Alternator Assy	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27039-26020	Cover, Alternator Rear End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27039-44042	Cover, Alternator Rear End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27212-39050	Ring, Space(For Alternator Rotor)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27310-34030	Frame Assy, Drive End, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27310-34050	Frame Assy, Drive End, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27330-43012	Rotor Assy, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27330-45020	Rotor Assy, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-24080	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-26051	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-31101	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-44030	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-44032	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-44033	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27350-44070	Frame Assy, Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27351-25010	Bush(For Alternator Rectifier End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27353-26020	Holder, W/rectifier Positive, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27353-26030	Holder, W/rectifier Positive, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27353-34020	Holder, W/rectifier Positive, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27356-26020	Holder, W/rectifier Negative, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27356-26030	Holder, W/rectifier Negative, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27356-45070	Holder, W/rectifier Negative, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27359-26050	Frame, Alternator Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27359-36061	Frame, Alternator Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27359-44032	Frame, Alternator Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27359-45081	Frame, Alternator Rectifier End	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27370-26020	Holder Assy, Alternator Brush	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27370-44032	Holder Assy, Alternator Brush	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27370-44070	Holder Assy, Alternator Brush	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27370-45061	Holder Assy, Alternator Brush	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27371-31011	Brush, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27371-44070	Brush, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27372-31011	Spring, Alternator Brush	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27378-38040	Insulator, Alternator, No.1	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27387-45021	Insulator, Terminal	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27387-45022	Insulator, Terminal	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27410-26030	Stator Assy, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27410-34050	Stator Assy, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27410-45080	Stator Assy, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27411-44030	Pulley, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27411-45010	Pulley, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27412-45070	Ring, Space(For Alternator Rotor)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
27441-34030	Fan, Alternator	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-00912	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-02310	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-04259	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-04300	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-05118	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-05119	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-10102	Bearing(For Alternator Drive End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-10103	Bearing(For Alternator Rotor)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-10111	Bearing(For Alternator Rotor)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-10115	Bearing(For Alternator Drive End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-17114	Spring, Alternator Brush	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90099-19075	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90101-10131	Shaft, Clutch Pedal	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90119-08051	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90129-08010	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
90440-15033	New Genuine Part	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
94110-41000	Nut(For Steering Damper)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
94511-01400	WASHER	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
94612-11000	Plate, Spring Set	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([02.1978 - 08.1979] (7611-7908)4M..BTP,DLX,SAL,STD ; (7802-7908)5R)
