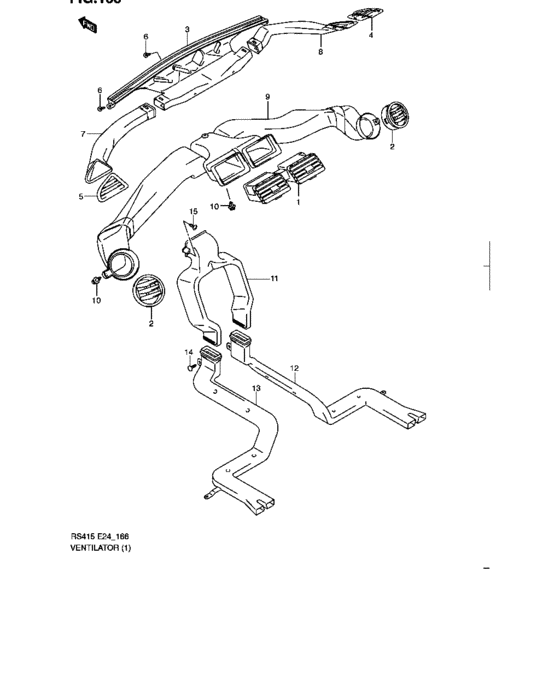

Ventilator (LHD)
16
| # | OEM | Part name |
|---|
| 1 |
73610-63J00-P4Z |
LOUVER,CTR VENT |
| 2 |
73630-58J01-P4Z |
LOUVER,SIDE VENT |
| 2 |
73630-58J01-BWN |
LOUVER,SIDE VENT |
| 3 |
73661-63J10-000 |
NOZZLE,DFR |
| 4 |
73651-63J00-P4Z |
NOZZLE,SIDE DMR,R |
| 5 |
73652-63J00-P4Z |
NOZZLE,SIDE DMR,L |
| 6 |
03541-0516A-000 |
SCREW |
| 7 |
73681-63J10-000 |
DUCT,DEMISTER DRVR |
| 8 |
73691-63J10-000 |
DUCT,DEMISTER ASST |
| 9 |
74620-63J10-000 |
Duct,vent |
| 9 |
74620-63J11-000 |
DUCT,VENT |
| 10 |
09409-06322-5PK |
CLIP(BLACK) - Clip (black) |
| 11 |
74651-63J00-000 |
DUCT,RR CTR |
| 12 |
74652-63J00-000 |
DUCT,RR,R |
| 13 |
74653-63J00-000 |
DUCT,RR,L |
| 14 |
09409-06318-000 |
CLIP |
| OEM |
Part name |
Category |
| 03541-0516A-000 |
SCREW |
Ventilator (LHD) |
| 09409-06318-000 |
CLIP |
Ventilator (LHD) |
| 09409-06322-5PK |
CLIP(BLACK) - Clip (black) |
Ventilator (LHD) |
| 73610-63J00-P4Z |
LOUVER,CTR VENT |
Ventilator (LHD) |
| 73630-58J01-BWN |
LOUVER,SIDE VENT |
Ventilator (LHD) |
| 73630-58J01-P4Z |
LOUVER,SIDE VENT |
Ventilator (LHD) |
| 73651-63J00-P4Z |
NOZZLE,SIDE DMR,R |
Ventilator (LHD) |
| 73652-63J00-P4Z |
NOZZLE,SIDE DMR,L |
Ventilator (LHD) |
| 73661-63J10-000 |
NOZZLE,DFR |
Ventilator (LHD) |
| 73681-63J10-000 |
DUCT,DEMISTER DRVR |
Ventilator (LHD) |
| 73691-63J10-000 |
DUCT,DEMISTER ASST |
Ventilator (LHD) |
| 74620-63J10-000 |
Duct,vent |
Ventilator (LHD) |
| 74620-63J11-000 |
DUCT,VENT |
Ventilator (LHD) |
| 74651-63J00-000 |
DUCT,RR CTR |
Ventilator (LHD) |
| 74652-63J00-000 |
DUCT,RR,R |
Ventilator (LHD) |
| 74653-63J00-000 |
DUCT,RR,L |
Ventilator (LHD) |
