Search › Model › RS416

RS416

Suzuki KEI-SWIFT · 4,777 parts · 248 categories

4,777 items

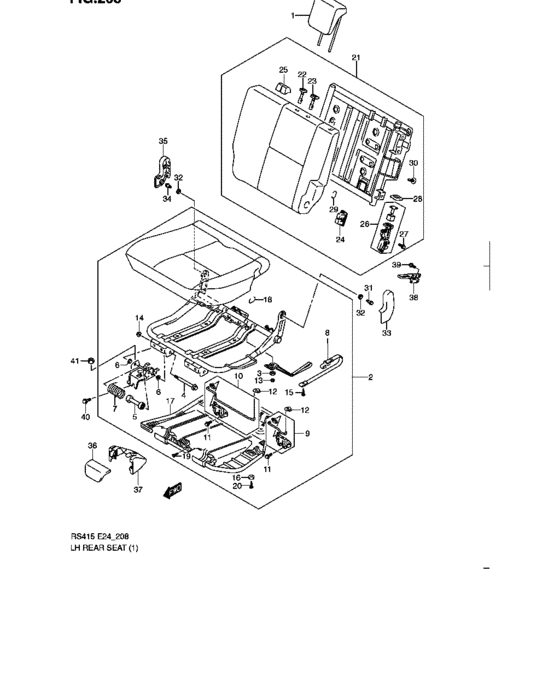

Rear lh seat (GA,GL,GLX:) 77

#	OEM	Part name
1	86401-63J20-S5K	Headrestraint assy(black)
1	86401-66J20-S5K	HEADRESTRAINT ASSY,RR
1	86401-66J22-S5K	Headrestraint,rr
1	86401-66J20-NL5	Headrestraint assy
1	86401-66J21-NL5	HEADRESTRAINT,RR
1	86401-66J22-NL5	Headrestraint,rr
1	86401-66J10-NL5	Headrestraint assy,rr
1	86401-66J11-NL5	HEADRESTRAINT ASSY,RR
1	86401-66J12-NL5	Headrestraint Assy,rr
2	87102-63J31-AWZ	Cushion assy,rr,l
2	87102-63J11-AWZ	Cushion assy,rr,l
2	87102-63J01-AWZ	Cushion assy,rr,l
2	87102-63J21-AWZ	Cushion assy,rr,l
2	87102-63J31-DZS	CUSHION ASSY,RR,L
2	87102-63J21-DZS	Cushion assy,rr,l
2	87102-63J22-DZS	CUSHION ASSY,RR,L
3	87134-63J00-000	BUSH,CUSH LOCK LEVER
4	87153-63J01-000	BOLT,RR CUSH LEG
5	87154-63J00-000	COLLAR,SPRING
6	87157-63J00-000	BUSH,RR CUSH LEG
7	87658-63J00-000	SPRING,RR CUSH LEG
8	87270-63J00-000	BAND,RR SEAT
9	87960-63J02-000	LOCK ASSY,RR CUSH,L
10	87960-63J12-000	LOCK ASSY,RR CUSH,L
11	09103-11002-000	BOLT(7/16X22)
12	09403-04306-000	CLAMP - Connector, choke rod
13	08316-1008A-000	NUT - Nut, idle gear shaft
15	03141-0616A-000	SCREW
16	87159-65DA0-000	CUSHION,RR CUSH
17	87619-63J01-P4Z	COVER,RR SEAT CUSH,L
18	09387-19001-000	RING
19	03241-0510A-000	SCREW
20	03241-0516A-000	SCREW
20	87302-63JC1-DZS	Back assy,rr l
20	87302-63JB1-AWZ	Back assy,rr l
20	87302-63JB1-DZS	Back assy,rr l
20	87302-63JB2-DZS	BACK ASSY,RR,L
20	87302-63JA1-AWZ	Back assy,rr,l
20	87302-63JA1-DZS	BACK ASSY,RR,L
20	87302-63JD0-DZS	Back assy,rr,l
20	87302-63JC1-AWZ	BACK ASSY,RR,L
21	87302-63J90-AWZ	BACK ASSY,RR,L
21	87302-63J40-AWZ	Back assy,rr,l
21	87302-63J80-AWZ	BACK ASSY,RR,L
21	87302-63J30-AWZ	Back assy,rr l(blue)
21	87302-63J70-AWZ	BACK ASSY,RR,L
22	85341-63J10-P4Z	GUIDE,HEADRESTRAINT
22	85341-63J11-P4Z	GUIDE,HEADRESTRAINT
22	85341-63J12-P4Z	Guide,headrestraint
23	85840-63J10-P4Z	GUIDE,HEADRESTRAINT
23	85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT
23	85840-63J12-P4Z	Guide Comp,headrestraint
24	87225-53JA0-P4Z	Cover,tether anchor
24	87225-53JB0-P4Z	COVER,TETHER ANCHOR
25	87227-63J00-P4Z	COVER,SHOULDER
25	87980-62J02-000	LOCK ASSY,RR BACK,L
26	87980-63J11-P4Z	LOCK ASSY,RR BACK,L
26	87980-63J01-P4Z	LOCK ASSY,RR BACK,L
26	87485-79J00-000	WIRE,RR BACK LOCK,R
27	01550-0820A-000	Bolt - Bolt, funnel bracket
27	87486-79J00-000	SPRING,BACK KNOB
28	87482-63J00-P4Z	BEZEL,LOCK BUTTON
28	01550-0835A-000	Bolt
29	87482-80J00-P4Z	BEZEL,RR BACK LOCK BTN
30	09409-10302-P4Z	CLIP(GRAY)
31	87333-63J01-000	BOLT,RR SEAT HINGE OUTER
32	87334-63J01-000	BUSH,HINGE OTR
33	87672-63J01-P4Z	COVER,HINGE OUTSIDE,L
35	87671-63J02-P4Z	COVER,HINGE INSIDE L
36	87491-63J00-P4Z	COVER,RR CUSH HINGE FR
37	87992-63J00-P4Z	COVER,RR CUSH HINGE RR
37	87870-62J10-000	STRIKER,RR BACK
38	87870-63J11-000	STRIKER,RR BACK L
38	87870-63J01-000	STRIKER,RR BACK R
39	01551-0820A-000	Bolt
40	01551-1025A-000	Bolt
41	08316-1010A-000	NUT - Nut, kick starter

OEM	Part name	Category
01550-0820A-000	Bolt - Bolt, funnel bracket	Rear lh seat (GA,GL,GLX:)
01550-0835A-000	Bolt	Rear lh seat (GA,GL,GLX:)
01551-0820A-000	Bolt	Rear lh seat (GA,GL,GLX:)
01551-1025A-000	Bolt	Rear lh seat (GA,GL,GLX:)
03141-0616A-000	SCREW	Rear lh seat (GA,GL,GLX:)
03241-0510A-000	SCREW	Rear lh seat (GA,GL,GLX:)
03241-0516A-000	SCREW	Rear lh seat (GA,GL,GLX:)
08316-1008A-000	NUT - Nut, idle gear shaft	Rear lh seat (GA,GL,GLX:)
08316-1010A-000	NUT - Nut, kick starter	Rear lh seat (GA,GL,GLX:)
09103-11002-000	BOLT(7/16X22)	Rear lh seat (GA,GL,GLX:)
09387-19001-000	RING	Rear lh seat (GA,GL,GLX:)
09403-04306-000	CLAMP - Connector, choke rod	Rear lh seat (GA,GL,GLX:)
09409-10302-P4Z	CLIP(GRAY)	Rear lh seat (GA,GL,GLX:)
85341-63J10-P4Z	GUIDE,HEADRESTRAINT	Rear lh seat (GA,GL,GLX:)
85341-63J11-P4Z	GUIDE,HEADRESTRAINT	Rear lh seat (GA,GL,GLX:)
85341-63J12-P4Z	Guide,headrestraint	Rear lh seat (GA,GL,GLX:)
85840-63J10-P4Z	GUIDE,HEADRESTRAINT	Rear lh seat (GA,GL,GLX:)
85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT	Rear lh seat (GA,GL,GLX:)
85840-63J12-P4Z	Guide Comp,headrestraint	Rear lh seat (GA,GL,GLX:)
86401-63J20-S5K	Headrestraint assy(black)	Rear lh seat (GA,GL,GLX:)
86401-66J10-NL5	Headrestraint assy,rr	Rear lh seat (GA,GL,GLX:)
86401-66J11-NL5	HEADRESTRAINT ASSY,RR	Rear lh seat (GA,GL,GLX:)
86401-66J12-NL5	Headrestraint Assy,rr	Rear lh seat (GA,GL,GLX:)
86401-66J20-NL5	Headrestraint assy	Rear lh seat (GA,GL,GLX:)
86401-66J20-S5K	HEADRESTRAINT ASSY,RR	Rear lh seat (GA,GL,GLX:)
86401-66J21-NL5	HEADRESTRAINT,RR	Rear lh seat (GA,GL,GLX:)
86401-66J22-NL5	Headrestraint,rr	Rear lh seat (GA,GL,GLX:)
86401-66J22-S5K	Headrestraint,rr	Rear lh seat (GA,GL,GLX:)
87102-63J01-AWZ	Cushion assy,rr,l	Rear lh seat (GA,GL,GLX:)
87102-63J11-AWZ	Cushion assy,rr,l	Rear lh seat (GA,GL,GLX:)
87102-63J21-AWZ	Cushion assy,rr,l	Rear lh seat (GA,GL,GLX:)
87102-63J21-DZS	Cushion assy,rr,l	Rear lh seat (GA,GL,GLX:)
87102-63J22-DZS	CUSHION ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87102-63J31-AWZ	Cushion assy,rr,l	Rear lh seat (GA,GL,GLX:)
87102-63J31-DZS	CUSHION ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87134-63J00-000	BUSH,CUSH LOCK LEVER	Rear lh seat (GA,GL,GLX:)
87153-63J01-000	BOLT,RR CUSH LEG	Rear lh seat (GA,GL,GLX:)
87154-63J00-000	COLLAR,SPRING	Rear lh seat (GA,GL,GLX:)
87157-63J00-000	BUSH,RR CUSH LEG	Rear lh seat (GA,GL,GLX:)
87159-65DA0-000	CUSHION,RR CUSH	Rear lh seat (GA,GL,GLX:)
87225-53JA0-P4Z	Cover,tether anchor	Rear lh seat (GA,GL,GLX:)
87225-53JB0-P4Z	COVER,TETHER ANCHOR	Rear lh seat (GA,GL,GLX:)
87227-63J00-P4Z	COVER,SHOULDER	Rear lh seat (GA,GL,GLX:)
87270-63J00-000	BAND,RR SEAT	Rear lh seat (GA,GL,GLX:)
87302-63J30-AWZ	Back assy,rr l(blue)	Rear lh seat (GA,GL,GLX:)
87302-63J40-AWZ	Back assy,rr,l	Rear lh seat (GA,GL,GLX:)
87302-63J70-AWZ	BACK ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87302-63J80-AWZ	BACK ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87302-63J90-AWZ	BACK ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87302-63JA1-AWZ	Back assy,rr,l	Rear lh seat (GA,GL,GLX:)
87302-63JA1-DZS	BACK ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87302-63JB1-AWZ	Back assy,rr l	Rear lh seat (GA,GL,GLX:)
87302-63JB1-DZS	Back assy,rr l	Rear lh seat (GA,GL,GLX:)
87302-63JB2-DZS	BACK ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87302-63JC1-AWZ	BACK ASSY,RR,L	Rear lh seat (GA,GL,GLX:)
87302-63JC1-DZS	Back assy,rr l	Rear lh seat (GA,GL,GLX:)
87302-63JD0-DZS	Back assy,rr,l	Rear lh seat (GA,GL,GLX:)
87333-63J01-000	BOLT,RR SEAT HINGE OUTER	Rear lh seat (GA,GL,GLX:)
87334-63J01-000	BUSH,HINGE OTR	Rear lh seat (GA,GL,GLX:)
87482-63J00-P4Z	BEZEL,LOCK BUTTON	Rear lh seat (GA,GL,GLX:)
87482-80J00-P4Z	BEZEL,RR BACK LOCK BTN	Rear lh seat (GA,GL,GLX:)
87485-79J00-000	WIRE,RR BACK LOCK,R	Rear lh seat (GA,GL,GLX:)
87486-79J00-000	SPRING,BACK KNOB	Rear lh seat (GA,GL,GLX:)
87491-63J00-P4Z	COVER,RR CUSH HINGE FR	Rear lh seat (GA,GL,GLX:)
87619-63J01-P4Z	COVER,RR SEAT CUSH,L	Rear lh seat (GA,GL,GLX:)
87658-63J00-000	SPRING,RR CUSH LEG	Rear lh seat (GA,GL,GLX:)
87671-63J02-P4Z	COVER,HINGE INSIDE L	Rear lh seat (GA,GL,GLX:)
87672-63J01-P4Z	COVER,HINGE OUTSIDE,L	Rear lh seat (GA,GL,GLX:)
87870-62J10-000	STRIKER,RR BACK	Rear lh seat (GA,GL,GLX:)
87870-63J01-000	STRIKER,RR BACK R	Rear lh seat (GA,GL,GLX:)
87870-63J11-000	STRIKER,RR BACK L	Rear lh seat (GA,GL,GLX:)
87960-63J02-000	LOCK ASSY,RR CUSH,L	Rear lh seat (GA,GL,GLX:)
87960-63J12-000	LOCK ASSY,RR CUSH,L	Rear lh seat (GA,GL,GLX:)
87980-62J02-000	LOCK ASSY,RR BACK,L	Rear lh seat (GA,GL,GLX:)
87980-63J01-P4Z	LOCK ASSY,RR BACK,L	Rear lh seat (GA,GL,GLX:)
87980-63J11-P4Z	LOCK ASSY,RR BACK,L	Rear lh seat (GA,GL,GLX:)
87992-63J00-P4Z	COVER,RR CUSH HINGE RR	Rear lh seat (GA,GL,GLX:)
