RS416

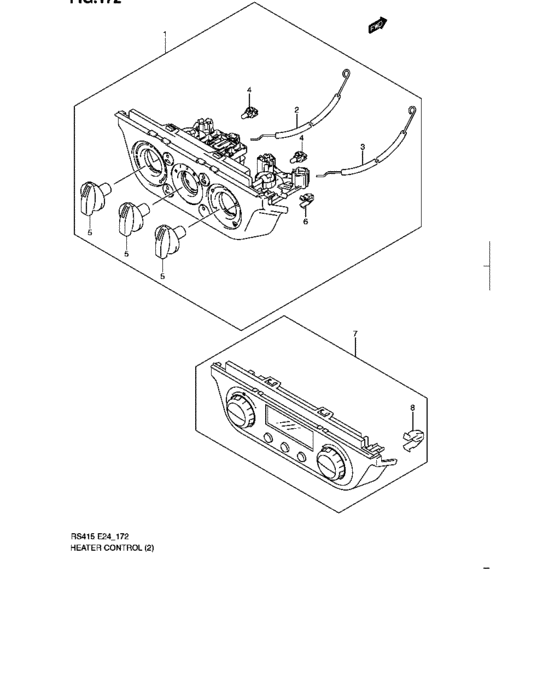

Heater control (RHD) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 74400-63J00-AYF | CONTROL UNIT,HVAC(GRAY) |
| 2 | 74452-62J00-000 | CABLE,TEMP CONTROL |
| 3 | 74451-62J00-000 | CABLE,MODE CONTROL |
| 4 | 74531-63J00-000 | BULB |
| 5 | 74461-62J00-000 | KNOB,HTR CONT |
| 6 | 09409-08326-000 | CLIP |
| 7 | 39510-63J02-AYG | PANEL UNIT,AUTO A/C |
| 7 | 39510-73K00-AYG | PANEL UNIT,AUTO A/C |
| OEM | Part name | Category |
|---|---|---|
| 09409-08326-000 | CLIP | Heater control (RHD) |
| 39510-63J02-AYG | PANEL UNIT,AUTO A/C | Heater control (RHD) |
| 39510-73K00-AYG | PANEL UNIT,AUTO A/C | Heater control (RHD) |
| 74400-63J00-AYF | CONTROL UNIT,HVAC(GRAY) | Heater control (RHD) |
| 74451-62J00-000 | CABLE,MODE CONTROL | Heater control (RHD) |
| 74452-62J00-000 | CABLE,TEMP CONTROL | Heater control (RHD) |
| 74461-62J00-000 | KNOB,HTR CONT | Heater control (RHD) |
| 74531-63J00-000 | BULB | Heater control (RHD) |
