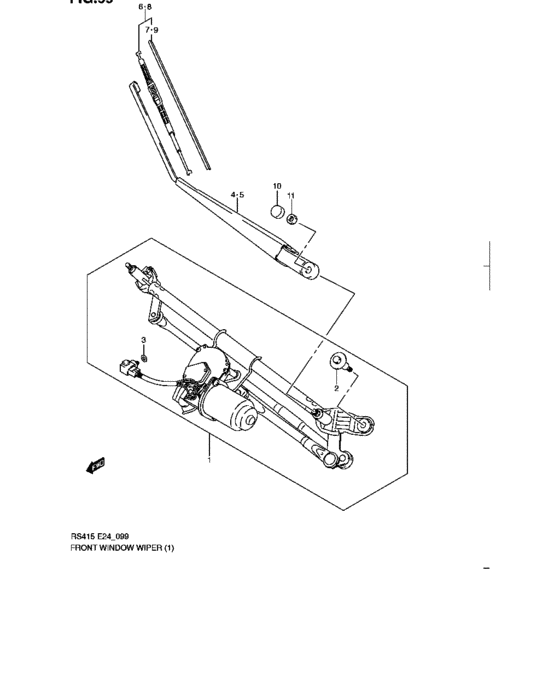

Front window wiper (LHD)
11
| # | OEM | Part name |
|---|
| 1 |
38100-63J60-000 |
WIPER ASSY,WINDSHIELD |
| 2 |
38116-73H00-000 |
BOLT,WIPER MOTOR |
| 3 |
38173-63J00-000 |
SEAL,CLAMP |
| 4 |
38310-63J60-000 |
ARM ASSY,WIPER DRVR |
| 5 |
38330-63J60-000 |
ARM ASSY,WIPER ASST |
| 6 |
38340-63J60-000 |
BLADE ASSY,WIPER |
| 7 |
38346-63J10-000 |
RUBBER,BLADE |
| 8 |
38340-63J70-000 |
BLADE ASSY,WIPER |
| 9 |
38346-63J20-000 |
RUBBER,BLADE |
| 10 |
38315-60B11-000 |
CAP,WIPER PIVOT |
| 11 |
08310-0008A-000 |
NUT - Nut, bead stopper |
| OEM |
Part name |
Category |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Front window wiper (LHD) |
| 38100-63J60-000 |
WIPER ASSY,WINDSHIELD |
Front window wiper (LHD) |
| 38116-73H00-000 |
BOLT,WIPER MOTOR |
Front window wiper (LHD) |
| 38173-63J00-000 |
SEAL,CLAMP |
Front window wiper (LHD) |
| 38310-63J60-000 |
ARM ASSY,WIPER DRVR |
Front window wiper (LHD) |
| 38315-60B11-000 |
CAP,WIPER PIVOT |
Front window wiper (LHD) |
| 38330-63J60-000 |
ARM ASSY,WIPER ASST |
Front window wiper (LHD) |
| 38340-63J60-000 |
BLADE ASSY,WIPER |
Front window wiper (LHD) |
| 38340-63J70-000 |
BLADE ASSY,WIPER |
Front window wiper (LHD) |
| 38346-63J10-000 |
RUBBER,BLADE |
Front window wiper (LHD) |
| 38346-63J20-000 |
RUBBER,BLADE |
Front window wiper (LHD) |
