Search › Model › RS416
RS416

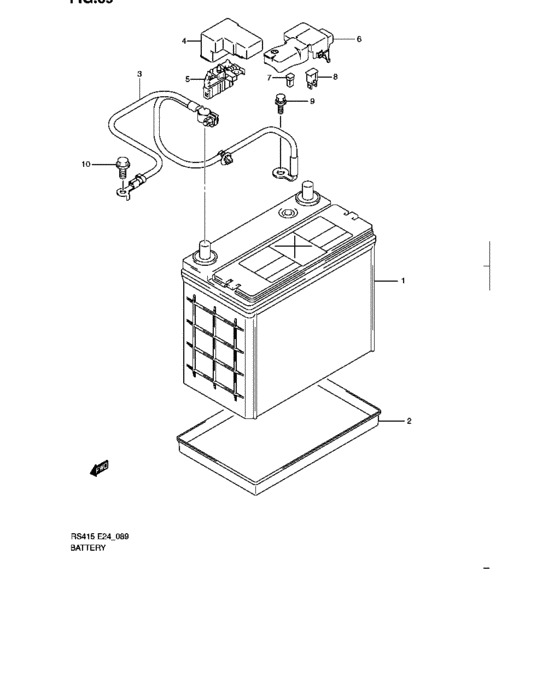

Battery (BATTERY) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-821V0-000 | Battery assy(55b24r) |
| 1 | 33610-821V1-000 | BATTERY ASSY,55B24R (Cannot supply) |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33850-63J10-000 | CABLE,BTRY GND |
| 3 | 33850-73K20-000 | CABLE,BTRY GND |
| 3 | 33850-63J00-000 | CABLE,BTRY GND |
| 3 | 33850-73K10-000 | CABLE,BTRY GND |
| 4 | 36694-75J00-000 | COVER,BATTERY TERMINAL |
| 5 | 36739-62J00-000 | FUSE,BATTERY |
| 6 | 36694-63J00-000 | COVER,BATTERY TERMINAL |
| 7 | 09481-50401-000 | FUSE(50A) |
| 8 | 09481-80301-000 | FUSE(80A) |
| 9 | 09115-06005-000 | BOLT(6X16) |
| 10 | 01550-0812A-000 | Bolt |
| 10 | 01550-0816A-000 | Bolt - Bolt, rear |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | Battery (BATTERY) |
| 01550-0816A-000 | Bolt - Bolt, rear | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09481-50401-000 | FUSE(50A) | Battery (BATTERY) |
| 09481-80301-000 | FUSE(80A) | Battery (BATTERY) |
| 33610-821V0-000 | Battery assy(55b24r) | Battery (BATTERY) |
| 33610-821V1-000 | BATTERY ASSY,55B24R (Cannot supply) | Battery (BATTERY) |
| 33660-71L10-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33850-63J00-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 33850-63J10-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 33850-73K10-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 33850-73K20-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 36694-63J00-000 | COVER,BATTERY TERMINAL | Battery (BATTERY) |
| 36694-75J00-000 | COVER,BATTERY TERMINAL | Battery (BATTERY) |
| 36739-62J00-000 | FUSE,BATTERY | Battery (BATTERY) |
