RS416

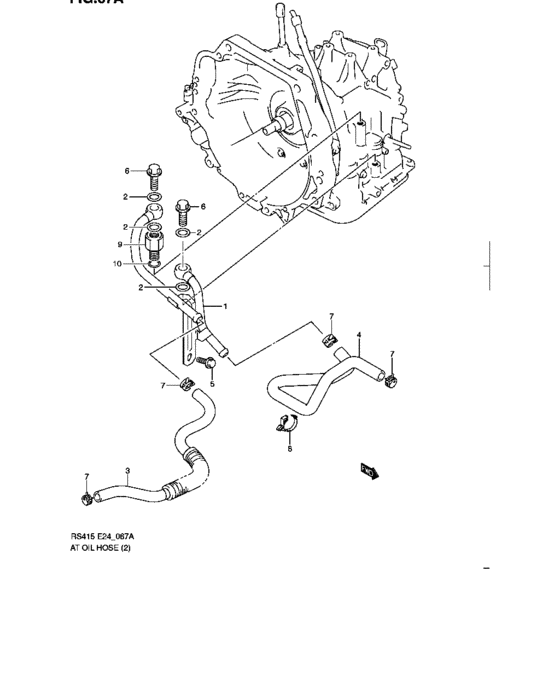

At oil hose (TYPE 3,4:AT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 22910-62J10-000 | PIPE,OIL COOLER |
| 2 | 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT |
| 3 | 22931-62J10-000 | HOSE,OIL COOLER INLET |
| 4 | 22932-62J11-000 | HOSE,OIL COOLER OUTLET |
| 5 | 01550-0612A-000 | Bolt |
| 6 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 7 | 09401-15410-000 | CLIP |
| 8 | 09403-17306-000 | CLAMP - Guide, rr brake hose no.2 |
| 9 | 24743-55G10-000 | UNION,OIL PIPE |
| 10 | 29737-57B00-000 | O-RING,OIL PIPE |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | At oil hose (TYPE 3,4:AT) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | At oil hose (TYPE 3,4:AT) |
| 09401-15410-000 | CLIP | At oil hose (TYPE 3,4:AT) |
| 09403-17306-000 | CLAMP - Guide, rr brake hose no.2 | At oil hose (TYPE 3,4:AT) |
| 22910-62J10-000 | PIPE,OIL COOLER | At oil hose (TYPE 3,4:AT) |
| 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT | At oil hose (TYPE 3,4:AT) |
| 22931-62J10-000 | HOSE,OIL COOLER INLET | At oil hose (TYPE 3,4:AT) |
| 22932-62J11-000 | HOSE,OIL COOLER OUTLET | At oil hose (TYPE 3,4:AT) |
| 24743-55G10-000 | UNION,OIL PIPE | At oil hose (TYPE 3,4:AT) |
| 29737-57B00-000 | O-RING,OIL PIPE | At oil hose (TYPE 3,4:AT) |
