RS413D

Suzuki KEI-SWIFT · 4,097 parts · 267 categories
RS413D ×

← Back to categories

4,097 items

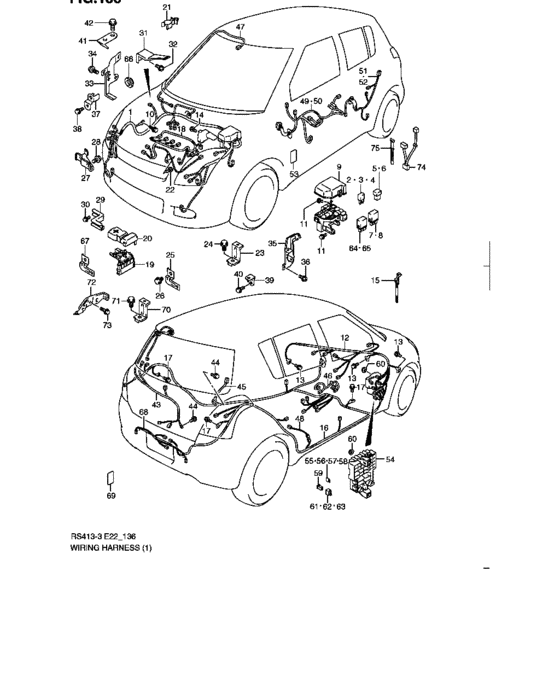

Wiring harness (GASOLINE) 204
#OEMPart name
1 36610-72K10-000 Harness assy, main
1 36610-72KD0-000 Harness assy, main
1 36610-72K20-000 Harness assy, main
1 36610-72KM0-000 Harness assy, main
1 36610-72KE0-000 Harness assy, main
1 36610-72K30-000 Harness assy, main
1 36610-72K40-000 Harness assy, main
1 36610-72KS0-000 Harness assy, main
1 36601-72K10-000 Harness assy, main
1 36601-72KD0-000 Harness assy, main
1 36601-72K20-000 Harness assy, main
1 36601-72KP0-000 Harness assy, main
1 36601-72KE0-000 Harness assy, main
1 36601-72KU0-000 Harness assy, main
1 36601-72K30-000 Harness assy, main
1 36601-72K40-000 Harness assy, main
1 36601-72KS0-000 Harness assy, main
2 09481-10501-000 FUSE(10A)
3 09481-15501-000 FUSE(15A)
4 09481-30501-000 FUSE(30A)
5 09481-30401-000 FUSE(30A)
6 09481-50401-000 FUSE(50A)
7 38860-76F01-000 RELAY ASSY - Relay, starting motor
9 36717-63J00-000 COVER,RELAY BOX
10 09115-06005-000 BOLT(6X16)
11 01550-0616A-000 Bolt
12 36620-72K01-000 Harness assy, instrument panel
12 36620-72K11-000 Harness assy, instrument panel
12 36920-72K11-000 Harness assy, instrument panel
12 36620-72K21-000 Harness assy, instrument panel
12 36620-72KA1-000 Harness assy, instrument panel
12 36920-72KA1-000 Harness assy, instrument panel
12 36620-72KB1-000 Harness assy, instrument panel
12 36920-72KE1-000 Harness assy, instrument panel
12 36920-72KN1-000 Harness assy, instrument panel
12 36602-72K01-000 Harness assy, instrument panel
12 36602-72K41-000 Harness assy, instrument panel
12 36602-72K11-000 Harness assy, instrument panel
12 36602-72K51-000 Harness assy, instrument panel
12 36902-72K11-000 Harness assy, instrument panel
12 36902-72K51-000 Harness assy, instrument panel
12 36602-72K21-000 Harness assy, instrument panel
12 36602-72K61-000 Harness assy, instrument panel
12 36602-72KA1-000 Harness assy, instrument panel
12 36602-72KC1-000 Harness assy, instrument panel
12 36902-72KA1-000 Harness assy, instrument panel
12 36902-72KC1-000 Harness assy, instrument panel
12 36602-72KB1-000 Harness assy, instrument panel
12 36602-72KD1-000 Harness assy, instrument panel
12 36602-72KE1-000 Harness assy, instrument panel
12 36602-72KF1-000 Harness assy, instrument panel
12 36902-72KE1-000 Harness assy, instrument panel
12 36902-72KF1-000 Harness assy, instrument panel
12 36902-72KN1-000 Harness assy, instrument panel
14 02162-0612A-000 SCREW - Bolt, bracket
15 09407-12404-000 CLAMP(L:140)
16 36630-72K00-000 Harness assy, floor
16 36630-72K90-000 Harness assy, floor
16 36630-72K10-000 Harness assy, floor
16 36630-72K50-000 Harness assy, floor
16 36630-72KE0-000 Harness assy, floor
16 36630-72K30-000 Harness assy, floor
16 36630-72K70-000 Harness assy, floor
16 36630-72KA0-000 Harness assy, floor
16 36630-72KG0-000 Harness assy, floor
16 36630-72KC0-000 Harness assy, floor
16 36630-72KR0-000 Harness assy, floor
16 36630-72KU0-000 Harness assy, floor
16 36930-72K00-000 Harness assy, floor
16 36930-72K90-000 Harness assy, floor
16 36930-72K10-000 Harness assy, floor
16 36930-72K51-000 Harness assy, floor
16 36930-72KE0-000 Harness assy, floor
16 36930-72K30-000 Harness assy, floor
16 36930-72K70-000 Harness assy, floor
16 36930-72KA0-000 Harness assy, floor
16 36930-72KG0-000 Harness assy, floor
16 36930-72KC0-000 Harness assy, floor
16 36603-72K00-000 Harness assy, floor
16 36603-72K90-000 Harness assy, floor
16 36603-72K10-000 Harness assy, floor
16 36603-72K51-000 Harness assy, floor
16 36603-72K61-000 Harness assy, floor
16 36603-72KE0-000 Harness assy, floor
16 36603-72KF0-000 Harness assy, floor
16 36603-72K30-000 Harness assy, floor
16 36603-72K70-000 Harness assy, floor
16 36603-72K80-000 Harness assy, floor
16 36603-72KA0-000 Harness assy, floor
16 36603-72KB0-000 Harness assy, floor
16 36603-72KG0-000 Harness assy, floor
16 36603-72KH0-000 Harness assy, floor
16 36603-72KC0-000 Harness assy, floor
16 36603-72KD0-000 Harness assy, floor
16 36603-72KR0-000 Harness assy, floor
16 36603-72KS0-000 Harness assy, floor
16 36603-72KU0-000 Harness assy, floor
16 36903-72K00-000 Harness assy, floor
16 36903-72K90-000 Harness assy, floor
16 36903-72K10-000 Harness assy, floor
16 36903-72K51-000 Harness assy, floor
16 36903-72K61-000 Harness assy, floor
16 36903-72KE1-000 Harness assy, floor
16 36903-72KF1-000 Harness assy, floor
16 36903-72K30-000 Harness assy, floor
16 36903-72K70-000 Harness assy, floor
16 36903-72K80-000 Harness assy, floor
16 36903-72KA0-000 Harness assy, floor
16 36903-72KB0-000 Harness assy, floor
16 36903-72KG0-000 Harness assy, floor
16 36903-72KH0-000 Harness assy, floor
16 36903-72KC0-000 Harness assy, floor
16 36903-72KD0-000 Harness assy, floor
18 36650-72K30-000 Harness assy, engine
18 36650-72K40-000 Harness assy, engine
18 36650-72K10-000 Harness assy, engine
18 36650-72K20-000 Harness assy, engine
18 36650-72KA0-000 Harness assy, engine
19 36739-62J00-000 FUSE,BATTERY
20 36694-84A00-000 Cover,btry terminal
20 36694-68K00-000 COVER,BTRY TERMINAL
21 09403-13310-000 CLAMP
22 01550-0612A-000 Bolt
23 36651-85E00-000 Bracket, engine harness block
24 01550-1020A-000 Bolt - Bolt, bal sprocket
25 36652-86G00-000 Bracket, engine harness t/m
26 01550-0812A-000 Bolt
31 36653-62J00-000 BRACKET,ENG HARN APRON
33 36653-80G00-000 BRACKET,O2 CONN
35 23870-63J00-000 BRACKET,CLUTCH OIL PIPE
37 36655-62J00-000 Bracket, engine harness,automated mt
39 36995-57B30-000 BRACKET,HARN
41 36995-77E21-000 BRACKET,ENG HARN
43 36680-62J00-000 Harness assy, back door
43 36680-62J10-000 Harness assy, back door
43 36680-62J20-000 Harness assy, back door
44 09132-06023-000 SCREW(6X16)
45 36891-80G00-000 WIRE,RR DF GND
46 36615-62J11-000 Wire, power steering
46 36615-62J00-000 Wire, power steering
47 36820-62J10-000 Wire, room lamp
47 36820-62J00-000 Wire, room lamp
48 36840-62J00-000 Wire, fuel pump
49 36756-62J00-000 Wire, front door main
49 36756-62K10-000 Wire, front door main
49 36756-62K20-000 Wire, front door main
49 36756-62JA0-000 Wire, front door main
49 36756-62KB0-000 Wire, front door main
49 36756-72KA0-000 Wire, front door main
49 36756-62KC0-000 Wire, front door main
49 36756-62K30-000 Wire, front door main
49 36756-62KD0-000 Wire, front door main
49 36756-62J10-000 Wire, front door main
49 36756-72K10-000 Wire, front door main
49 36756-62J20-000 Wire, front door main
49 36756-62JB0-000 Wire, front door main
49 36756-72KB0-000 Wire, front door main
49 36756-62JC0-000 Wire, front door main
49 36756-62J30-000 Wire, front door main
49 36756-62JD0-000 Wire, front door main
50 36757-62J00-000 Wire, front door sub
50 36757-62K10-000 Wire, front door sub
50 36757-62K20-000 Wire, front door sub
50 36757-62KB0-000 Wire, front door sub
50 36757-72KA0-000 Wire, front door sub
50 36757-62KC0-000 Wire, front door sub
50 36757-62K30-000 Wire, front door sub
50 36757-62JA0-000 Wire, front door sub
50 36757-62KD0-000 Wire, front door sub
50 36757-62J10-000 Wire, front door sub
50 36757-72K10-000 Wire, front door sub
50 36757-62J20-000 Wire, front door sub
50 36757-62JB0-000 Wire, front door sub
50 36757-72KB0-000 Wire, front door sub
50 36757-62JC0-000 Wire, front door sub
50 36757-62J30-000 Wire, front door sub
50 36757-62JD0-000 Wire, front door main
51 36751-62J00-000 Wire, rear door lh
51 36751-62J10-000 Wire, rear door rh
52 36751-62JB0-000 Wire, rear door lh
53 77151-82000-000 FILM
53 84761-50X50-000 SEAL,140X190 - Seal, rr defogger wire hole
53 77151-82010-000 Seal
54 36780-72K31-000 Box set,j/b & bcm
54 36780-72K32-000 BOX SET,J/B&BCM
54 36780-72KD1-000 Box set,j/b & bcm
54 36780-72KD2-000 BOX SET,J/B&BCM
54 36780-72KD3-000 BOX SET,J/B&BODY CONT MDL
54 36780-72K22-000 Box set,j/b & bcm
54 36780-72K24-000 BOX SET,J/B&BODY CONT MDL
54 36780-72KF2-000 Box set,j/b & bcm
54 36780-72KF4-000 BOX SET,J/B&BODY CONT MDL
57 09481-20501-000 FUSE(20A)
58 09481-25501-000 FUSE(25A)
60 08316-1008A-000 NUT - Nut, idle gear shaft
66 09250-30008-000 CAP(OD:40)
66 72999-67H00-000 CAP,OD:40
67 36656-62J00-000 BRACKET,MAT HARN
68 36843-57KA0-000 Wire, bumper
69 36930-82010-000 COVER,HARNESS - Cover, roof wire
70 36651-57K00-000 BRACKET,ENG HARN INTAKE
72 36651-79J60-000 BRACKET,ENG HARN HOOK
74 36691-63J00-000 WIRE,A/B
75 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
