Search › Model › RS413D
RS413D

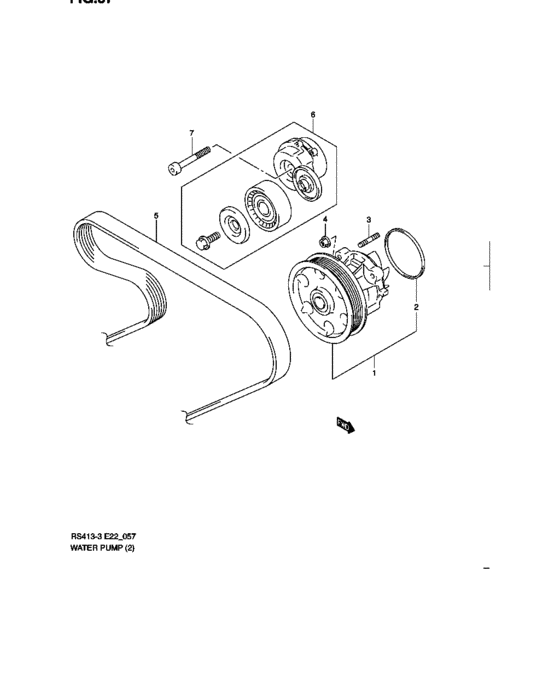

Water pump (DIESEL) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-N86J0-000 | Pump Assy, Water |
| 2 | 17431-N86J0-000 | Seal |
| 3 | 17415-N86J0-000 | Stud bolt - M6 |
| 4 | 17416-N86J0-000 | Nut - M6 |
| 5 | 17521-85E00-000 | Belt, generator |
| 6 | 17540-85E00-000 | Tentioner assy belt |
| 7 | 17545-M86J0-000 | Bolt - 10x55 |
| OEM | Part name | Category |
|---|---|---|
| 17400-N86J0-000 | Pump Assy, Water | Water pump (DIESEL) |
| 17415-N86J0-000 | Stud bolt - M6 | Water pump (DIESEL) |
| 17416-N86J0-000 | Nut - M6 | Water pump (DIESEL) |
| 17431-N86J0-000 | Seal | Water pump (DIESEL) |
| 17521-85E00-000 | Belt, generator | Water pump (DIESEL) |
| 17540-85E00-000 | Tentioner assy belt | Water pump (DIESEL) |
| 17545-M86J0-000 | Bolt - 10x55 | Water pump (DIESEL) |
