Search › Model › RS413D
RS413D

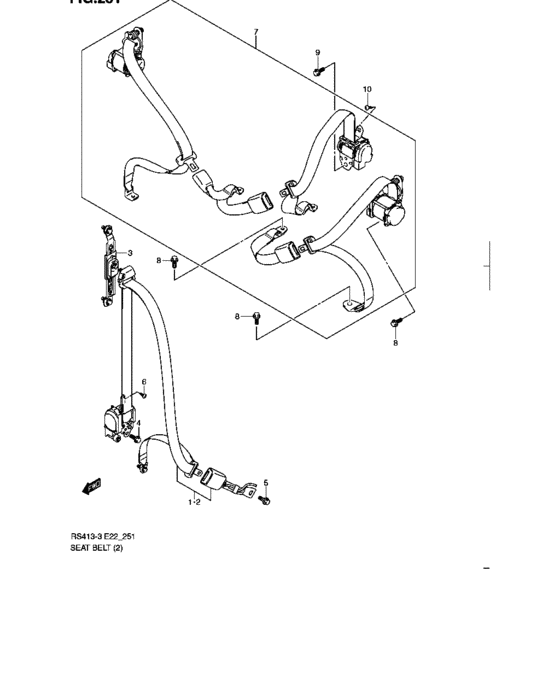

Seat belt (5DR) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-62J01-ED3 | Belt assy, front rh - Gray |
| 1 | 84901-62J11-ED3 | Belt assy, front rh - Gray |
| 2 | 84902-62J11-ED3 | Belt assy, front lh - Gray |
| 2 | 84902-62J01-ED3 | Belt assy, front lh - Gray |
| 3 | 84990-63J00-6GS | ADJUSTER ASSY,FR SHLDR |
| 4 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle |
| 5 | 09117-11002-000 | BOLT(11X20) |
| 6 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 7 | 84908-62JF2-P4Z | Belt assy, rr - Gray |
| 8 | 09103-11002-000 | BOLT(7/16X22) |
| 9 | 09103-11007-000 | BOLT(7/16X20) |
| 10 | 03141-0616A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | Seat belt (5DR) |
| 03141-0616A-000 | SCREW | Seat belt (5DR) |
| 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | Seat belt (5DR) |
| 09103-11002-000 | BOLT(7/16X22) | Seat belt (5DR) |
| 09103-11007-000 | BOLT(7/16X20) | Seat belt (5DR) |
| 09117-11002-000 | BOLT(11X20) | Seat belt (5DR) |
| 84901-62J01-ED3 | Belt assy, front rh - Gray | Seat belt (5DR) |
| 84901-62J11-ED3 | Belt assy, front rh - Gray | Seat belt (5DR) |
| 84902-62J01-ED3 | Belt assy, front lh - Gray | Seat belt (5DR) |
| 84902-62J11-ED3 | Belt assy, front lh - Gray | Seat belt (5DR) |
| 84908-62JF2-P4Z | Belt assy, rr - Gray | Seat belt (5DR) |
| 84990-63J00-6GS | ADJUSTER ASSY,FR SHLDR | Seat belt (5DR) |
