RS413D

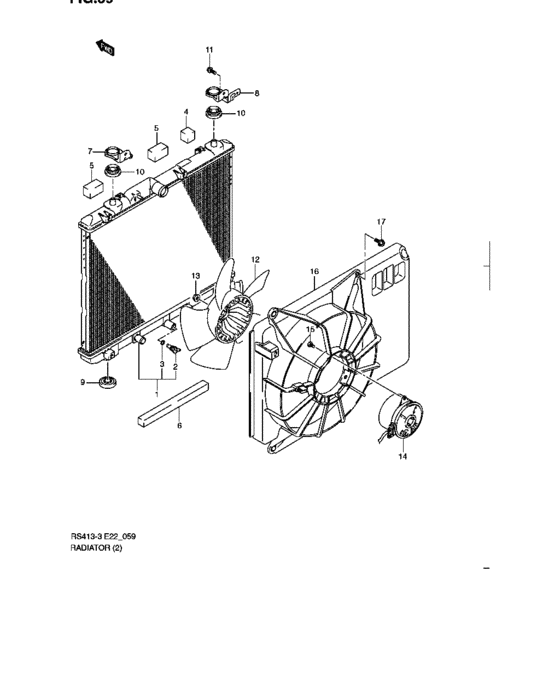

Radiator (DIESEL) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-72K50-000 | Radiator assy |
| 2 | 17751-61A00-000 | PLUG,DRAIN |
| 3 | 17759-72010-000 | O-RING |
| 4 | 17792-63J00-000 | SEAL,RADIATOR NO.2 |
| 6 | 17793-63J00-000 | SEAL,RADIATOR NO.3 |
| 7 | 17861-63J01-000 | BRACKET,RDTR SUPPORT UPPER |
| 8 | 17861-72K50-000 | Bracket, rdtr sup upper |
| 9 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR |
| 10 | 17879-83E00-000 | MOUNT,RDTR SUPPORT UPR |
| 11 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 12 | 17111-62J50-000 | Fan, cooling - Main |
| 13 | 08316-2005A-000 | NUT |
| 14 | 17120-72K50-000 | Motor assy, fan |
| 15 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate |
| 15 | 02142-0510B-000 | SCREW - Bolt |
| 16 | 17760-72K50-000 | Shroud |
| 17 | 02162-0616B-000 | SCREW - Bolt, adjust |
| OEM | Part name | Category |
|---|---|---|
| 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | Radiator (DIESEL) |
| 02142-0510B-000 | SCREW - Bolt | Radiator (DIESEL) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Radiator (DIESEL) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radiator (DIESEL) |
| 08316-2005A-000 | NUT | Radiator (DIESEL) |
| 17111-62J50-000 | Fan, cooling - Main | Radiator (DIESEL) |
| 17120-72K50-000 | Motor assy, fan | Radiator (DIESEL) |
| 17700-72K50-000 | Radiator assy | Radiator (DIESEL) |
| 17751-61A00-000 | PLUG,DRAIN | Radiator (DIESEL) |
| 17759-72010-000 | O-RING | Radiator (DIESEL) |
| 17760-72K50-000 | Shroud | Radiator (DIESEL) |
| 17792-63J00-000 | SEAL,RADIATOR NO.2 | Radiator (DIESEL) |
| 17793-63J00-000 | SEAL,RADIATOR NO.3 | Radiator (DIESEL) |
| 17861-63J01-000 | BRACKET,RDTR SUPPORT UPPER | Radiator (DIESEL) |
| 17861-72K50-000 | Bracket, rdtr sup upper | Radiator (DIESEL) |
| 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | Radiator (DIESEL) |
| 17879-83E00-000 | MOUNT,RDTR SUPPORT UPR | Radiator (DIESEL) |
