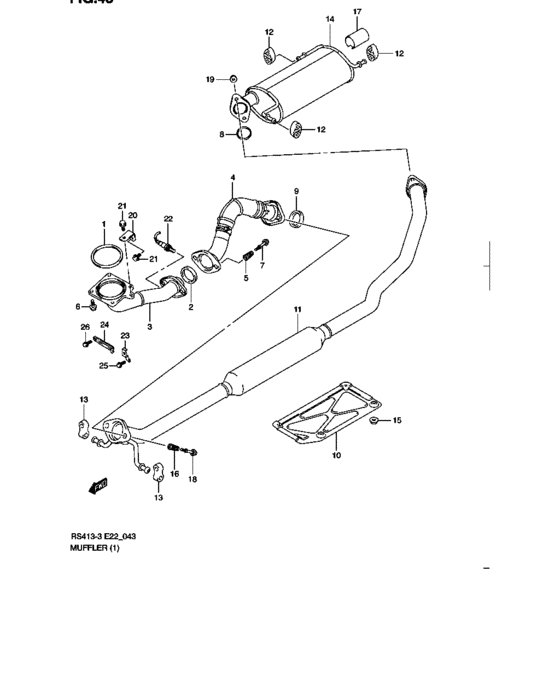

Muffler (RS413,RS415)
30
| # | OEM | Part name |
|---|
| 1 |
14181-70H00-000 |
GASKET,EXH MANF |
| 2 |
14183-79J10-000 |
RING,SEAL EXH PIPE |
| 2 |
14183-79J00-000 |
Seal ring |
| 3 |
14190-62JB0-000 |
Pipe, exh no.1 |
| 3 |
14190-62JC0-000 |
Pipe, exh no.1 |
| 4 |
14220-62JB0-000 |
Pipe, exh no.2 |
| 4 |
14220-62JC0-000 |
Pipe, exhaust no.2 |
| 5 |
14492-82610-000 |
SPRING,EXH PIPE |
| 6 |
09103-10324-000 |
BOLT(10X20) |
| 7 |
09119-10073-000 |
BOLT(10X65) |
| 8 |
14182-58B10-000 |
GASKET,MUFFLER |
| 10 |
14231-63J00-000 |
INSULATOR,HEAT |
| 11 |
14250-62JB0-000 |
Pipe, exh center |
| 12 |
14281-80JA0-000 |
MOUNTING,MUF |
| 13 |
14281-71C01-000 |
MOUNTING,MUF |
| 14 |
14300-62JB0-000 |
Muffler |
| 15 |
14357-72J00-000 |
NUT |
| 17 |
14630-62J00-000 |
Pipe, muf tail |
| 19 |
09159-10049-000 |
Nut |
| 19 |
09159-10102-000 |
NUT |
| 20 |
14271-63J00-000 |
Stiffener,exh manf,r |
| 20 |
01550-1025A-000 |
Bolt - Bolt, drive gear |
| 20 |
14271-63J01-000 |
STIFFENER,EXH MANF |
| 22 |
18213-62J12-000 |
Sensor, oxygen |
| 23 |
18214-63J00-000 |
Bracket,oxygen sensor |
| 23 |
18214-63J01-000 |
BRACKET,OXYGEN SENSOR |
| 24 |
09404-08419-000 |
CLAMP(L:80) |
| 24 |
09404-08422-000 |
Clamp,wiring Harness |
| 25 |
01550-0612A-000 |
Bolt |
| 26 |
01550-0816A-000 |
Bolt - Bolt, rear |
| OEM |
Part name |
Category |
| 01550-0612A-000 |
Bolt |
Muffler (RS413,RS415) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
Muffler (RS413,RS415) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
Muffler (RS413,RS415) |
| 09103-10324-000 |
BOLT(10X20) |
Muffler (RS413,RS415) |
| 09119-10073-000 |
BOLT(10X65) |
Muffler (RS413,RS415) |
| 09159-10049-000 |
Nut |
Muffler (RS413,RS415) |
| 09159-10102-000 |
NUT |
Muffler (RS413,RS415) |
| 09404-08419-000 |
CLAMP(L:80) |
Muffler (RS413,RS415) |
| 09404-08422-000 |
Clamp,wiring Harness |
Muffler (RS413,RS415) |
| 14181-70H00-000 |
GASKET,EXH MANF |
Muffler (RS413,RS415) |
| 14182-58B10-000 |
GASKET,MUFFLER |
Muffler (RS413,RS415) |
| 14183-79J00-000 |
Seal ring |
Muffler (RS413,RS415) |
| 14183-79J10-000 |
RING,SEAL EXH PIPE |
Muffler (RS413,RS415) |
| 14190-62JB0-000 |
Pipe, exh no.1 |
Muffler (RS413,RS415) |
| 14190-62JC0-000 |
Pipe, exh no.1 |
Muffler (RS413,RS415) |
| 14220-62JB0-000 |
Pipe, exh no.2 |
Muffler (RS413,RS415) |
| 14220-62JC0-000 |
Pipe, exhaust no.2 |
Muffler (RS413,RS415) |
| 14231-63J00-000 |
INSULATOR,HEAT |
Muffler (RS413,RS415) |
| 14250-62JB0-000 |
Pipe, exh center |
Muffler (RS413,RS415) |
| 14271-63J00-000 |
Stiffener,exh manf,r |
Muffler (RS413,RS415) |
| 14271-63J01-000 |
STIFFENER,EXH MANF |
Muffler (RS413,RS415) |
| 14281-71C01-000 |
MOUNTING,MUF |
Muffler (RS413,RS415) |
| 14281-80JA0-000 |
MOUNTING,MUF |
Muffler (RS413,RS415) |
| 14300-62JB0-000 |
Muffler |
Muffler (RS413,RS415) |
| 14357-72J00-000 |
NUT |
Muffler (RS413,RS415) |
| 14492-82610-000 |
SPRING,EXH PIPE |
Muffler (RS413,RS415) |
| 14630-62J00-000 |
Pipe, muf tail |
Muffler (RS413,RS415) |
| 18213-62J12-000 |
Sensor, oxygen |
Muffler (RS413,RS415) |
| 18214-63J00-000 |
Bracket,oxygen sensor |
Muffler (RS413,RS415) |
| 18214-63J01-000 |
BRACKET,OXYGEN SENSOR |
Muffler (RS413,RS415) |
