RS413D

Suzuki KEI-SWIFT · 4,097 parts · 267 categories
RS413D ×

← Back to categories

4,097 items

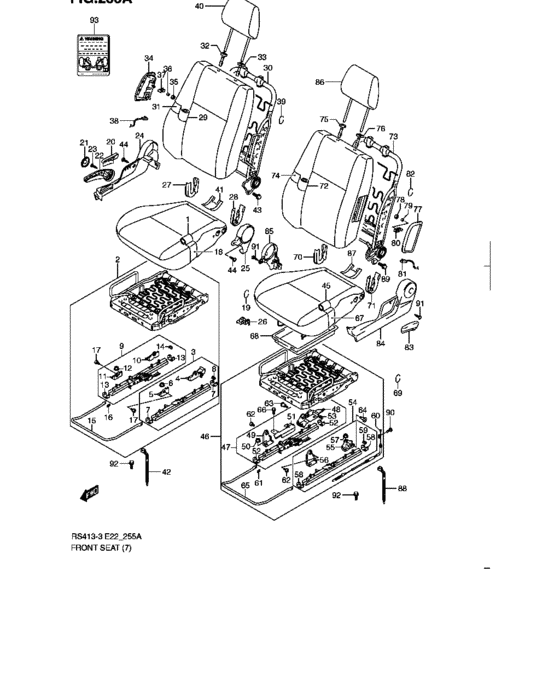

Front seat (3DR:RHD:GLX:N/SPOILER) 78
#OEMPart name
1 85180-62J20-EHS Trim, fr cushion rh
2 85103-72K20-000 Frame assy, fr cushion rh
3 86601-62J20-000 Adjuster sub assy, inside
4 86712-62J20-000 Riser, lifter rr inside
5 86721-62J20-000 Riser, front lifter rh
6 08316-1008A-000 NUT - Nut, idle gear shaft
7 86652-62J00-000 Cap, fr adjuster lower
8 86654-62J00-000 Cap, fr adjuster upper
9 86603-62J20-000 Adjuster sub assy, outside
10 86641-62J20-000 Riser, rear outside
11 86710-62J20-000 Riser, front lifter rh
15 86691-62J00-000 Handle, seat adjuster
16 86692-62J00-000 Nut, adjuster handle
17 86717-63J30-000 BOLT,RISER
18 85160-62J10-000 Pad, front cushion
19 09387-19001-000 RING
20 85211-63J00-S1S Knob, rclng, rh - Gray
21 85214-63J20-S1S CAP,LIFTER LEVER
22 85213-62J20-S1S LEVER,SEAT LIFTER
23 01570-0816A-000 Bolt
24 85221-62J00-S1S Cover, reclining outside - Gray
25 85241-62J00-S1S Cover, reclining inside - Gray
26 85243-62J20-000 Cover, rr riser inside rh
27 85222-62J00-S1S Cover, back frame rh - Gray
28 85242-62J00-S1S Cover, back frame lh - Gray
29 85380-63J00-EHS Trim, fr back rh
29 85380-63JA0-EHS Trim, fr back rh
30 85303-72K00-000 Frame assy, front back rh
31 85360-62J10-000 Pad, front back rh
31 85360-62JA0-000 PAD,FR BACK,R
32 85341-63J10-P4Z GUIDE,HEADRESTRAINT
32 85341-63J11-P4Z GUIDE,HEADRESTRAINT
32 85341-63J12-P4Z Guide,headrestraint
33 85840-63J10-P4Z GUIDE,HEADRESTRAINT
33 85840-63J11-P4Z GUIDE COMP,HEADRESTRAINT
33 85840-63J12-P4Z Guide Comp,headrestraint
34 85350-62J00-S1S Module assy, side air bag
35 85352-62J00-000 NUT,SIDE AIRBAG
36 85353-62J00-000 SLEEVE,SIDE AIRBAG
37 85351-62J00-000 FASTENER,SIDE AIR BAG MTG
38 85355-62J00-000 HARNESS ASSY,SIDE AIRBAG
40 86401-62J00-V3T Headrestraint assy - Black
41 86658-58J90-S9K TRIM,FR CUSHION RR
42 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
43 01550-1016A-000 Bolt - Plug, oil gallery
44 03241-0510A-000 SCREW
45 85680-62J00-EHS Trim, fr cushion lh
46 85603-62K40-000 Frame assy, fr cushion lh
46 85603-62K50-000 Frame assy, fr cushion lh
46 85603-62K51-000 Frame assy, fr cushion lh
47 86602-62K00-000 Adjuster sub assy, inside
47 86602-62K10-000 Adjuster sub assy, inside
48 86762-62K00-000 Riser
49 86770-62J00-000 Riser, front inside lh
51 85643-62K00-000 Protector, hanress
54 86604-62J00-000 Adjuster sub assy, outside
55 86646-62J00-000 Riser, rear outside lh
56 86760-62J00-000 Riser, front outside lh
60 86656-62K10-000 Cable, walkin
62 01550-0816A-000 Bolt - Bolt, rear
63 86717-63J10-000 BOLT,RR RISER INSIDE
64 86719-63J10-000 BOLT,RR RISER OUTSIDE
65 86891-62K00-000 Handle, adjuster
66 01550-0612A-000 Bolt
68 85150-63J00-000 TRAY,FR SEAT UNDER
72 85380-63J40-EHS Trim, fr back rh - Blue/black
72 85880-63JE0-EHS Trim, fr back
73 85803-62K00-000 Frame, fr back lh
74 85860-62J10-000 Pad, front back lh
74 85860-62JA0-000 PAD,FR BACK,L
77 85850-62J00-S1S Module assy, side air bag - Gray
83 85711-63J00-S1S Knob, reclining lh - Gray
84 85721-62J00-S1S Cover, reclining outside (gray
85 85741-62J00-S1S Cover, reclining inside - Gray
90 02142-0516A-000 SCREW
92 09119-08097-000 BOLT(8X25)
93 85354-59JC1-000 LABEL,SIDE AIRBAG
93 85354-59JD0-000 Label, side air bag - Gray
