RS413D

Suzuki KEI-SWIFT · 4,097 parts · 267 categories
RS413D ×

← Back to categories

4,097 items

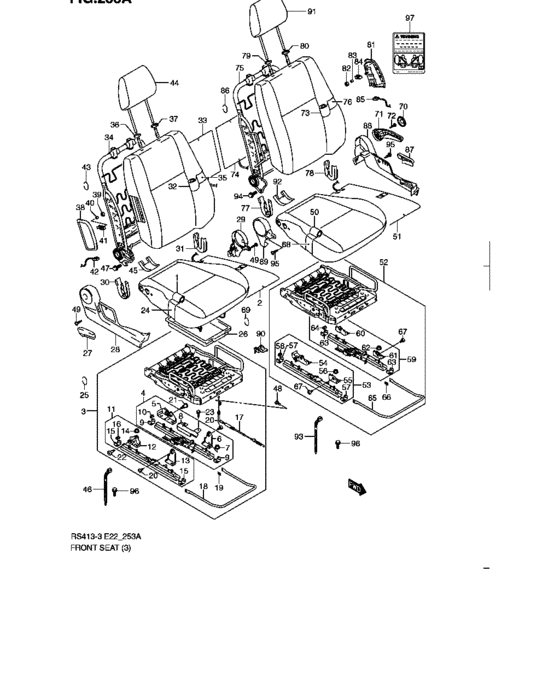

Front seat (3DR:LHD:GLX,N/SPOILER) 82
#OEMPart name
1 85180-62J00-EHS Trim, fr cushion
2 85170-62J00-000 Heater,fr cush
2 85170-62J02-000 HEATER,FR CUSH
3 85103-62K40-000 Frame assy, fr cushion rh
3 85103-62K50-000 Frame assy, fr cushion rh
3 85103-62K51-000 Frame assy, fr cushion rh
4 86601-62K00-000 Adjuster sub assy, inside
4 86601-62K10-000 Adjuster sub assy, inside
5 86712-62K00-000 Riser
6 86720-62J00-000 Riser, front inside rh
7 08316-1008A-000 NUT - Nut, idle gear shaft
8 85143-62K00-000 Protector, harness, r
9 86652-62J00-000 Cap, fr adjuster lower
10 86654-62J00-000 Cap, fr adjuster upper
11 86603-62J00-000 Adjuster sub assy, outside
12 86641-62J00-000 Riser, rear outside rh
13 86710-62J00-000 Riser, front outside rh
17 86656-62K10-000 Cable, walkin
18 86691-62K00-000 Handle, adjuster
19 86692-62J00-000 Nut, adjuster handle
20 01550-0816A-000 Bolt - Bolt, rear
21 86717-63J10-000 BOLT,RR RISER INSIDE
22 86719-63J10-000 BOLT,RR RISER OUTSIDE
23 01550-0612A-000 Bolt
24 85160-62J10-000 Pad, front cushion
25 09387-19001-000 RING
26 85150-63J00-000 TRAY,FR SEAT UNDER
27 85211-63J00-S1S Knob, rclng, rh - Gray
28 85221-62J00-S1S Cover, reclining outside - Gray
29 85241-62J00-S1S Cover, reclining inside - Gray
30 85222-62J00-S1S Cover, back frame rh - Gray
31 85242-62J00-S1S Cover, back frame lh - Gray
32 85380-63J40-EHS Trim, fr back rh - Blue/black
32 85380-63JE0-EHS Trim, fr back rh
33 85370-63J00-000 Heater,fr back
33 85370-63J01-000 HEATER,FR BACK
34 85303-62K00-000 Frame assy, fr back rh
35 85360-62J10-000 Pad, front back rh
35 85360-62JA0-000 PAD,FR BACK,R
36 85341-63J10-P4Z GUIDE,HEADRESTRAINT
36 85341-63J11-P4Z GUIDE,HEADRESTRAINT
36 85341-63J12-P4Z Guide,headrestraint
37 85840-63J10-P4Z GUIDE,HEADRESTRAINT
37 85840-63J11-P4Z GUIDE COMP,HEADRESTRAINT
37 85840-63J12-P4Z Guide Comp,headrestraint
38 85350-62J00-S1S Module assy, side air bag
39 85352-62J00-000 NUT,SIDE AIRBAG
40 85353-62J00-000 SLEEVE,SIDE AIRBAG
41 85351-62J00-000 FASTENER,SIDE AIR BAG MTG
42 85355-62J00-000 HARNESS ASSY,SIDE AIRBAG
44 86401-62J00-V3T Headrestraint assy - Black
45 86658-58J90-S9K TRIM,FR CUSHION RR
46 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
47 01550-1016A-000 Bolt - Plug, oil gallery
48 02142-0516A-000 SCREW
49 03241-0510A-000 SCREW
50 85680-62J20-EHS Trim, fr cushion lh
52 85603-72K20-000 Frame, fr cushion lh
53 86602-62J20-000 Adjuster sub assy, inside
54 86762-62J20-000 Riser, lifter rr inside
55 86771-62J20-000 Riser, front lifter lh
59 86604-62J20-000 Adjuster sub assy, outside
60 86646-62J20-000 Riser, rear outside lh
61 86760-62J20-000 Riser, front lifter lh
65 86691-62J00-000 Handle, seat adjuster
67 86717-63J40-000 BOLT,RISER
70 85214-63J20-S1S CAP,LIFTER LEVER
71 85713-62J20-S1S LEVER,SEAT LIFTER,L
72 01570-0816A-000 Bolt
73 85380-63J00-EHS Trim, fr back rh
73 85880-63JA0-EHS Trim, fr back lh
75 85803-72K00-000 Frame assy, front back lh
76 85860-62J10-000 Pad, front back lh
76 85860-62JA0-000 PAD,FR BACK,L
81 85850-62J00-S1S Module assy, side air bag - Gray
87 85711-63J00-S1S Knob, reclining lh - Gray
88 85721-62J00-S1S Cover, reclining outside (gray
89 85741-62J00-S1S Cover, reclining inside - Gray
90 85743-62J20-000 Cover, rr riser inside lh
96 09119-08097-000 BOLT(8X25)
97 85354-59JC1-000 LABEL,SIDE AIRBAG
97 85354-59JD0-000 Label, side air bag - Gray
