RS413D

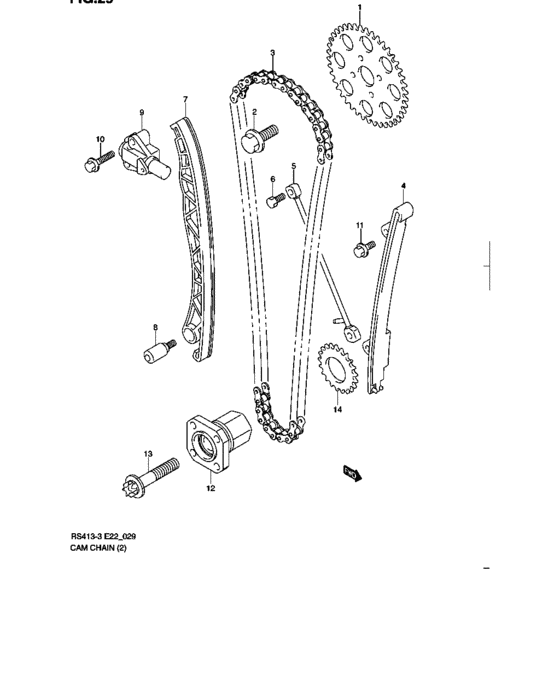

Cam chain (RS413D) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 12743-M86J0-000 | Sprocket, camshaft timing |
| 2 | 12753-N86J0-000 | Bolt - 12x33 |
| 3 | 12761-N86J0-100 | Chain, timing |
| 4 | 12771-M86J0-000 | Guide, Timing Chain |
| 5 | 12781-M86J0-000 | Pipe, chain oil jet |
| 6 | 12782-N86J0-000 | Bolt, chain oil jet pipe |
| 7 | 12811-M86J0-000 | Lever, timing chain tensioner |
| 8 | 12812-N86J0-000 | Bolt, tensioner lever |
| 9 | 12831-M86J0-000 | Adjuster assy, tensioner |
| 10 | 12832-N86J0-000 | Bolt - 6x32 |
| 11 | 13943-N86J0-000 | Bolt, eng harn brkt fr |
| 12 | 16211-M86J0-000 | Flange, oil pump drive |
| 13 | 16215-N86J0-000 | Bolt, oil pump flange - 14x60 |
| 14 | 12631-M86J0-000 | Sprocket, crank timing |
| OEM | Part name | Category |
|---|---|---|
| 12631-M86J0-000 | Sprocket, crank timing | Cam chain (RS413D) |
| 12743-M86J0-000 | Sprocket, camshaft timing | Cam chain (RS413D) |
| 12753-N86J0-000 | Bolt - 12x33 | Cam chain (RS413D) |
| 12761-N86J0-100 | Chain, timing | Cam chain (RS413D) |
| 12771-M86J0-000 | Guide, Timing Chain | Cam chain (RS413D) |
| 12781-M86J0-000 | Pipe, chain oil jet | Cam chain (RS413D) |
| 12782-N86J0-000 | Bolt, chain oil jet pipe | Cam chain (RS413D) |
| 12811-M86J0-000 | Lever, timing chain tensioner | Cam chain (RS413D) |
| 12812-N86J0-000 | Bolt, tensioner lever | Cam chain (RS413D) |
| 12831-M86J0-000 | Adjuster assy, tensioner | Cam chain (RS413D) |
| 12832-N86J0-000 | Bolt - 6x32 | Cam chain (RS413D) |
| 13943-N86J0-000 | Bolt, eng harn brkt fr | Cam chain (RS413D) |
| 16211-M86J0-000 | Flange, oil pump drive | Cam chain (RS413D) |
| 16215-N86J0-000 | Bolt, oil pump flange - 14x60 | Cam chain (RS413D) |
