Search › Model › RS413

RS413

Suzuki KEI-SWIFT · 4,228 parts · 222 categories
RS413 ×

← Back to categories

4,228 items

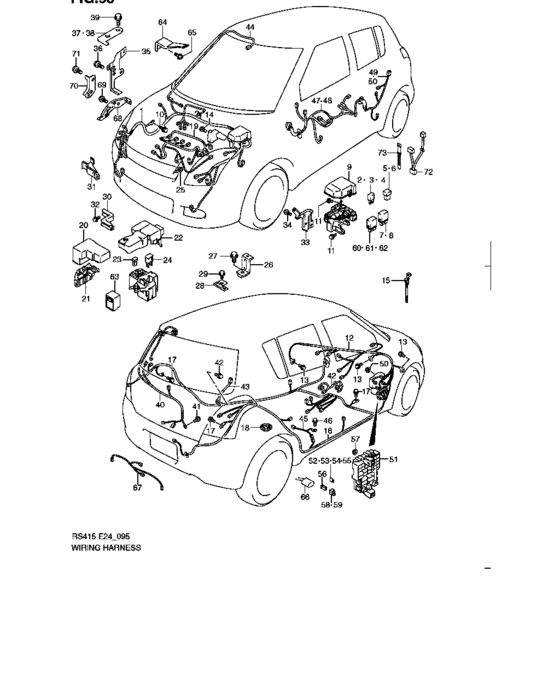

Wiring harness (WIRING HARNESS) 209
#OEMPart name
1 36610-63J60-000 HARNESS ASSY,MAIN
1 36610-63J70-000 Harness assy,main
1 36610-63J10-000 HARNESS ASSY,MAIN
1 36610-63J20-000 HARNESS ASSY,MAIN
1 36610-57K60-000 HARNESS ASSY,MAIN
1 36610-57K10-000 Harness assy,main
1 36610-63J40-000 HARNESS ASSY,MAIN
1 36610-63J50-000 HARNESS ASSY,MAIN
1 36610-73K10-000 HARNESS ASSY,MAIN
1 36610-73K20-000 HARNESS ASSY,MAIN
1 36601-73K20-000 Harness assy,main
1 36601-73K30-000 HARNESS ASSY,MAIN
1 36910-73K30-000 HARNESS ASSY,MAIN
1 36610-73KJ0-000 HARNESS ASSY,MAIN
1 36601-73K00-000 HARNESS ASSY,MAIN
1 36601-73K10-000 HARNESS ASSY,MAIN
1 36601-73KG0-000 HARNESS ASSY,MAIN
1 36601-73KK0-000 Harness assy,main
1 36601-73KM0-000 HARNESS ASSY,MAIN
1 36601-73KL0-000 HARNESS ASSY,MAIN
1 36601-73KJ0-000 HARNESS ASSY,MAIN
1 36601-73K60-000 HARNESS ASSY,MAIN
1 36601-73K70-000 HARNESS ASSY,MAIN
2 09481-10501-000 FUSE(10A)
3 09481-15501-000 FUSE(15A)
4 09481-30501-000 FUSE(30A)
5 09481-30401-000 FUSE(30A)
6 09481-50401-000 FUSE(50A)
7 38860-76F01-000 RELAY ASSY - Relay, starting motor
9 36717-63J00-000 COVER,RELAY BOX
10 09115-06005-000 BOLT(6X16)
11 02162-0616B-000 SCREW - Bolt, adjust
12 36620-63J91-000 HARNESS ASSY,I/P
12 36620-63JB1-000 HARNESS ASSY,I/P
12 36620-63JA1-000 HARNESS ASSY,I/P
12 36620-63JG1-000 Harness assy,instrument panel
12 36620-63JC1-000 Harness assy,instrument panel
12 36620-63JH1-000 Harness assy,instrument panel
12 36620-63J30-000 HARNESS ASSY,I/P
12 36602-63J41-000 HARNESS ASSY,I/P
12 36620-63J10-000 Harness assy,i/p
12 36602-63J11-000 HARNESS ASSY,I/P
12 36620-63J20-000 HARNESS ASSY,I/P
12 36602-63J21-000 HARNESS ASSY,I/P
12 36620-57K01-000 HARNESS ASSY,I/P
12 36620-63J51-000 HARNESS ASSY,I/P
12 36620-63J61-000 Harness assy,i/p
12 36620-73K30-000 HARNESS ASSY,I/P
12 36620-73K70-000 HARNESS ASSY,I/P
12 36602-73K21-000 HARNESS ASSY,I/P
12 36602-73K22-000 Harness assy,i/p
12 36602-73K41-000 Harness assy,i/p
12 36602-73K42-000 Harness assy,i/p
12 36602-73K30-000 Harness assy,i/p
12 36602-73K31-000 Harness assy,i/p
12 36602-73K60-000 Harness assy,i/p
12 36602-73K61-000 Harness assy,i/p
12 36602-73K50-000 Harness assy,i/p
12 36602-73K51-000 Harness assy,i/p
12 36602-73K70-000 Harness assy,i/p
12 36602-73K71-000 Harness assy,i/p
12 36620-73K31-000 HARNESS ASSY,I/P
12 36620-73K21-000 HARNESS ASSY,I/P
12 36602-73K11-000 HARNESS ASSY,I/P
12 36620-73KB0-000 Harness assy,i/p
12 36620-73KB1-000 HARNESS ASSY,I/P
12 36620-73K60-000 HARNESS ASSY,I/P
12 36620-73K61-000 HARNESS ASSY,I/P
12 36620-73K10-000 HARNESS ASSY,I/P
12 36620-73K20-000 HARNESS ASSY,I/P
12 36602-73K00-000 HARNESS ASSY,I/P
12 36602-73K01-000 HARNESS ASSY,I/P
12 36602-73KU1-000 HARNESS ASSY,I/P
12 36602-73K10-000 HARNESS ASSY,I/P
12 36602-73K80-000 HARNESS ASSY,I/P
12 36602-73K90-000 HARNESS ASSY,I/P
14 02162-0612A-000 SCREW - Bolt, bracket
15 09407-12404-000 CLAMP(L:140)
16 36630-63JL0-000 Harness assy,floor
16 36630-63JG0-000 Harness assy,floor
16 36630-63JH0-000 HARNESS ASSY,FLOOR
16 36630-63JJ0-000 Harness assy,floor
16 36630-63JK0-000 HARNESS ASSY,FLOOR
16 36630-63J80-000 HARNESS ASSY,FLOOR
16 36630-63J90-000 HARNESS ASSY,FLOOR
16 36630-57K30-000 Harness assy,floor
16 36630-63JM0-000 Harness assy,floor
16 36630-63JN0-000 Harness assy,floor
16 36630-57K40-000 Harness assy,floor
16 36630-63JE0-000 Harness assy,floor
16 36630-63JD0-000 HARNESS ASSY,FLOOR
16 36630-73K60-000 HARNESS ASSY,FLOOR
16 36630-73K70-000 HARNESS ASSY,FLOOR
16 36930-73K00-000 HARNESS ASSY,FLOOR
16 36930-73K10-000 HARNESS ASSY,FLOOR
16 36603-73K60-000 Harness assy,floor
16 36603-73K20-000 Harness assy,floor
16 36603-73K30-000 Harness assy,floor
16 36603-73K40-000 HARNESS ASSY,FLOOR
16 36603-73K50-000 Harness assy,floor
16 36630-73KL0-000 HARNESS ASSY,FLOOR
16 36603-73K00-000 HARNESS ASSY,FLOOR
16 36603-73KF0-000 Harness assy,floor
16 36603-73KK0-000 HARNESS ASSY,FLOOR
16 36603-73KD0-000 Harness assy,floor
16 36603-73KH0-000 HARNESS ASSY,FLOOR
16 36630-73KA0-000 HARNESS ASSY,FLOOR
16 36630-73KB0-000 HARNESS ASSY,FLOOR
16 36603-73KE0-000 HARNESS ASSY,FLOOR
16 36603-73K10-000 HARNESS ASSY,FLOOR
16 36603-73K90-000 HARNESS ASSY,FLOOR
18 09250-25007-000 CAP(OD:25.0)
19 36650-63J31-000 Harness assy,engine
19 36650-63J70-000 Harness assy,eng
19 36650-63J11-000 HARNESS ASSY,ENGINE
19 36650-57K10-000 Harness assy,eng
19 36650-63J50-000 HARNESS ASSY,ENGINE
19 36650-73K30-000 HARNESS ASSY,ENGINE
19 36650-73K10-000 HARNESS ASSY,ENGINE
19 36650-73K40-000 HARNESS ASSY,ENGINE
19 36605-73K00-000 HARNESS ASSY,ENGINE
19 36650-73KB0-000 HARNESS ASSY,ENGINE
20 36694-75J00-000 COVER,BATTERY TERMINAL
21 36739-62J00-000 FUSE,BATTERY
22 36694-63J00-000 COVER,BATTERY TERMINAL
24 09481-80301-000 FUSE(80A)
25 01550-0612A-000 Bolt
26 36651-60J00-000 BRACKET,ENG HARN BLOCK
27 01550-1025A-000 Bolt - Bolt, drive gear
28 36652-60J00-000 BRACKET,ENG HARN T/M
29 01550-0816A-000 Bolt - Bolt, rear
33 36653-63J10-000 BRACKET,ENG HARN BODY
35 36653-80G00-000 BRACKET,O2 CONN
37 36995-77E21-000 BRACKET,ENG HARN
40 36680-63J00-000 HARNESS ASSY,BACK DOOR
40 36680-63J10-000 HARNESS ASSY,BACK DOOR
41 09132-06023-000 SCREW(6X16)
42 36891-80G00-000 WIRE,RR DF GND
43 36615-63J10-000 WIRE,EPS
43 36615-63J00-000 WIRE,EPS
44 36820-63J10-000 WIRE,DOME LAMP
44 36820-63J00-000 WIRE,DOME LAMP
45 36840-63J00-000 Wire comp,fuel pump
45 36840-63J10-000 WIRE,FUEL PUMP
46 01550-0610A-000 Bolt
47 36756-63J21-000 WIRE,P/W MAIN
47 36756-63J71-000 WIRE,P/W MAIN
47 36756-63J80-000 WIRE,P/W MAIN
47 36756-73K40-000 WIRE,P/W MAIN
47 36756-73K10-000 WIRE,P/W MAIN
47 36756-63J90-000 WIRE,P/W MAIN
47 36756-63JA0-000 WIRE,P/W MAIN
47 36756-63J60-000 WIRE,P/W MAIN
47 36756-73K20-000 WIRE,P/W MAIN
48 36757-63J20-000 WIRE,P/W SUB
48 36757-63J00-000 WIRE,P/W SUB
48 36757-63J40-000 WIRE,P/W SUB
48 36757-63J50-000 WIRE,P/W SUB
48 36757-63J60-000 WIRE,P/W SUB
48 36757-63J30-000 WIRE,P/W SUB
48 36757-73K40-000 WIRE,P/W SUB
48 36757-73K00-000 WIRE,P/W SUB
48 36757-63J10-000 WIRE,P/W SUB
48 36757-73K10-000 WIRE,P/W SUB
49 36751-63J00-000 WIRE,RR DR SIDE,R
50 36751-63JA0-000 WIRE,RR DR SIDE,L
51 36780-62JF0-000 Box set,j/b & body cont mdl
51 36780-62JF1-000 BOX SET,J/B&BCM
51 36780-62J11-000 BOX ASSY,JUNCTION
51 36780-62J12-000 BOX SET,J/B&BODY CONT MDL
51 36780-62J13-000 Box set,j/b & body cont mdl
51 36780-62J14-000 BOX SET,J/B&BCM
51 36780-62J01-000 BOX ASSY,JUNCTION
51 36780-62J04-000 Box assy,junction
51 36780-62J05-000 BOX SET,J/B&BCM
51 36780-62J90-000 BOX SET,J/B&BODY CONT MDL
51 36780-62J91-000 Box set,j/b & body cont mdl
51 36780-62J92-000 Box set,j/b & bcm
51 36780-62JB0-000 BOX SET,J/B&BODY CONT MDL
51 36780-62JB1-000 Box set,j/b & body cont mdl
51 36780-62JB2-000 BOX SET,J/B&BCM
51 36780-72KK1-000 Box set,j/b & bcm
51 36780-72KK3-000 BOX SET,J/B&BODY CONT MDL
51 36780-72KB2-000 Box set,j/b & bcm
51 36780-72KB4-000 BOX SET,J/B&BODY CONT MDL
51 36780-72KF0-000 BOX ASSY,JUNCTION
51 36780-72KF2-000 Box set,j/b & bcm
51 36780-72KF4-000 BOX SET,J/B&BODY CONT MDL
51 36780-72K10-000 BOX ASSY,JUNCTION
51 36780-72K12-000 Box set,j/b & bcm
51 36780-72K14-000 BOX SET,J/B&BODY CONT MDL
51 36780-72K00-000 BOX ASSY,JUNCTION
51 36780-72K01-000 Box assy,junction
51 36780-72K03-000 BOX SET,J/B&BODY CONT MDL
51 36780-72K90-000 BOX ASSY,JUNCTION
51 36780-72K92-000 Box set,j/b & bcm
51 36780-72K94-000 BOX SET,J/B&BODY CONT MDL
51 36780-72KB0-000 BOX ASSY,JUNCTION
54 09481-20501-000 FUSE(20A)
55 09481-25501-000 FUSE(25A)
57 08316-1008A-000 NUT - Nut, idle gear shaft
63 32810-58J00-000 SENSOR ASSY,CURRENT
64 36653-62J00-000 BRACKET,ENG HARN APRON
66 36639-74F00-000 DIODE
67 36843-57K00-000 WIRE,BUMPER
68 36651-79J60-000 BRACKET,ENG HARN HOOK
70 36651-57K00-000 BRACKET,ENG HARN INTAKE
72 36691-63J00-000 WIRE,A/B
73 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
