| 04111-3020A-000 |
PIN |

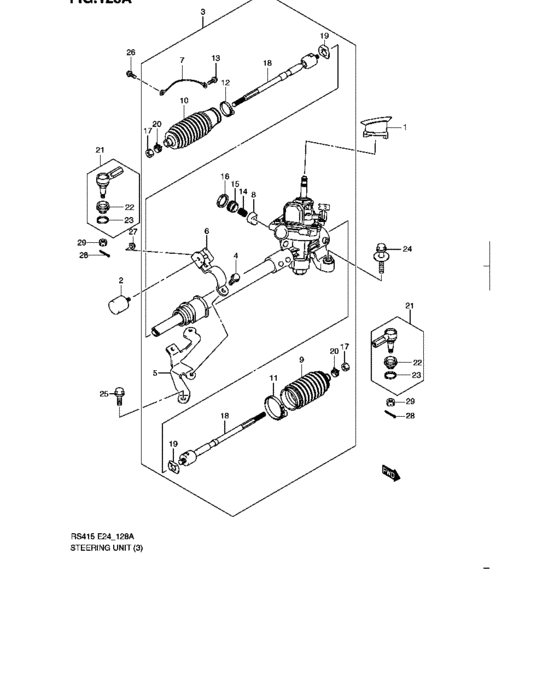

Steering unit (TYPE 3:LHD:4WD) |
| 08314-4012A-000 |
NUT |
Steering unit (TYPE 3:LHD:4WD) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Steering unit (TYPE 3:LHD:4WD) |
| 09103-10216-000 |
BOLT(10X20) |
Steering unit (TYPE 3:LHD:4WD) |
| 09115-06008-000 |
BOLT(6X16) |
Steering unit (TYPE 3:LHD:4WD) |
| 09401-23402-000 |
CLIP |
Steering unit (TYPE 3:LHD:4WD) |
| 48315-63J30-000 |
DAMPER,STEERING GEAR BOX |
Steering unit (TYPE 3:LHD:4WD) |
| 48451-73K80-000 |
GROMMET,STEERING GEAR CASE |
Steering unit (TYPE 3:LHD:4WD) |
| 48523-63J00-000 |
BOLT,BRACKET |
Steering unit (TYPE 3:LHD:4WD) |
| 48527-63J00-000 |
BRACKET,GEAR RACK SIDE NO.1 |
Steering unit (TYPE 3:LHD:4WD) |
| 48528-58J00-000 |
BOLT,STRG PINION SIDE |
Steering unit (TYPE 3:LHD:4WD) |
| 48529-63J00-000 |
BRACKET,GEAR RACK SIDE NO.2 |
Steering unit (TYPE 3:LHD:4WD) |
| 48531-63J00-000 |
WIRE,EARTH |
Steering unit (TYPE 3:LHD:4WD) |
| 48534-63J00-000 |
PLUNGER,STEERING RACK |
Steering unit (TYPE 3:LHD:4WD) |
| 48571-63J00-000 |
BOOT,STEERING PINION SIDE |
Steering unit (TYPE 3:LHD:4WD) |
| 48572-63J00-000 |
BOOT,STEERING RACK SIDE |
Steering unit (TYPE 3:LHD:4WD) |
| 48575-63J00-000 |
BAND,PINION SIDE |
Steering unit (TYPE 3:LHD:4WD) |
| 48576-63J00-000 |
BAND,RACK SIDE |
Steering unit (TYPE 3:LHD:4WD) |
| 48577-63J00-000 |
Bolt |
Steering unit (TYPE 3:LHD:4WD) |
| 48580-73K81-000 |
Box assy,steering gear |
Steering unit (TYPE 3:LHD:4WD) |
| 48580-73K83-000 |
BOX ASSY,STRG GEAR |
Steering unit (TYPE 3:LHD:4WD) |
| 48591-63J00-000 |
SPRING,RACK PLUNGER |
Steering unit (TYPE 3:LHD:4WD) |
| 48592-63J00-000 |
PLUG,ADJUSTING |
Steering unit (TYPE 3:LHD:4WD) |
| 48593-63J00-000 |
NUT,PLUG |
Steering unit (TYPE 3:LHD:4WD) |
| 48800-60810-000 |
Boot Set |
Steering unit (TYPE 3:LHD:4WD) |
| 48810-60J00-000 |
END,STEERING TIE-ROD |
Steering unit (TYPE 3:LHD:4WD) |
| 48817-63J00-000 |
NUT,TIE-ROD END LOCK |
Steering unit (TYPE 3:LHD:4WD) |
| 48819-60B00-000 |
BOOT SET |
Steering unit (TYPE 3:LHD:4WD) |
| 48819-60B01-000 |
Boot Set |
Steering unit (TYPE 3:LHD:4WD) |
| 48830-63J00-000 |
TIE-ROD,STEERING |
Steering unit (TYPE 3:LHD:4WD) |
| 48841-63J00-000 |
WASHER,TIE ROD LOCK |
Steering unit (TYPE 3:LHD:4WD) |
| 48871-63J00-000 |
CLAMP,BOOT |
Steering unit (TYPE 3:LHD:4WD) |
